For adblue adblue gas station filling module with PIUSI filter Italy, Volyn region.

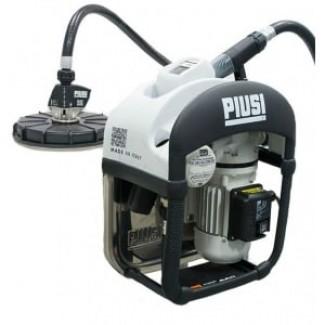

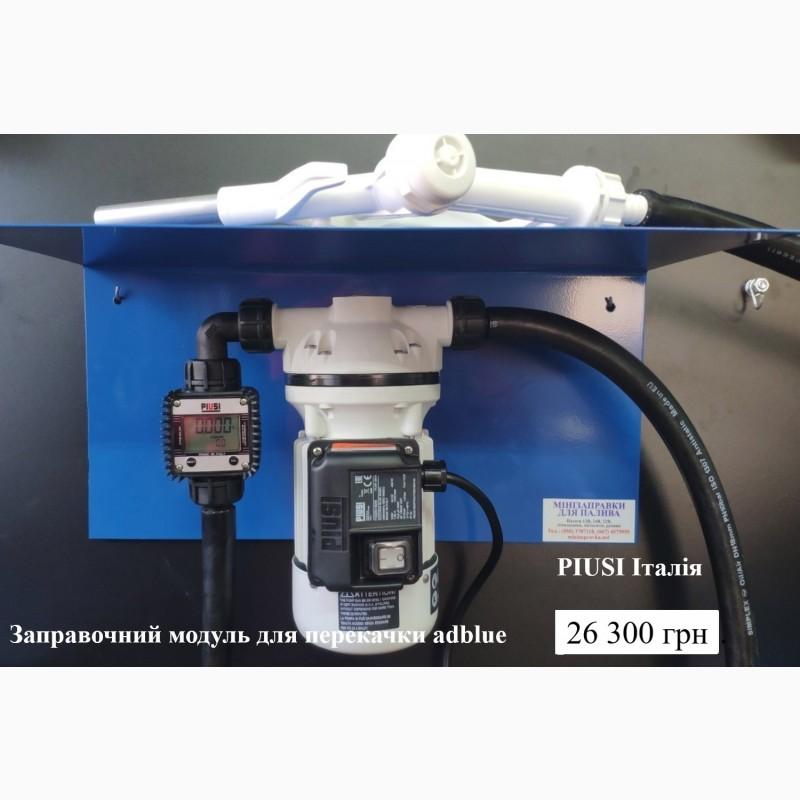

Filling unit for adblue urea (top connection) with a filter and a built-in counter on the gun, PIUSI THREE25 + SB325 METER + SEC F00101010 (Italy)

The meter can be mounted in the meter, or near thepump .

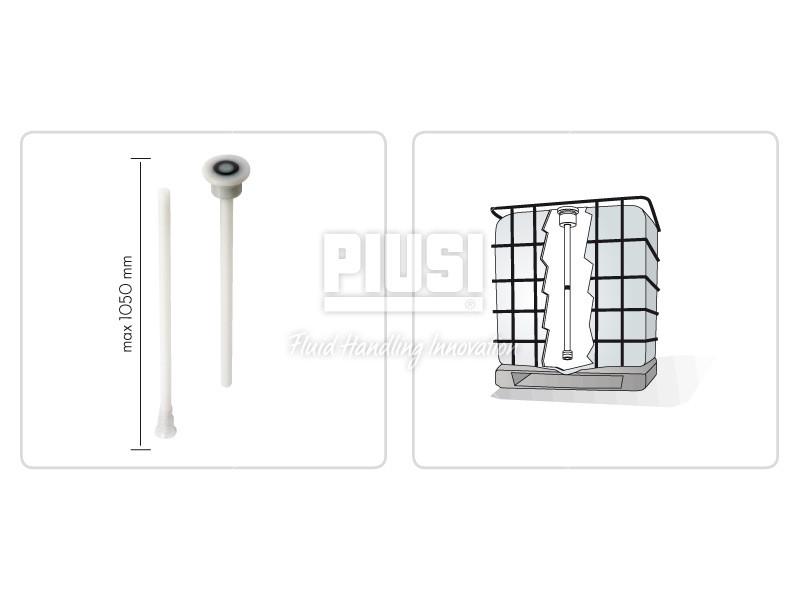

ADDITIONALLY, IT IS POSSIBLE TO COMPLETE: TELESCOPIC TUBE IN EUROCUBE ( UAH 2400 )

Type of pumped liquid: urea (AdBlue)
Power supply: 220V
Productivity: 34 liters per minute.
Place of installation: on a Eurocube crate (IBC container), any one
( SEC connector for plastic connections, or alternatively the new PDC connector for fast and reliable connection to IBC tanks with stainless steel connections )
Body: open
(sturdy stainless steel construction and protective tubular frame)
Presence of a counter: yes
Counter type: electronic
Resettable scale capacity: 99,999 liters
Accumulator scale digit: 999999 liters
Counter error: 1%
Possibility of counter calibration: Yes
Operating temperature range: from – 10 to + 50 °С
Pump self-priming: Yes
Bypass valve in the pump: Yes
Fine cleaning filter included: yes ( three-dimensional filter AdBlue® )
Split price: 0.001 liter
Time of continuous operation: up to 20 minutes.
The maximum time of operation in bypass valve mode: 2 - 3 min.
Switch: with light indicator
Warranty: 12 months
Dust protection class: IP 55
Number of revolutions per minute: 1450
Power cord length: 2 meters
Length of dispensing sleeve: 6 meters
(pressed distribution hose made of ethylene-propylene rubber (EPDM))
Current frequency: 50 - 60 Hz
Power: 400 Watts
Suction hose: 2 meters(//tractor-service.com)
Indication of refueling speed: yes

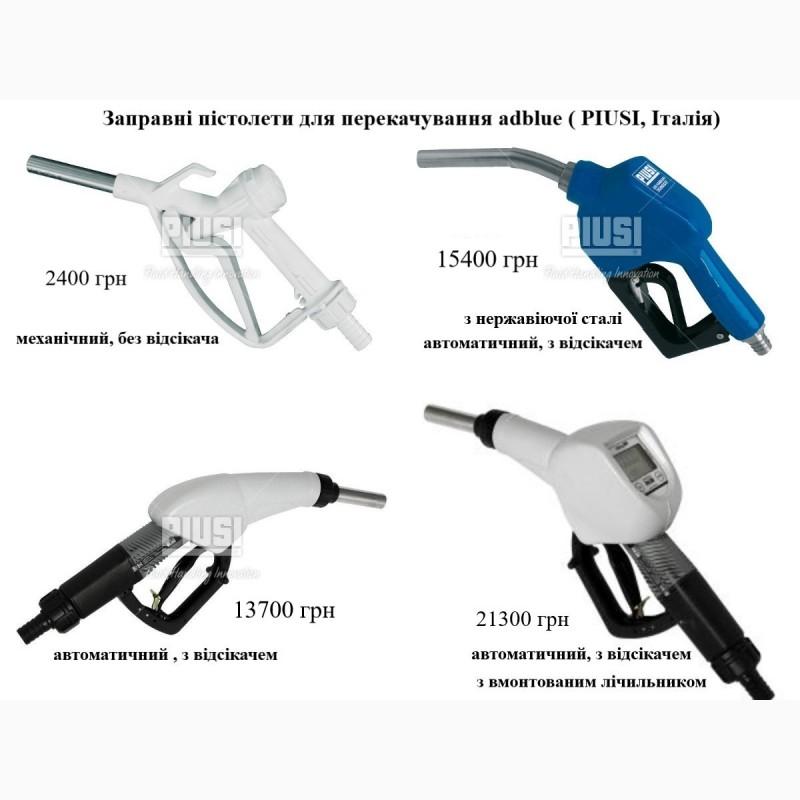

Type of gun: automatic (SB325 - meter automatic gun with breakaway clutch and stainless steel muzzle)
Mounting bracket: included
Sleeve diameter: 3/4 in. (19 mm. )
Gun holder: yes ( roomy and strong hose hanger and convenient dispensing gun holder)
Barrel Adapter: Yes, Top Connection
ADDITIONALLY, IT IS POSSIBLE TO COMPLETE: (RECOMMENDED) TELESCOPIC TUBE IN EUROCUBE ( UAH 2200 )

This is a unique product on the market.

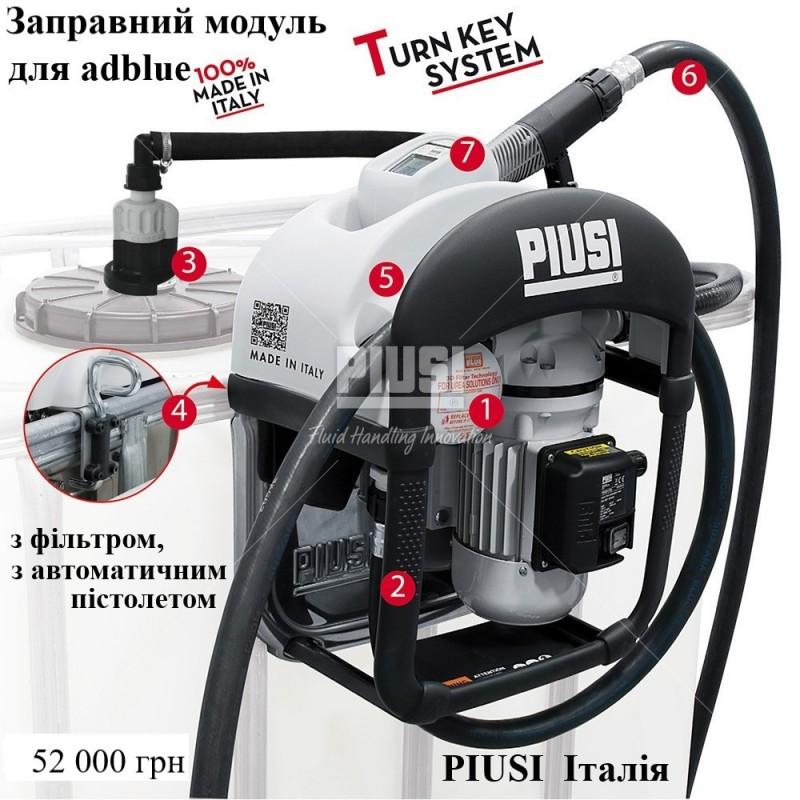

1. Three-dimensional filter AdBlue®
2. Sturdy stainless steel construction and protective tubular frame.
3. SEC connector for plastic connections, or as an alternative, the new PDC connector for fast and reliable connection to IBC tanks with connections from
stainless
steel
6. Pressed distribution hose made of ethylene-propylene rubber (EPDM)
7. New automatic pistol SB325/SB325 – meter with breakaway clutch and stainless steel nozzle

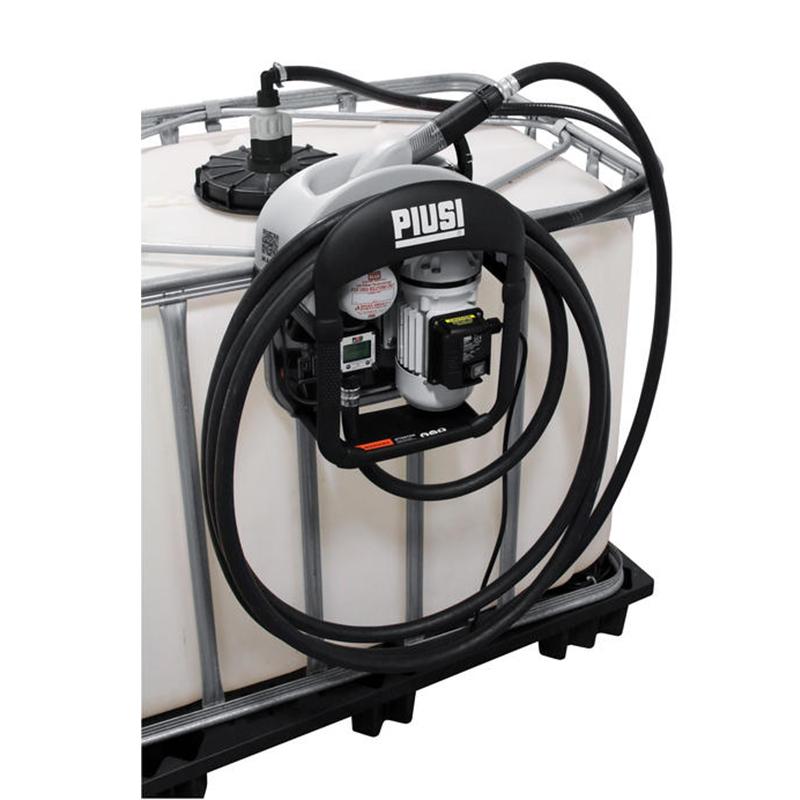

Professional Italian equipment for refueling equipment with urea is used mainly at industrial enterprises, car service centers and gas stations. The model is installed on the grating of an IBC container or another stable surface using a special adapter, the connection is upper.

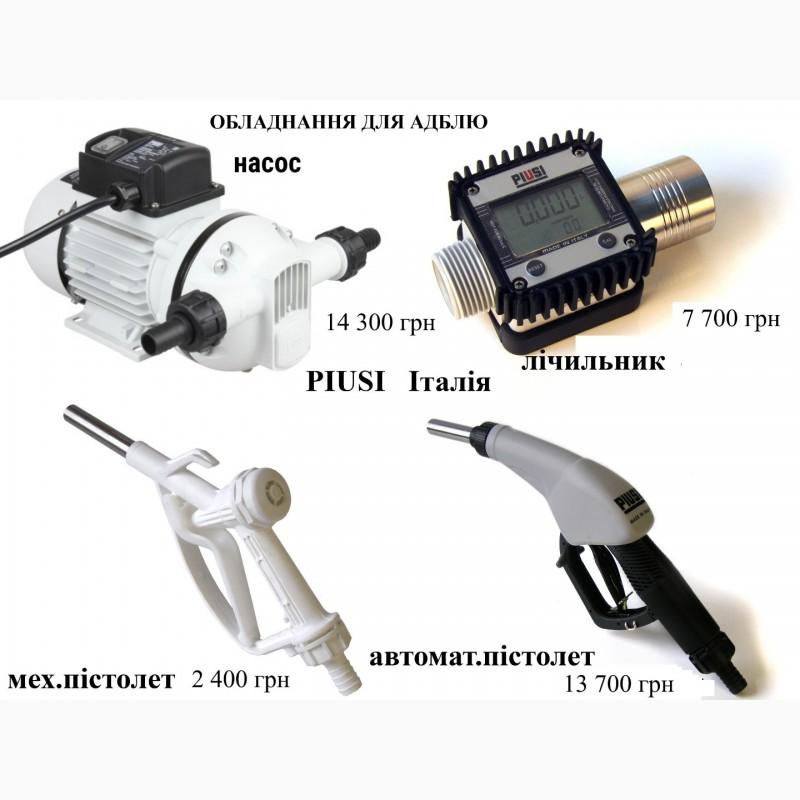

The PIUSI Three25 + SB325 Meter + SEC dispensing kit includes: electric pump, flow meter, suction and dispensing hoses, filter and gun. The construction is made of stainless steel, which does not break down under the influence of an aggressive liquid.

The pump is powered by a 220 volt voltage source - a standard stationary outlet. The speed allows you to pump up to 34 liters of urea per minute, the time of continuous operation is 20 minutes. The built-in bypass valve ensures the circulation of the solution in the case during short-term stops in its supply.

The electronic flow meter, which is equipped with the kit for distribution, records the urea dispensed for one or all of the completed refueling operations. Consumption data is displayed on the meter's LCD display, its error is 1%.

The model functions perfectly in any weather, but at -10 degrees the meter stops displaying its readings. The weight of the refueling unit is less than 15 kilograms, which makes it quite easy to transport it to the place of operation.

PIUSI Three25 + SB325 Meter + SEC is equipped with an automatic gun, so the fueler does not need to constantly monitor the work process. A convenient gun holder is provided on the body of the handout kit.

Before entering the working system, the reagent enters the fine cleaning filter, where it removes foreign impurities. The IP 55 class system protects equipment details from the negative effects of moisture anddust.
