Top-5 new grain harvesters for the farmer
Harvesting of grain, leguminous, cereal and technical crops is the final stage in the entire process of their cultivation. And in order for harvesting to take place at the optimal time, farmers need to have a suitable fleet of modern grain-harvesting equipment.
Grain-harvesting combines of most foreign companies are universal. They can be used to harvest almost all grain and oil crops, as well as seeds of grasses and small-seeded crops (rapeseed, millet, and others).
Let's consider models ofgrain harvesters, which will be relevant for domestic farmers this year and in the near future. These combine harvesters use technical solutions that increase productivity, increase yield and improve the quality of harvesting bread.
John Deere
For work in the fields of farms, the companyJohn Deere offers combine harvesters model W540. They are equipped with engines with a working volume of 6.8 liters with a turbocharging system, which develop a nominal power of 255 hp.
The threshing and separation systems of these combines use aclassical threshing system in the form of a threshing drum and a 5-key straw shaker. The threshing drum with a diameter of 660 mm and a width of 1670 mm with 10 bales and a large angle of the under-drumming provide high threshing productivity, and also allows soft threshing of crops at the optimal drum rotation frequency. The basic configuration of the thresher is equipped with a universal drum for all crops. The drumming area is 1.8 m.2, which allows you to extend the duration of threshing and carry out better separation of the grain pile.

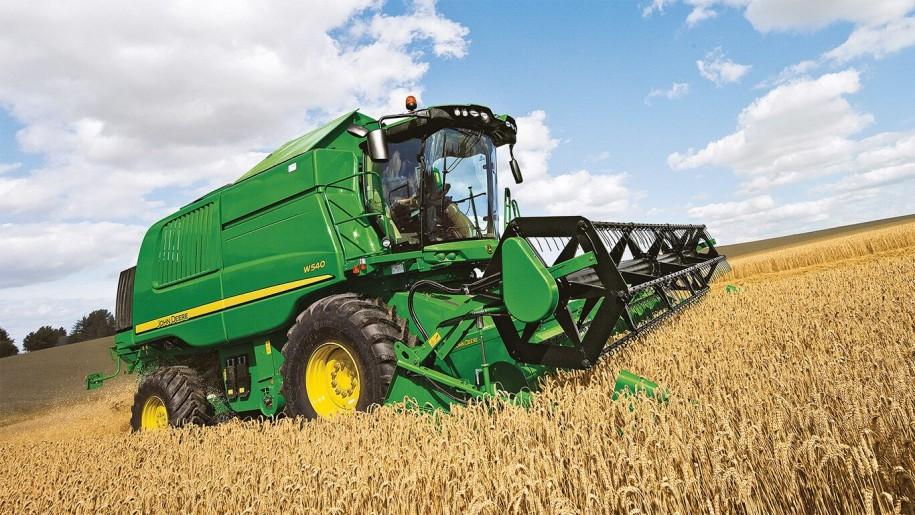

John Deere W540 combine harvester in operation.
Model description on the manufacturer's website at https://www.deere.ua/
The feature of the threshing and separation systems of W540 combines is the presence of a finger separator. The use of such an additional separating mechanism significantly improves the process of separating grain from straw in conditions of high mass humidity. With the help of fingers, the compacted wet mass is stirred, thereby releasing the grains that remained in it. In the non-working zone, the fingers of the separator are hidden, which eliminates the possibility of winding the material on the finger separator.
The keys of the 4.6 m long straw shaker have an 11-step design, thanks to which intensive separation of the grain-straw mass is ensured. The area of the straw shaker keys is 8.76 m.2. The rotation frequency of the crankshafts of the straw shaker of 150 rpm and a stroke of 150 mm ensure the maximum lowering of the straw, which ensures the efficiency of separation.
Auger conveyors evenly distribute the grain pile on the sieve of the cleaning system, even when working on slopes, increasing the overall productivity of the entire grain cleaning system. The fan has a frequency of rotation from 750 to 1600 rpm, and easily copes with even the largest flow of mass on the grate bed.
The system of processing the non-grain part of the crop creates a close contact of the straw with the knives, which improves chopping. During the operation of the shredder, 4 rows of knives ensure high-quality shredding of straw. Changing processing modes is carried out using a lever. Spreading of post-harvest residues occurs evenly over the width of the harvester grip even with a side wind.
Distinctive features of the W540 combine harvesters are reliability and ease of maintenance, high power, fuel economy and the ability to harvest a wide range of crops. It is these factors that farmers pay attention to when choosing W540 combines.
Sales of new and used John Deere combines
New Holland Agriculture
For small volumes of harvesting work, the companyNew Holland Agriculture offers combine harvesters TC series, which efficiently harvest a wide range of crops in a variety of conditions. Many years of experience in using this series and the innovative ideas implemented in its work define this combine as one of the best in its class. The TC5.90 model with five keys is the most popular, although the TC5.70 and TC5.80 are also available, as well as the four-key TC4.90.
The IVECO 6.8 Common rail diesel engines are installed on the TC5.90 combines, which develop a nominal power of 241 hp at a crankshaft speed of 2100 rpm.

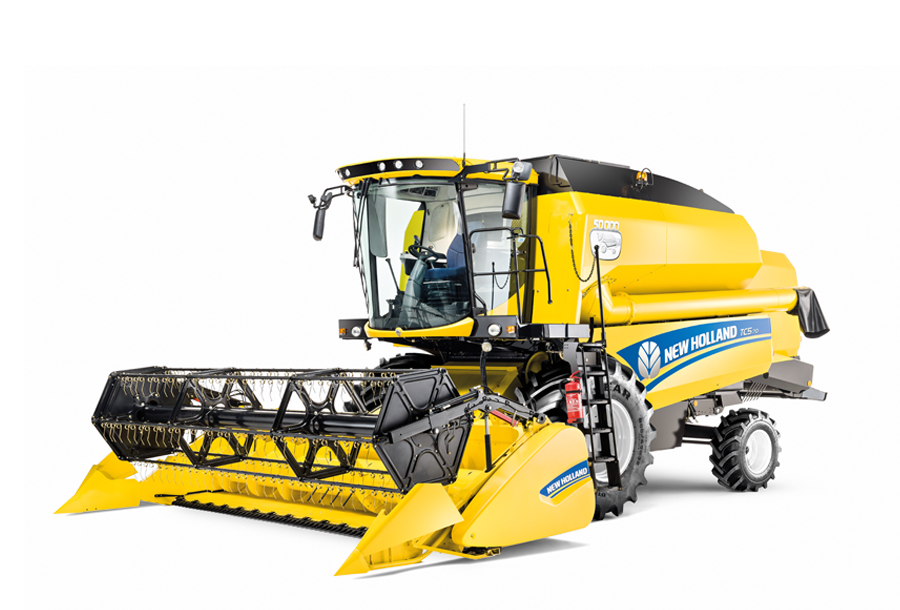

New Holland Agriculture TC5 series combine harvester
Description of the models of this series on the manufacturer's website at
https://agriculture.newholland.com/
Harvesters are equipped with high-performance classic grainharvesters of the High-Capacity model series (grabbing width 3.96, 5.18 and 6.10 m) as well as Varifeed reinforced design harvesters (4.88, 5.48 and 6.10 m wide) with adjustable cutting position the device, which will ensure clean cutting of the harvested crop and optimal feeding of the mown mass under any working conditions.
On TS5.90 models, threshing is carried outthreshing drum with a diameter of 607 mm and a width of 1300 mm with 8 bales. The drum rotation frequency can vary from 430 to 1070 rpm. The area of the drum is 0.79 m2, and the angle of the girth of the drum is 1100. The total cleaning area is 4.32 m.2.
The two-stage grating condition improves the throughput and quality of the cleaning system. It has a 450 mm pre-cleaning sieve inclined at a large angle and a 6-blade fan with an adjustable rotation speed within the range of 340 - 970 rpm, which effectively separates chaff and short straw from the grain mass before it reaches the lower and upper sieves.
Smart Sieve technologies thought out to the smallest detail compensation of the side tilt of the combine) and Opti-Fan (speed of the fan depending on the angle of inclination of the combine) ensure high-quality grain cleaning when working on slopes and allow to increase work productivity by up to 25%.
After harvesting, the straw is placed in a windrow or evenly distributed on the field. The swath after the harvester is easily picked up by any baler. In the event that straw collection is not planned, a fully installed Dual-Chop straw chopper is provided, which thoroughly chops straw to accelerate its mineralization.
If the farm uses precision farming technologies, the combine can be equipped with the widely recognized EZ-Pilot automatic driving system with RTX signal correction.
The characteristic feature of TS5.90 combines is convenience and at the same time high reliability of control over work of the harvester. A convenient multifunctional lever allows the operator to effectively control all the main functions of the unit.
New and used New Holland combine harvesters for sale
CLAAS
CLAAS combine harvester AVERO 160 is an ideal machine for small and medium-sized farms that rely only on their own resources for harvesting. Combines are aggregated with harvesters with a width of 3.71, 4.32 and 4.92 meters.
AVERO 160 combines are equipped with reliable and economical PERKINS 1206 F-E70TA engines with a capacity of 158 hp, which ensure long-term and productive operation. AVERO 160 meets the Stage IV (Tier 4) toxicity standard.

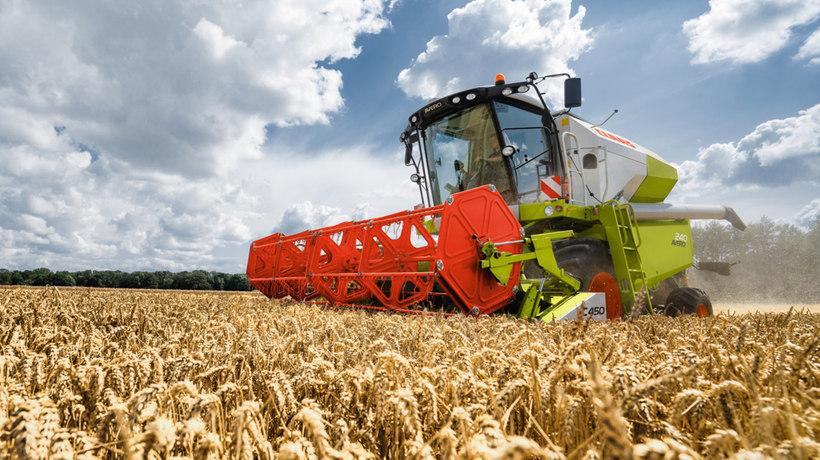

CLAAS AVERO 240/160 combine harvester
Description of models of this series on the manufacturer's website at https://www.claas.ru/produktsiya/zyernouborochnyye-kombajny/avero240-160-2017
Aclassical thresher is used on combine harvesters CLAAS - APS threshing system, which efficiently performs threshing and separation under any working conditions. The width of the thresher is 1.06 m. Thanks to APS, 90% of the grain is separated from the straw. For the remaining 10%, four straw shakers with four cascades are enough. The AVERO 160 has the same performance as a similar machine with 5 straw walkers without APS, while maintaining the compact dimensions of a 4 walker machine.
Small threshing drum: its diameter is 450 mm. MULTICROP drumming located under the threshing drum makes it easy to replace its individual segments. The angle of girth by drumming the threshing drum is quite significant - 1170. The combine can quickly adapt the drumming to a wide variety of crops, and as a result, get an optimal combination of clean threshing, careful processing of plant mass and high efficiency of separation. Adjustment of the gaps between the drum and the drum is carried out from the cabin.
The functions of a coarse pile separator are performed by a straw shaker, the length of which is 3900 mm. Four cascades are located along the entire length of the straw shaker, and serve to ensure minimal losses. The working area for separation is 4.13 m.2. In addition, the straw is intensively shaken by the controlled fingers of the exciting mechanism. The finger on top vigorously grabs the straw above each key of the straw shaker. Thanks to this, the remaining grains easily fall out of the straw.

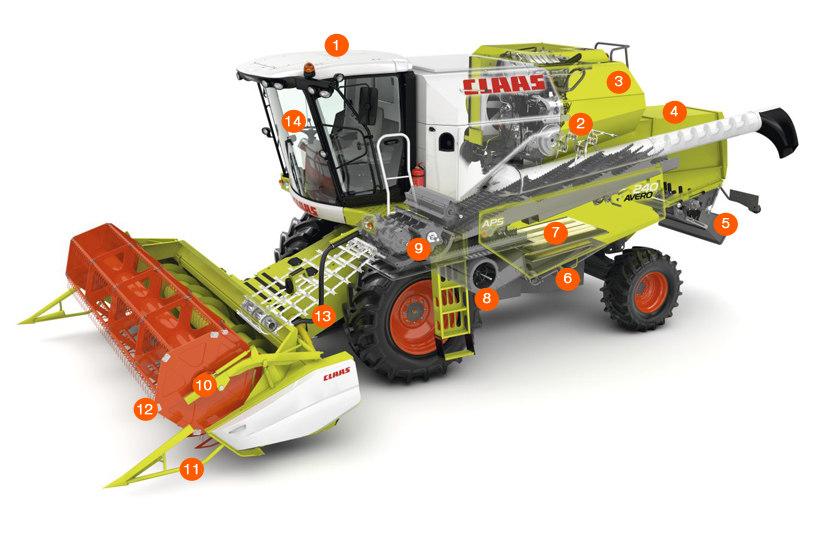

The Slaas company considers it necessary to illustrate the design of the combine with the following diagram for the AVERO 240 / 160 model, where:
1 comfortable cabin
2 intensive straw shaker
3 Perkins engine
4 PROFI CAM
5 straw chopper
6 cleaning 3D
7 open keys of straw shaker
8 centrifugal fan
9 APS (AVERO 240)
10 hydrovolume drive of the reel
11 folding stem splitter
12 table VARIO
13 multifunctional connector
14 CIS
Traditional louver type sieves are used in the grain cleaning system. The area of the two-lattice state is 3.0 m.2. Centrifugal fan. The frequency of its rotation is changed with the help of an electric drive.
Thanks to the gentle threshing and separation process, the structure of the straw is completely preserved, which is important for obtaining high-quality litter. When the straw chopper is turned off, the straw is laid in rolls. If straw is used as fertilizer, then the Standard Cut straw chopper, which has 40 knives, is used.
Farmers prefer AVERO 160 combines due to high reliability in operation, as well as the presence of the APS system, which provides an increase in throughput up to 20%, while reducing fuel consumption.
Sale of new and used CLAAS combines
Massey Ferguson
For profitable and efficient harvesting, the companyMassey Ferguson offers Ukrainian to farmers combine harvesters MF 7347S Activa, which allow harvesting a wide range of crops, from grass grains and bread cereals to corn, soybeans and sunflowers.
High productivity of combines is achieved thanks to reliable and powerful AGCO SISU POWER engines with a working volume of 7.4 liters. These engines are equipped with an electronic control system. At a crankshaft frequency of 2200 rpm. they develop a power of 276 hp. A centralized radiator system provides water and air cooling of the engine.

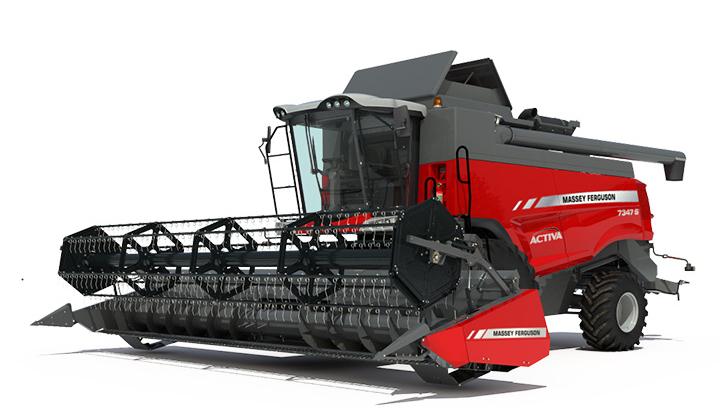

Grain harvester MF 7347S Activa
Description of the models of this series on the manufacturer's website at http://int.masseyferguson.com/mactivas.aspx
The transmission of the MF 7347S Activa combines is a 4-speed hydraulic unit that maintains the required speed and provides the traction necessary for a flexible harvesting process.
The harvesters of the MF 7347S Activa combines are designed with a wide range of crops in mind. Combine harvesters are equipped with single-cut harvesters for harvesting grain, leguminous crops, and rapeseed. Excellent cutting at high speeds occurs thanks to the Schumacher scythe drive mechanism - up to 1220 cutting movements per minute. A wide selection of header sizes - from 5.4 to 7.6 m. In addition to grain headers, for direct harvesting, combines are equipped withroll pick-ups, as well as 6-rowcorn adapters.
The threshing drum has a width of 1600 mm and a diameter of 600 mm, and its speed revolutions can be adjusted in the range from 430 to 1310 rpm. The area of the drum is 0.99 m.2. A grid with an uneven cross-section is used in drumming. The sieve openings in the rear section of the drum are half as large as the openings in the front section, thereby creating an optimal balance between the functions of threshing and movement of grain through the drum.
Six-key straw shaker has a separation area of 9.06 m2. The vertical sections of the straw shaker levels are made in the form of stamped sieves, as well as the horizontal sieves. This provides an additional open surface for more efficient grain separation.
The shaking board is equipped with high partitions in order to minimize the movement of grain across the grain catcher on bumps. The fan has a rotation frequency of 350 - 1050 rpm, and is regulated with the help of an electric unit, guaranteeing excellent grain quality under any conditions. The total area of the sieve is 5.81 m.2.

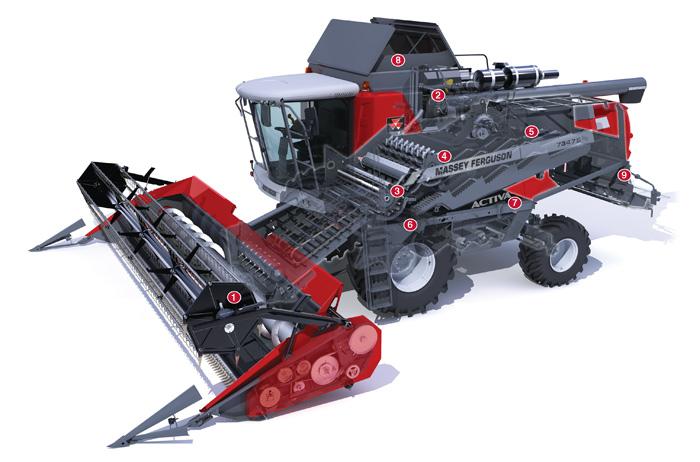

The MF 7347S Activa combine harvester
(photo by AMACO https://amacoint.com/):
1. The ability to choose a header optimal for your culture and soil - FreeFlow or PowerFlow
2. The basis of the combine was extremely economical AGCO POWER engines, which correspond to Tier 2 emission standards.
3. Equipped with a strong high-inertia drum and reinforced drumming, Massey Ferguson combines can easily handle almost any culture.
4. When using a rotary separator (MCS), the operator can adjust the combine to any crop conditions
5. The long keys of the straw shaker consist of four steps with a height of 21 cm, active walls and perforated grates, which allows you to easily separate the grain during separation.
6. Cleaning of threshing products takes place on a long shaking board with high dividers, thanks to which the material is distributed evenly even when working on slopes.
7. High-performance sieves guarantee a quick and clean passage of the mass and obtaining exceptionally clean grain at the exit, which is a characteristic feature of this combine
8. The large capacity of the grain hoppers (8600 l) is combined with an impressive unloading speed of 85 l/s, the unloading auger with a length of 4.5 m guarantees easy unloading even when using trailers with high sides.
9. The straw chopper and straw spreader together provide an even distribution of straw of the optimal size for its introduction into the soil with minimal tillage, but are installed optionally.
The advantage of the MF 7347S Activa combines is the relatively high engine power for this class of machines (276 hp), which allows them to be used both in the fields of farmers and much larger farms. In addition, having such a harvester, a farmer can harvest in his own field, and then provide services to his neighbors.
Sales of new and used Massey Ferguson combines
Sampo Rosenlew
Sampo Rosenlew (Finland) offers Ukrainian farmers grain harvesters of the SOMIA series, which are manufactured in five models - C4, C6, C8, C10 and C12.
SOMIA combines are known for their originalharvester. Due to the fact that the harvesters are equipped with a reel of large diameter, the distance between the scythe and the auger of the harvester is large enough, which is necessary for working with long-stemmed crops. The operator controls a wide range of adjustments of the header from the cab. The harvesters have a working width from 3.1 to 5.7 m. The grain harvester has an easy installation system and fully hydraulic control. Plastic fingers of the reel and hydraulic drive of the reverser ensure stability in operation.

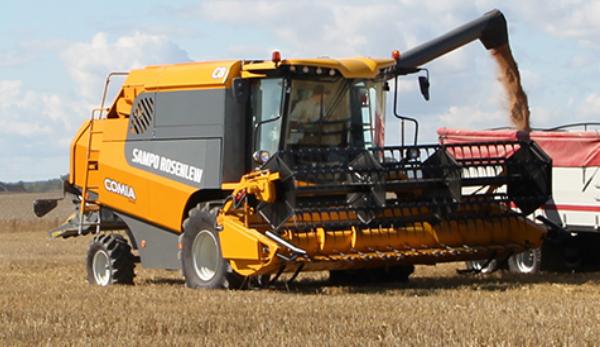

Sampo Rosenlew model COMIA in operation
Description of the models of this series on the manufacturer's website at http://www.sampo-rosenlew.fi/ru/produkcia/ze-/model-nyj-rad-comia/model-nyj-rad-comia-.html
Fast and thorough threshing is provided by a threshing drum of increased strength with a diameter of 500 mm and 8 blades. The width of the thresher is 1.12 m. The use of two types of drumming is provided - grain and universal.
Separation of the threshed grain-straw mass takes place on a four-stage key straw shaker. The steps of the straw shaker have a steep slope, and the side panels are strongly serrated, which increases the quality of separation. The number of straw shaker keys on the C 4 models is four, and on the C 6 and C 8 combines – five, and on the C 10 and C 12 – six.
The total working surface of the sieves of the grain cleaning system is about 4 m.2. The upper sieve has its own characteristic design. The thresher is equipped with a straw chopper-spreader. That is, if necessary, the straw can be chopped and scattered on the field or placed in a windrow.
SOMIA series Sampo combines are equipped with SisuDiesel diesel engines of various capacities, adapted to non-European quality fuel. The cooling system of the combines is strengthened with the help of additional fans. The air return system ensures a constant flow of clean air. A belt-driven fan located outside the radiator provides effective cooling.
SOMIA series combines are light and easy to use. They are equipped with a three-speed hydrostatic gearbox with stepless gear shifting. The hydrostatic drive provides a working speed of up to 7.5 km/h, and a transport speed of up to 20 km/h. For work in wet terrain, it is also possible to install all-wheel drive on all wheels.
Sampo Rosenlew combines are traditionally created for harsh Finnish operating conditions. They easily withstand adverse weather conditions, changes in the humidity of the grain mass, loads, and temperature fluctuations. These machines don't have super high performance or throughput. They are designed for use in small and medium-sized farms and experimental plots. And in terms of reliability, harvesting quality and minimal losses, these combines correspond to the best world samples. It is thanks to these factors that they won the favor of Ukrainian farmers.
In conclusion
Grain harvesters for farms do not differ in any significant way from their "older brothers" - more powerful, with a larger harvester width and higher throughput. But smaller combines also have their advantages - they are more agile and maneuverable, which is very important when working on small areas.
Due to the fact that the loading of small combines is much less compared to large ones, their resource is much greater, and with skillful use, farm combines can be intensively operated for at least 20 years. This is confirmed by the harvesters of European farmers, which have been working successfully for several decades.
