Seed treater PS-10A; PS-10 (AM), Zaporizhia region.

Maintenance and storage of PS-10A pickling agent

During operational run-in, it is necessary to carry out deconservation, check the reliability of the attachment of the flange of the seed disk and the cleaner, as well as the oil level in the gearbox. To check the tightness of communications, pour 20 liters of water into the tank and, during running-in, eliminate existing leaks.
He will check the interaction of the moving and rotating elements of the machine, and if there are any knocks, he will eliminate them. During the final break-in, check and tighten all screw connections of the electrical wiring.
All components must be lubricated according to the scheme.

During daily maintenance, it is necessary to clean the machine from dust and dirt, check the completeness and condition of the machine components, and, if necessary, tighten the threaded connections. It is necessary to wash the tank and communications supplying the working solution daily. To wash the tank, after finishing work, pour 20 liters of water, rinse and drain the rest through the drain tap.
(//tractor-service.com)
The PS-10A etchant can work in manual or automatic mode. In manual mode, the etchant is often adjusted, the tank is filled with water and maneuvered.
Etching in automatic mode occurs when the machine moves along the side.
The movement of the mordant and control over the technological process are carried out with the help of sensors of the upper 7 and lower 2 levels of the suspension, its supply 30 to the chamber of the upper 13 and lower 14 levels of seeds in the hopper 15.

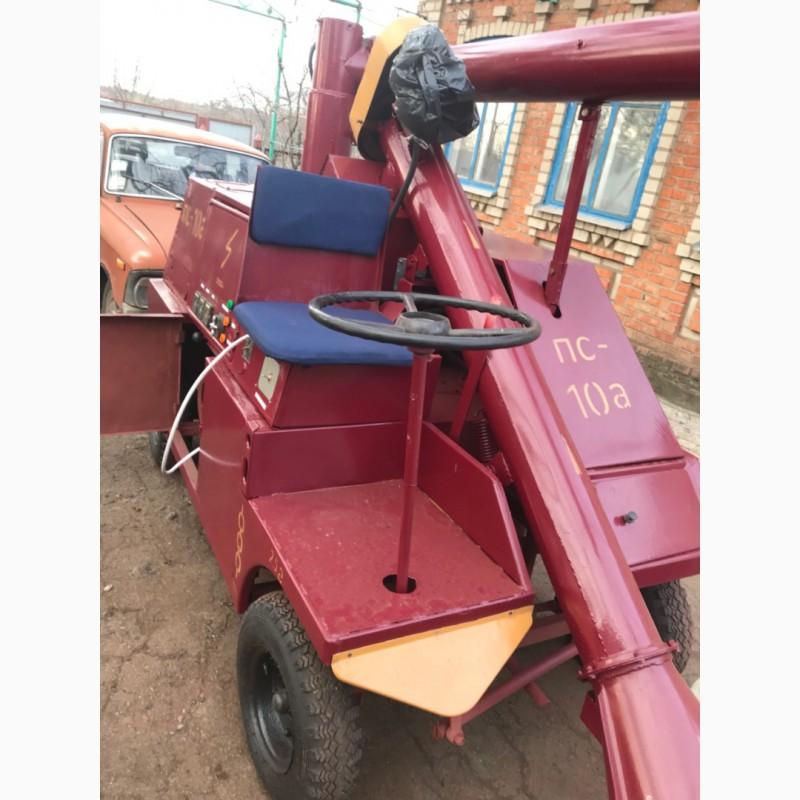

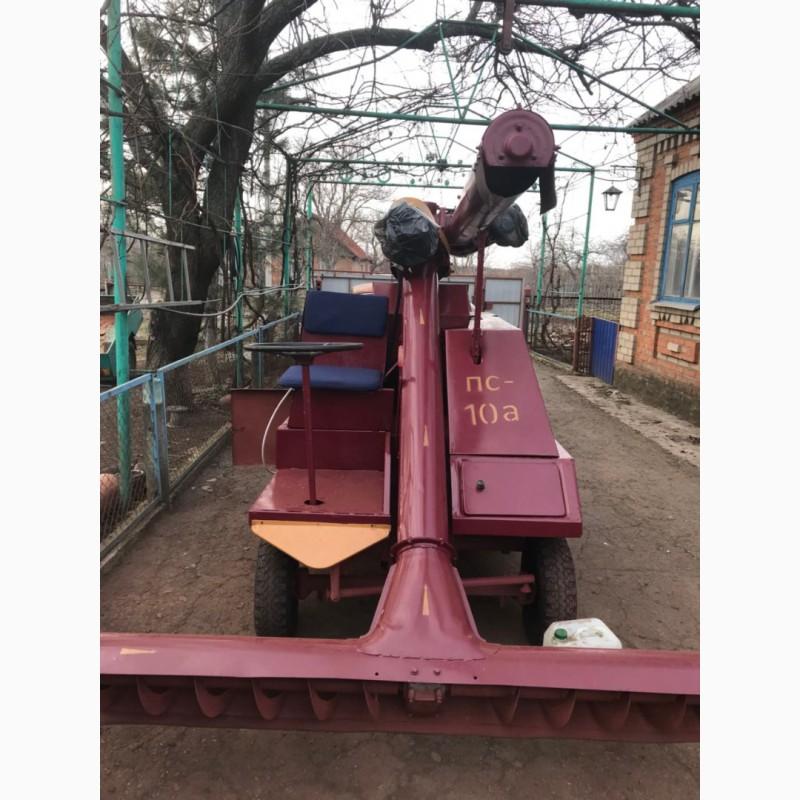

The PS-10AM universal seed treater is an automatic self-propelled plant with an electric drive for all mechanisms.
Application of PS-10AM: disinfection of seeds of various agricultural crops (cereal, leguminous, technical). For disinfection, water suspensions of drugs are used in streams and closed granaries. The supply of water suspension, seeds and the movement of the machine are synchronized.
Productivity PS-10AM: up to 20 t/h.

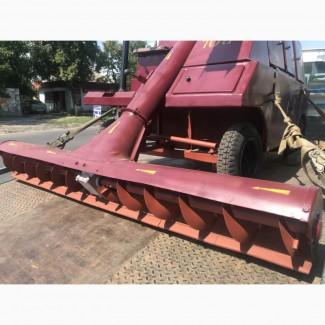

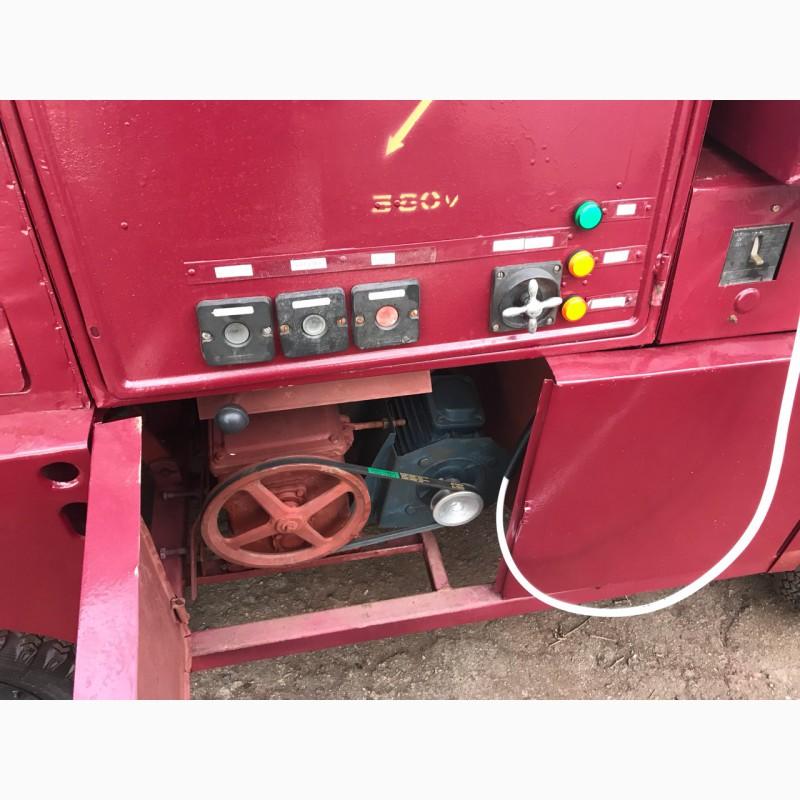

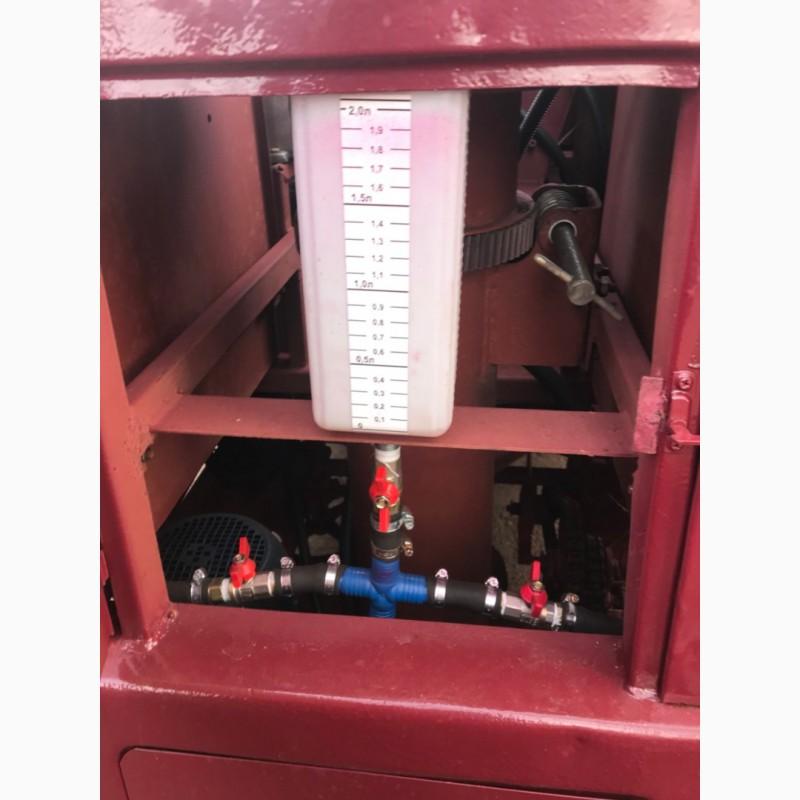

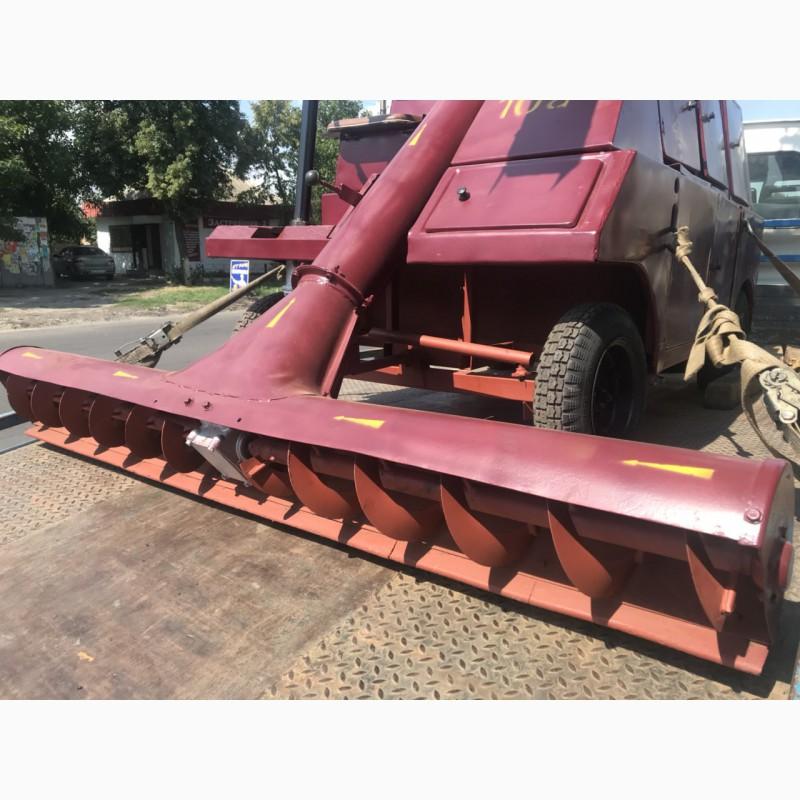

Structure PS-10AM: loading device, seed hopper, tank for working suspension with a dispenser,pump, etching chamber with sprayer of working fluid and disc for dosing and sorting seeds, camera auger, intermediate and unloading augers, control panel and self-propelled. All units are mounted on a welded frame mounted on four pneumatic tires.pneumatic tires. of activity.
