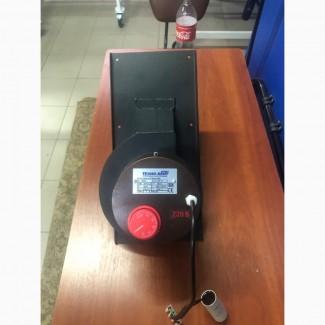

Dymosos overhead fireplace DY-3 (as well as overhead DY-2), in contrast to the DY-1 channel smoke extractor, is designed for quick installation on surfaces of brick chimneys.
Attention! No assembly work is required for disassembly or shifting of chimney elements.
An ejector smoke extractor is installed on the uninsulated part of the chimney indoors on a vertical section. The entire working part of the smoke extraction unit is located outside the chimney, the design of the overhead smoke extractor does not prevent the formation of natural draft and is not exposed to the effects of high temperatures.
The purpose of the overhead chimney hood DY-3 for fireplaces is to forcibly create a vacuum and draft in the chimney.
Eliminates problems and errors in the case of unsatisfactory smoke extraction and poor boiler draft 151тяге котла, также обезопасит ваше помещение от обратной тяги при разряжении атмосферы.
The smoke extractor is adjustable, regulation within the limits of 10 to 100%. The smoke extractor works as if on constant power (plugging into the 220V network), or it can be controlled by the boiler's automation according to performance (modulation). Low power consumption by the fan allows you to connect the smoke extractor to practically any controller with phase control of the fan power. Also, the draft can be additionally controlled by the damper (valve) of the boiler. When connecting to the network: During a cold start (ignition), it is necessary to determine the necessary direction of rotation for your type of boiler. This model has 2 working sides of rotation, both right-handed and left-handed. In the future, it is possible to change the direction of rotation to decrease/increase thrust.
It is used for installation on brick chimneys. During installation, you MUST apply thermal sealant to the installation site.
Installation of a smoke extractor:
- Clean the place of drilling/insertion on the chimney.
- Place the template on the selected section of the chimney, circle the place for drilling with a marker.
- Drill/cut a hole for installation according to the marker (size 100 mm for the inlet and 100 mm (at an angle) for the outlet). A perforator (drill) with a crown will be useful.
- Apply thermal sealant along the contour of the opening and platform of the smoke extractor.
- Place the smoke extractor in the opening, secure with screws (bolts) along the perimeter of the smoke extractor platform.(//tractor-service.com)
- Check the correct application of the sealant.
- Let the sealant dry (the drying time is specified by the sealant manufacturer).
- Connect to a 220 V network/ Connect to boiler automation.
Characteristics of overhead injection smoke extractor DY-3 for solid fuel boiler:
Working discharge/max. 160/250 Pa
Productivity working/max. 235/270 m3/h
The power consumption is 44 W
Engine speed adjustment 10-100%
Rotation speed 2575 rpm
The maximum working temperature is 350 oC.
Degree of protection IP44
Operating noise 32 dB
Network voltage 220 V/ 50 Hz
Weight 6 kg
