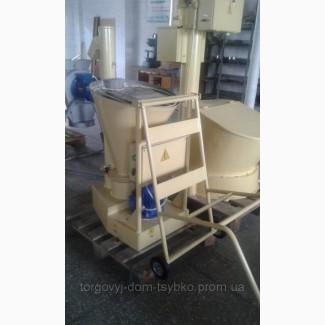

Khpa flour sifter, Cherkasy region.

The flour sifter is intended for cleaning from foreign impurities, as well as for loosening and aerating flour, which contributes to better fermentation of the dough. It is used in the enterprises of the bakery and confectionery industry. The set includes a cart for transporting flour withstorage, which simultaneously serves as a bag tipper.
The KhPA flour sifter consists of a base with a screw flour conveyor and a magnet in the flour conveyor, a centrifugal sifter, a hopper, a lift truck, a flanged electric motor with a belt drive and a control cabinet.
The base is a bent welded construction. To the base through the flange is attached a pipe with a estrus and a magnet. An auger is inserted into the pipe of the mukoprovid from above.
The centrifugal sifter consists of a drum sieve and a cleaner to prevent the dough from sticking in the sieve. The hopper is made of sheet steel and is a truncated cone, which is fastened with bolts through a flange. The trolley-elevator is used for transporting and lifting bags of flour, for filling in the hopper. The drive consists of an electric motor - 0.75 kW, 1500 rpm. and belt transmission to the sifter with a belt length of 710 mm and to a flour conveyor with a belt length of 1000 mm.
Productivity, kg/h -1200.(//tractor-service.com)
Installed capacity, kW - 0.75.
Reception bunker, kg -50.
Overall dimensions, mm -800 x 550.х1115
Mass, kg -90
