Counter for KAS, liquid fertilized SZR, ammonia water 500 l / min, Kharkiv region.

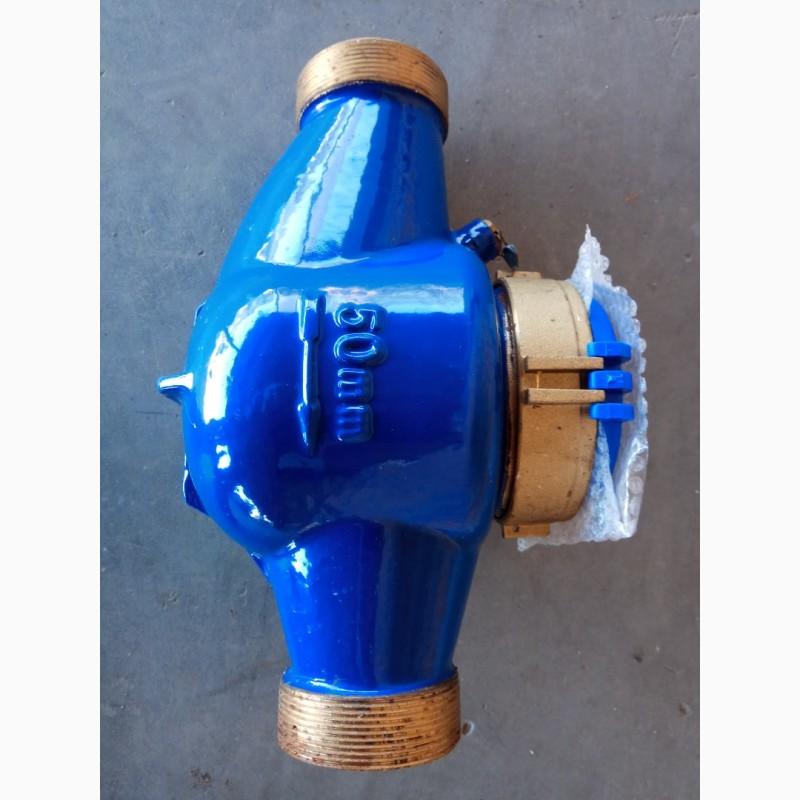

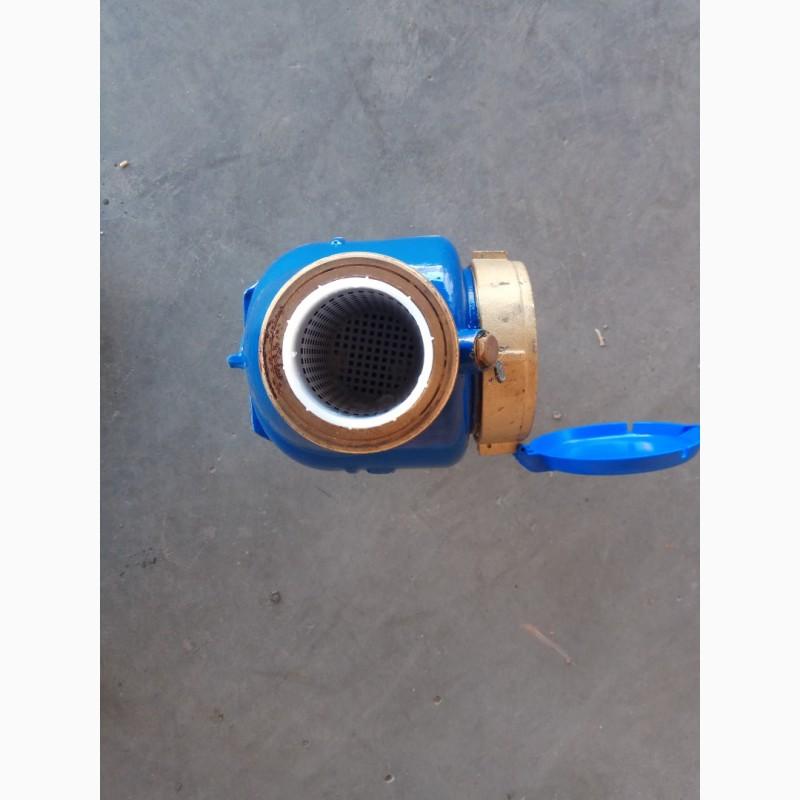

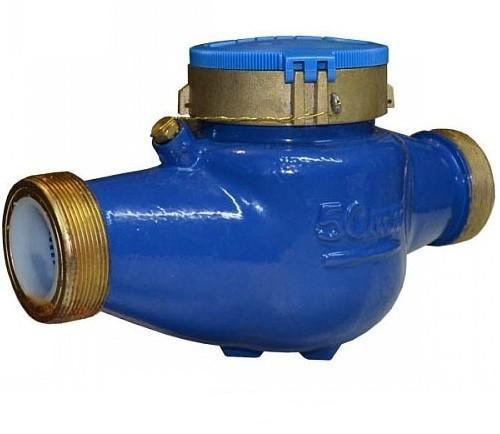

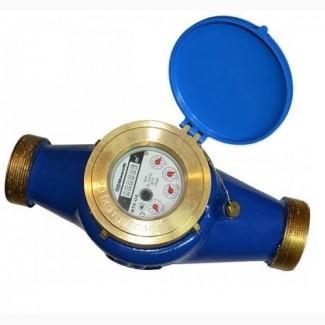

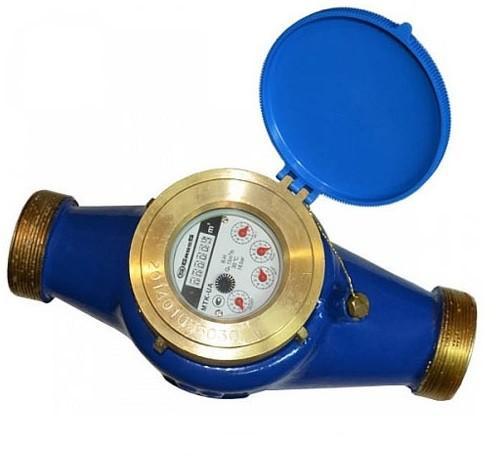

The cast-iron flowmeter is used to measure water as well as aggressive liquids such as KAS, nitrogenfertilizers, pesticides and toxic chemicals.
The transfer of rotation from the impeller to the counter mechanism is carried out by means of a magnetic clutch (dryer).

Advantages:

The counter body is made of cast iron.
The internal parts of the counting mechanism that are in contact with the liquid are made of durable corrosion-resistant materials.
Anti-corrosion coating of internal metal parts of the counter.
The counting device is isolated from contact with liquid and has a sealed design.
Protection from external magnetic influence.
Protective hinged cover.
In the production of counters, only high-quality materials are used, which ensures reliable and continuous operation of the devices.

Technical characteristics:(//tractor-service.com)

HP input/output connection: 63 mm. 2"
Maximum flow rate: 30 m³/hour.
Nominal flow rate: 15 m³/hour
Minimum consumption: 0.3 m³/hour
The maximum working pressure of the liquid: 1.0 MPa
Five-stage calculating mechanism: 99999 m³/hour
Price of division: 0.5 l
Sensitivity threshold: no more than: 40 l
Type: non-energetic, mechanical, impeller
Mounting position: horizontal
Interval: 48 months
Installation length: 300 mm
Weight: 6.8 kg
