Counter of hectares, land surveyor, field surveyor, agronomist, Cherkasy region.

For tractors, combines, sprayers, seeders (MTZ 80/82, T-150, OP-2000 New Holland, John Deere, CLAAS, etc.)

The counter records only harvested, processed hectares. You don't need to control the operator yourself. At the end of the shift, you will know exactly how many hectares have been processed.
Advantages:
The number of cultivated hectares, with an accuracy of 0.01 ha (by seeder, sprayer, harvester, tractor), 149
Имеет общий (накопительный) счетчик. Который покажет общий объем выполненных работ.
And an additional current counter, on which you can see the current and daily operation of the unit.
The unit's grip width is adjustable from 1 to 32 meters,
Displays the unit's speed - km/h,
Keeps track of the distance traveled in - km,
in the process of work, it is possible to adjust the width of the attachment of the unit: for example, a full harvester, 3/4 width, 1/2 width or 1/4 widthharvesters.

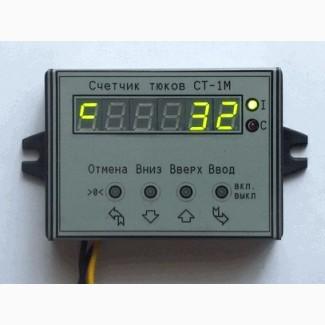

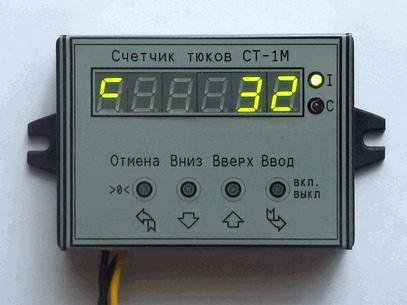

Bright LED display. The numbers are clearly visible both in bright sunlight and at night.

Installation of the meter is simple, you need to connect four wires:
1. Red - power supply (+) from the ignition switch (from 9 to 32 V);
2. Black – power (-) body (mass) of the machine;(//tractor-service.com)
3. Green – the signal of the resolution of the count (lever, button, turning on/off the reaper, sprayer, seeder);

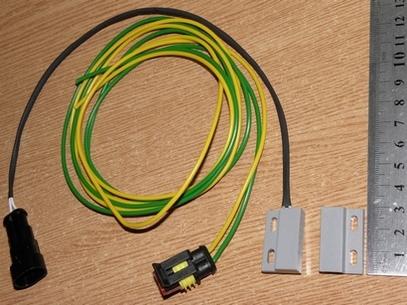

4. Yellow – signal from the speed sensor, odometer. (this sensor is located on the gearbox, induction speed sensor).
* Or install an additional inductive speed sensor on the semi-axis orwheel unit.
Technical characteristics
1. Counter supply voltage from 9 to 32V (+3V)
2. Current consumption, no more than 200 mA
3. The minimum resolution of counters is 0.01 ha (1 are)
4. Number of EEPROM rewriting cycles 100,000 times
5. Degree of protection of the device, not less than IP41
6. Weight of the product, no more than 100 g
7. Overall dimensions (66x112x25) mm
Warranty 12 months
A passport and installation instructions are provided.
