Grain fans are intended for active ventilation of the embankment
grains, oilseeds, legumes, in warehouses and open streams.
The use of a grain fan allows:
- to dry, cool the grain in heaps;
- eliminate self-heating centers;
- protect grain from the formation of mold, fungi and other pathogenic microorganisms;
- destroy stock pests;
- to ensure the flow of oxygen into the intergranular space;
- conducts grain fumigation.
Application technology:

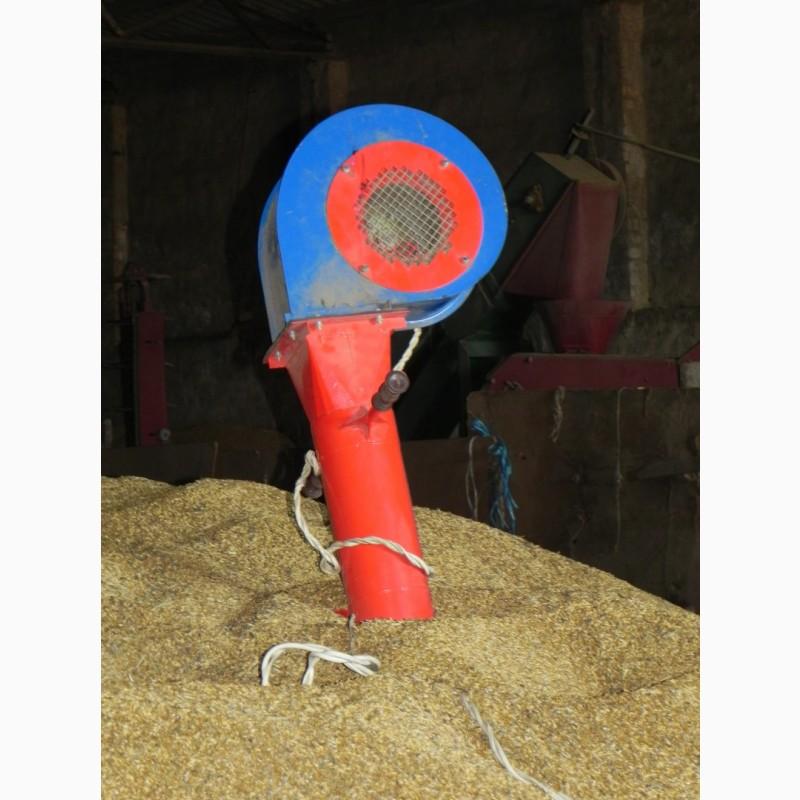

They are screwed into the embankment in the right place and work in air injection mode
(//tractor-service.com)
Economic advantage:
Grain is stored in unpretentious conditions in
unequipped warehouses;
The maximum filling of the warehouse, the volume of grain stored in the warehouse increases by 30-50%, labor-intensive and expensive techniques and technologies for moving grain are not needed.
The grain ventilator is economical, easy to use, unlike stationary ventilation systems, and does not require any preliminary preparation of the room.

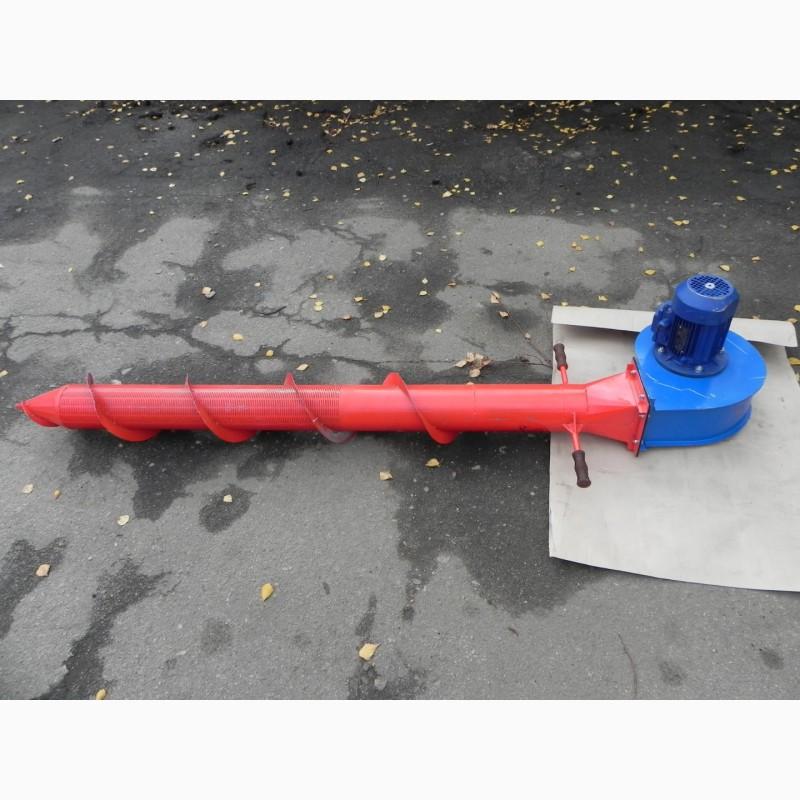

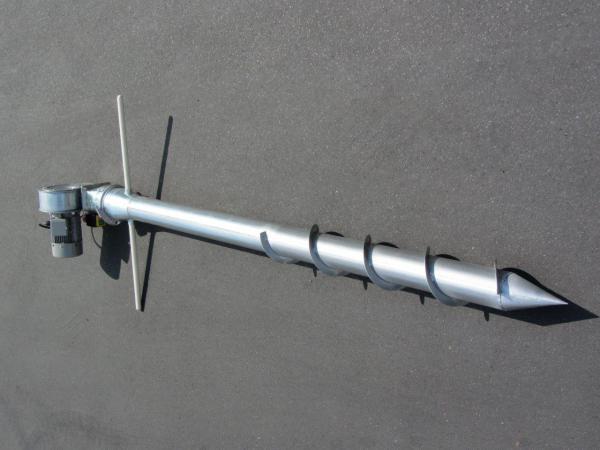

Complete set:
- a high-pressure fan with a maximum capacity of 1500 m 3/hour of air. That will allow blowing about 25m3 of grain.
- a reliable 3-phase electric motor with a capacity of 1.1 kW, installed on a pipe.
- perforated steel pipe-air duct with a diameter of -125 mm and a length of 1.5 m (total length with the engine is 2.2 m)
Warranty - 12 months.
Shipping across Ukraine by Intime, Novaya Pochta, etc.
Call O97 O38 2O 42, O66 332 47 18
