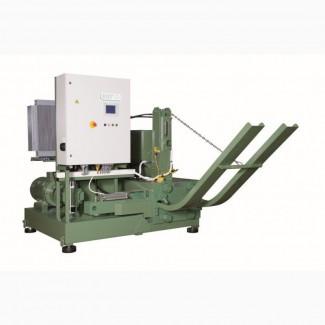

RUF-400 briquette press, Lviv region.

Country of manufacture Germany Consumed power 22.0 (kW) Maximum productivity 350.0 (kg/hour) Moisture 10.0 (%) Raw material fraction size 0.1-2.0 mm.

The RUF 400 briquette press produces briquettes with a cross-section of 150 x 60 mm (German standard DIN 51731). Technical specification for the standard set of equipment. cylinder)

Main features:

The pressing part of the briquette press and its hydraulic drive are mounted on a supporting frame with elastic damper supports. The electrical cabinet is located on the frame and integrated into the press. The electrical wiring of the press is fully assembled, the cables are laid in protective trays. The press is ready for operation immediately after connecting to the power grid and the material supply system.

The press and the electro-automatic system in the standard version are designed and manufactured for operation at an ambient temperature of +5°C to +40°C.

Using the press outdoors requires additional options that protect the press from frost and other adverse weather conditions.

Before delivery from the factory, the press undergoes a 20-hour test run to identify possible defects using wood sawdust as a briquetting material.

With the exception of a small number of purchased components, all parts and units of the briquette press were designed and manufactured by RUF GmbH. Design, production and assembly are completely carried out at the factory in Zaisertshofen, Germany.

Hydraulic system:

Axial-pistonpump with adjustable performance
pressure in the system - max. 300 bar
main high-efficiency (EFF1) drive electric motor - 22 kW, 400 V/50 Hz, 3-phase, 1500 rpm.
safety class IP 54
Tank for hydraulic oil (500 liters) with 2 large 10 micron filters integrated into it for filtration of return oil
Forced oil cooling system with 1.5 kW drive motor and 5 micron fine filter
Hydraulic oil HLP 46
Protection device against overheating and low hydraulic oil level
Redistribution of oil in the system occurs by means of electromagnetic distribution valves (Parker)
The rods of all cylinders have a chrome coating.
The hydraulic tank is located on the supporting frame.
Electrical equipment:

Electric automation cabinet according to DIN EN60204-VDE 0113, safety class IP 54
Supply voltage 400 V, 50 Hz
The working voltage of the power supply of electric automation is 24 V (direct current)
Programmable controller (PLC), model SIEMENS S7-200 with control panel and information display Siemens TP177B
display of the current ones and the possibility of changing the set values of the briquetting parameters
management of press work
self-diagnosis and warnings about malfunctions in the press
Automatic start/stop of the press provided by infrared sensors located in the loading hopper of the material
Control of the placed cylinders is provided by non-contact inductive limit switches.
All electric motors have thermal overload protection.
Submission of material:(//tractor-service.com)

The loading hopper, which has a reinforced structure made of steel sheets, with an opening of 400 x 800 mm
The volume of the bunker is approx. 150 liters
A mixer with a 0.55 kW electric drive motor to prevent arching in the material in the hopper
Loading auger with electric drive 1.5 kW
The material loading time is automatically regulated by the programmable controller.
Preliminary compression of the material:

Vertically located hydraulic cylinder
The pressure value for the pre-compression chamber is set by the operator from the ТР177В control panel, depending on the material.
The device for monitoring the length of the stroke of the cylinder rod, the information of which is used for automatic adjustment of the loading time of the material, is located outside the pre-compression chamber to protect against dust.
Basic material compression:

Horizontally located main hydraulic cylinder
The pressure value for the main cylinder (up to 300 bar) is also set by the operator from the ТР177В control panel, depending on the material.
Cylinder diameter - ø250 mm, max. pressure force of 150 tons (at 300 bar).
Productivity of the press:

Depending on the settings, up to 400-430 briquettes per hour.
Briquette size:

150 x 60 mm in section
The length of the briquette is 40 – 110 mm, depending on the settings and the type/size of the briquetting material (the approximate weight of the briquette is 835 g with a length of 85-95 mm)
Max. specific pressure, approx. 1700 kg/cm² (at 300 bar).
Dimensions / Weight:

Approx. (L x W x H) 2710 x 1900 x 2100 mm
The specified dimensions do not take into account the necessary working space for servicing the press of 1000 ÷ 1500 mm.
Weight (without options), approx. 3500 kg
Body finish:

Press color - green (RAL 6011)
The color of the electrical cabinet - series (RAL 7035)
For an additional fee, it is possible to paint the press in different colors.
The delivery set includes:

Complete briquette press, filled with hydraulic oil, without packaging - 1 pc.
Construction of two output channels (at an angle of 45º) for briquettes - 1 pc.
Protective covers for output channels (in a cardboard package) - 2 pcs.
A set of socket wrenches (in a metal case) - 1 pc.
G-shaped spanners - 3 pcs.
Folder with documentation in German (English) and Russian - 1 piece.
