Disk harrow BDN-2.1, Dnipropetrovsk region.

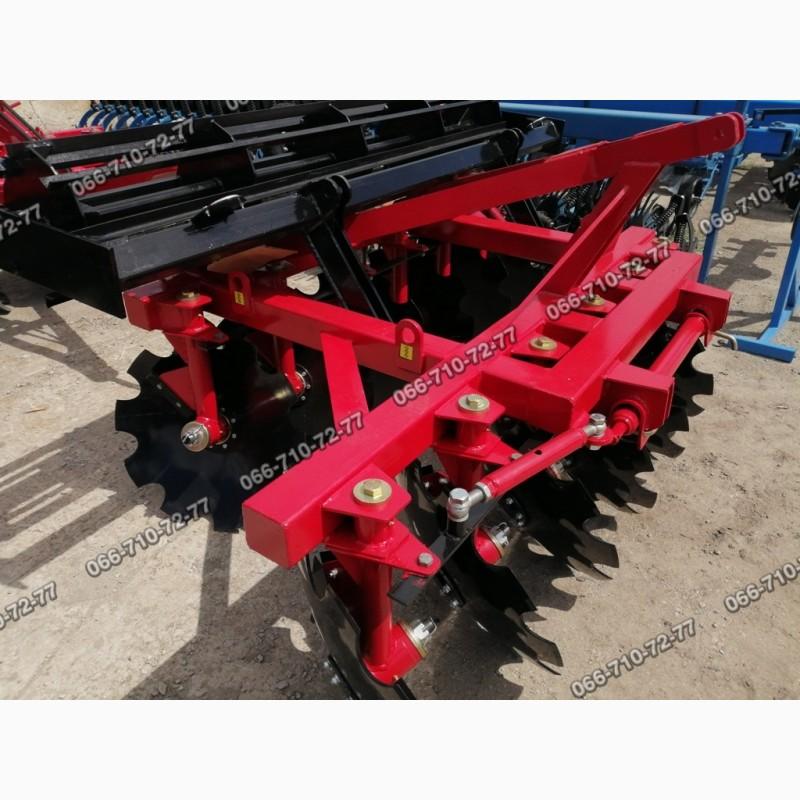

Disk harrow BDN-2.1

Mounted disc harrow Harrow suitable for pre-sowing and continuous tillage in fields with different mechanical composition,
with a low degree of petrification and sodiness, with humidity up to 27% and hardness up to 3.5 MPa.
The recommended purpose is to prepare the soil for planting fodder, grain and technical plants,
including the grinding and filling of plant residues in it for refreshing meadows when using different agrotechnical schemes.
The harrow is intended for soil preparation forseeding of grain crops, not clogged with stones, slate and other obstacles,
The name of the indicator
Productivity for 1 hour of main time
ha/h 1.5-2.0
Working speed of movement on basic operations
km/h 8-10(//tractor-service.com)
The working width of the disc harrow
m 2.1
Processing depth
cm 8-20
The distance between the hulls along the beam
mm 350
Distance between working bodies in the course of movement
mm 950
Number of cases
piece 12

Evro Disk (bar-bearing steel) mm 660
