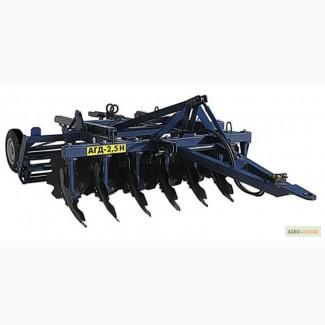

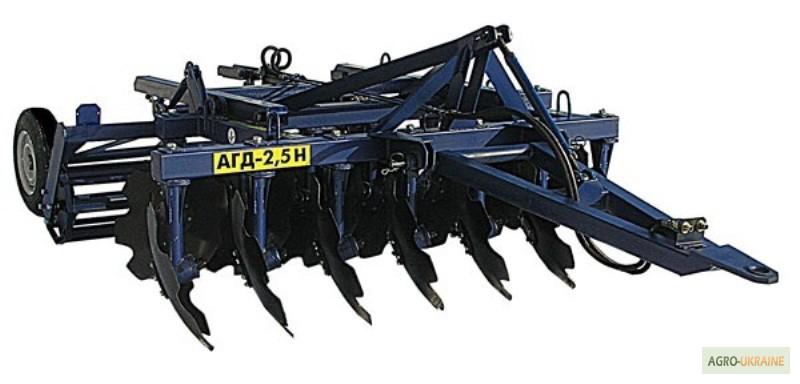

Disk harrow AGD-2.5H trailed, Dnipropetrovsk region.

Дисковая борона AGD-2.5H trailed (patented)
The unit is intended for cultivation of soils of different mechanical composition with grinding and embedding of plant residues in the soil under the following conditions:
- soil hardness is no more than 3.5 MPa,
- soil moisture is not more than 27%,
- height of harvest and plant residues up to 30 cm.
The unit is designed for work with tractors of the 14 kN class (1.4 ts)
The unit can be operated in all soil and climatic zones.
TECHNICAL CHARACTERISTICS
Trailer type
Construction width, m 2.5 minus 0.1
Productivity ha / time, 1.8...2.2
Soil tillage depth, cm 8...18
Working speed of movement, km/h 8.0...12.0(//tractor-service.com)
Transport speed, km/h 20
Weight of the product (without accessories), kg 1160 minus 50 Dimensions, mm, no more
length 4800 minus 150
width 2800 minus 150
height 1000 minus 150
Ground clearance, mm, not less than 300
Service personnel, people (tractor driver) 1
Guaranteed resource, 1240 ha.
Transfer to transport and working position hydraulic.
Options for using AGD-2, 5H:
- as a trailing unit, it is attached to atractor with the help of a towing device;
- as an intermediate option, half-mounted;
- as a mounted tool, the towing device will be moved to a vertical position,
disconnect the wheel drive, hang the unit on the tractor's three-point system;
