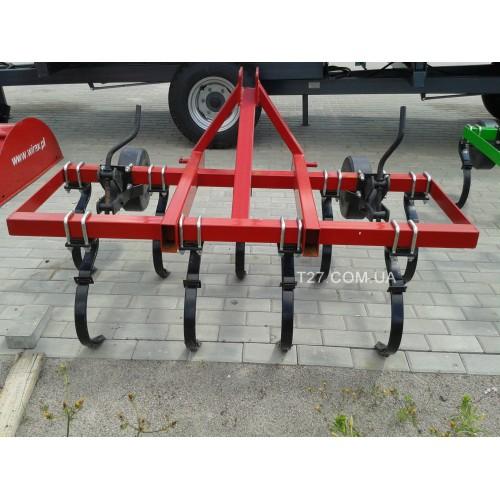

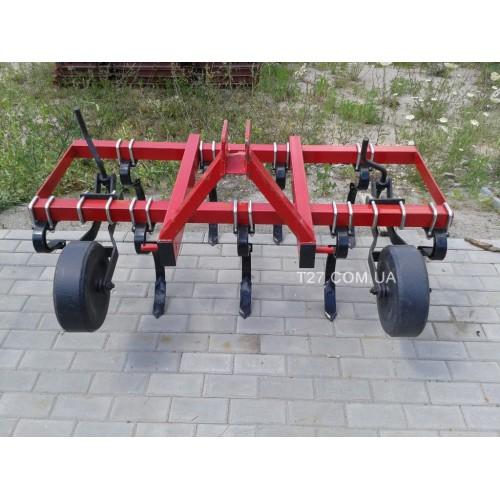

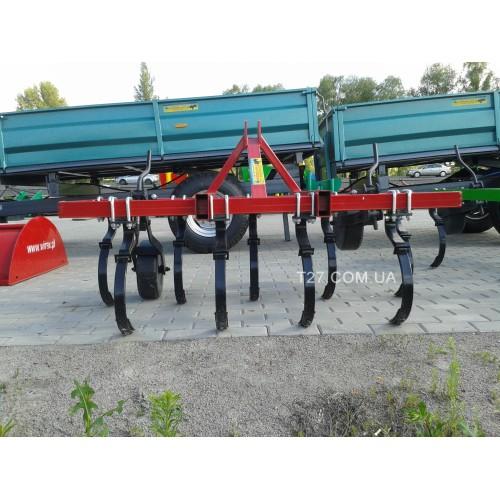

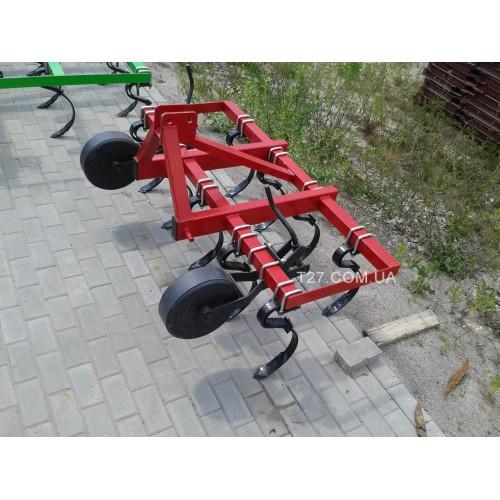

Cultivator of continuous processing 1.5 m hinged spring, Kyiv region.

Spring hinged cultivatorcultivator of continuous processing with a grip width of 1.5 m intended for pre- and post-sowing processing soil With its help, the loosening of the upper layers of the soil is carried out (unlike the plow, without turning the layer), leveling the surface, mixing mineral fertilizers with the soil. It is widely used to fight weeds, and also helps to preserve moisture when tilling fields with stubble. It is aggregated with tractors with a capacity of at least 18 hp. with the help of a standard three-point hitching system.
(//tractor-service.com)

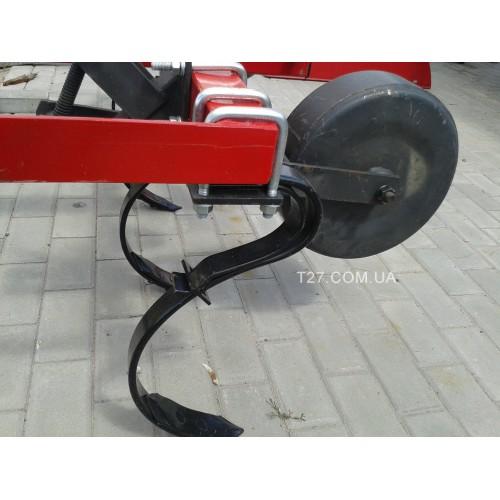

The reinforced design withstands heavy loads thanks to the solid frame, is easy to operate and can be easily adjusted to the necessary work parameters. Nine spring racks (teeth) of the cultivator are arranged in two rows at a distance of 185 mm from each other (with the possibility of adjustment) and are attached to the frame with the help of stirrups. The working elements of the racks (easily replaceable loosening bits) are made of durable steel, characterized by resistance to wear and damage. 2 holes are provided for fastening and correct adjustment of the central screw.

Supportwheels with removable mudguard strips facilitate the movement of equipment on the field, ensure smoothness of movement and uniformity of soil cultivation, and with the help of adjusting screws on the supportwheels, it is possible to change the depth of cultivation. Functionality of the cultivator is maximally effective on land plots with an angle of inclination of no more than 8.5°. The optimal combination of the grip width (1.5 m) and high working speed (up to 10 km/h) ensures the productivity of land cultivation up to 1.5 ha per time.
