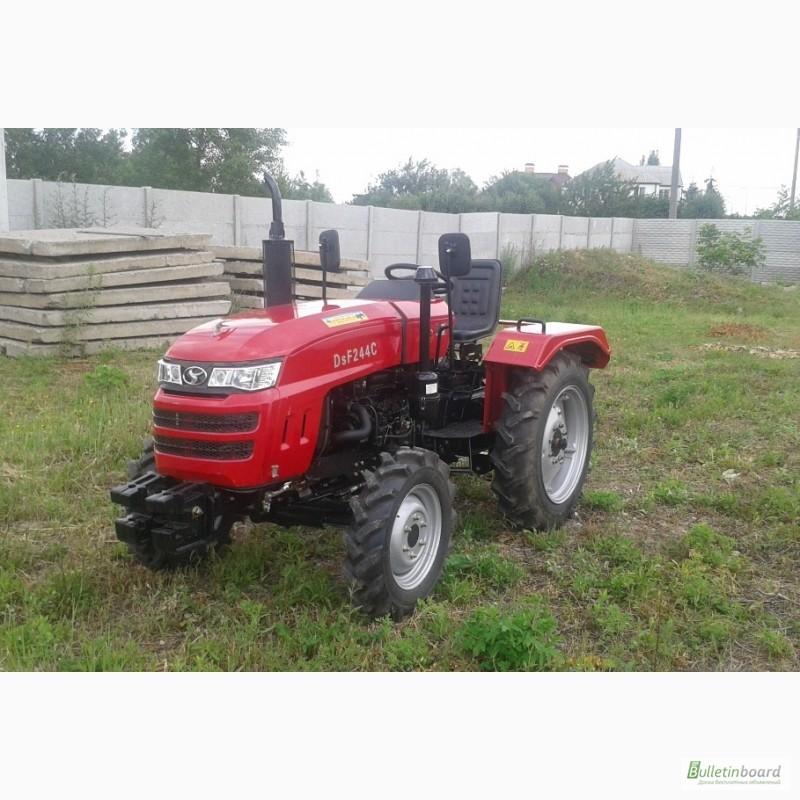

Polnoprivodny tractor with with a three-cylinder liquid-cooled diesel engine YD385T with a working volume of 1532 cm3, a power of 24 hp.
It differs from the Shifeng DsF244CL (Lux set) in a lower price, the absence of a compressor and the standard size
tyres.
Swinging front axle of the portal type, front hitch, mass switch-off handle, battery 100 A/h. Two hydraulic pumps, a tool box, a spring-loaded, height-adjustable seat, a handle for rotation on the steering wheel. Combined instrument panel (tachometer, indicators of coolant temperature, fuel level, oil pressure, hours counter, voltmeter). Running board, handrails, spherical mirrors, emergency alarm. Powerful sound signal, manual gas.
dismountable discs rear
wheels on the hub, rear working light. Spacer bar between rear wings, hydraulic outlet, towing device.
Power, hp, (kW) 24 (17.6)
Wheel formula 4x4
Diesel engine, YD385T
Number of cylinders 3
Working volume, l 1,532
Specific fuel consumption, g/kW*h 252
Liquid cooling
There is no heating of the power supply system.
Gearbox (4+1)x2
Gear transmission
Steering with power steering
One-disc clutch
Lockable rear differential
(//tractor-service.com)
Rear drum brakes
There is a parking brake
Dimensions L/W/H, mm 3200/1670/2055
Wheelbase, mm 1600
Front/rear axle width, mm 1240-13000/1150-1360
Ground clearance, mm 295
Weight, kg 1270
Speed, km/h 2,156-26.36
Tire size 6-16,00/9.5-24
Tank volume, l 16
Power take-off shaft, rpm. rear, 540
Traction force on the hook, kN 5.9
Lifting capacity, kg 470
There is a hydraulic outlet.
Loads, kg front - 48; rear - 2x40
