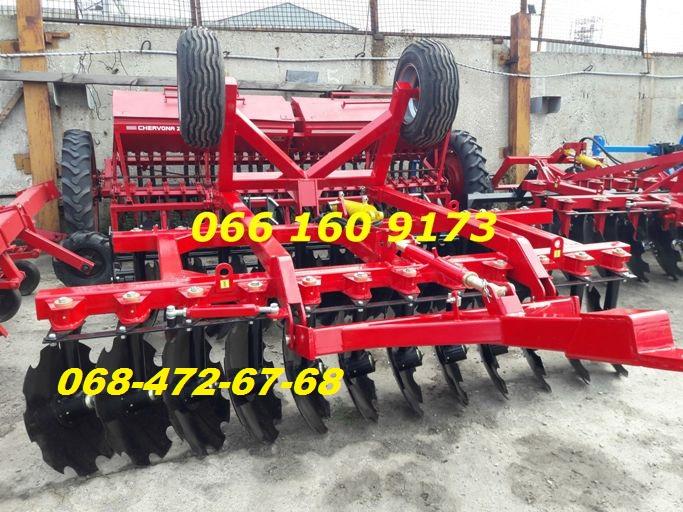

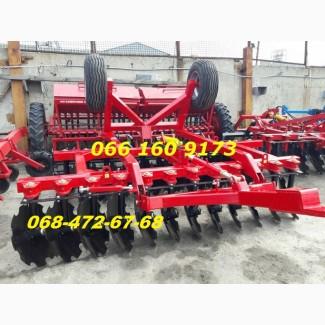

BPD -3, 2 m Harrow Diskovaya, Kirovohrad region.

Trailed Discovaya Harrow, working width-3.2 m HarrowBPD - 3.2
Technical characteristics of BPD -3.2 :
Productivity for 1 hour of the main time (ha/h) up to 3.84
Working speed (km/h) up to 12
Width of capture, m 3.2±0.12
Constructive mass of the machine, kg 1600
Processing depth, cm up to 15
Overall dimensions (in working position), mm
Length 5265±160
Width 3366±100
Height 1150±35
Disc diameter, mm 560
Number of working bodies, pcs. 24(//tractor-service.com)
skating rink 1
Angle of attack of discs, degrees. 0° — 30°
Distance, mm
between discs in a row 250
between rows of discs 950
Service life, years 18
Test results
Indicators of the quality of soil treatment BPD 3200
The ridge of the soil surface, no more (see) 3
Crumbling soil, not less (the size of lumps not more than 25 mm.) (%) 90
Grinding of harvest residues (%) 101
Plant and harvest residues (%) 101
Aggregability 90 hp.
