Semeato "SSM-35" universal seeder for No-Till technology, Kirovohrad region.

Technical characteristics:
Number of seeding rows, 17cm - 35 pcs.
Number of seed rows, 70 cm - 8 pcs. in the database
Colander - 15x17 inches
Nominal power of the tractor - 220 hp.
Tractor hydraulic system (for pneumatic seeding) - from 40 to 80 l/m.
Max. grain hopper volume - 1590 l.
Max. the volume of the fertilizer hopper is 2430 l.
The material of the bunkers is plastic.
The volume of the hopper for small seeds is 245 l. (metal)
The range of norms for sowing grain is from 1.5 to 400 kg/ha.
The range of sowing rates is fertilized - from 55 to 450 kg/ha.
The range of seeding rates is micro-fertilized with a small-seeded hopper - from 8 to 80 kg/ha.

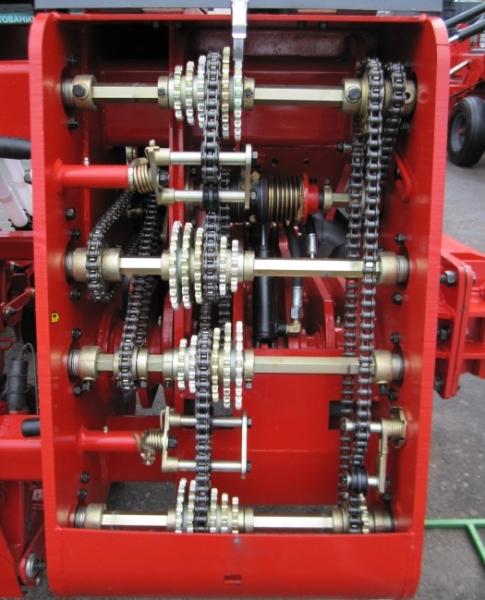

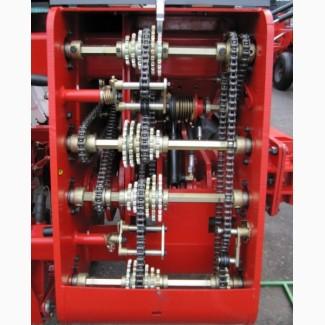

Adjustment of sowing rates - gearbox
Seeding device:
> narrow-row crops - obliquely toothed coil
> wide-row crops - disk, vacuum
> small-seeded crops - straight-toothed reel
> fertilizers - auger ¾ and 1 inch
Working width of capture - 5.95 m.
Transport width (in working field) - 7.55 m.
Transport width (with the device) - 3.60 m.
Sowing speed, recommended - 5-8 km/h
There is a marker.
Transport device - in the database

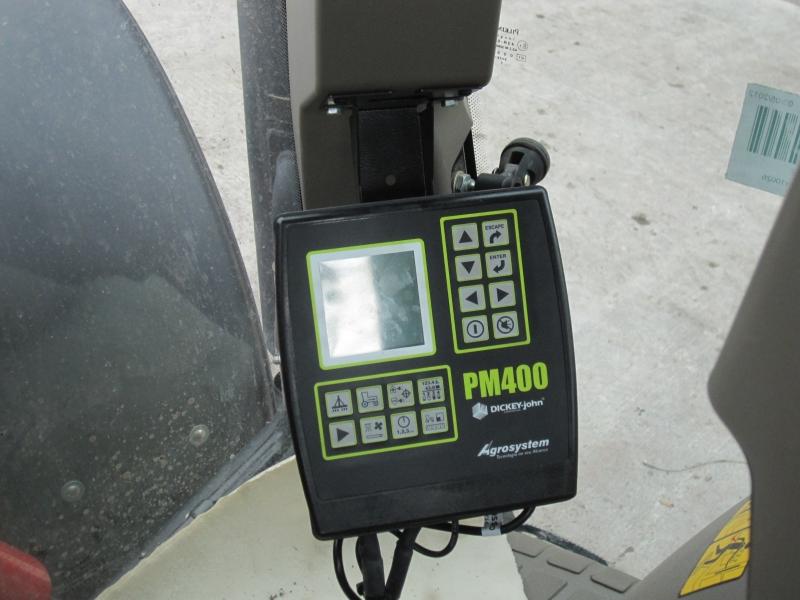

Systemcontrol of precise seeding - in the database
Continuous sowing control system - option
Weight (approximately) - 10,000 kg.(//tractor-service.com)

It is supplied in 2 basic configurations:
1. SSM - 35 grain, mechanical, with a transport device (35x17 cm.);
2. SSM - 35 universal, pneumatic, with transport device (35x17cm and 8x70cm);

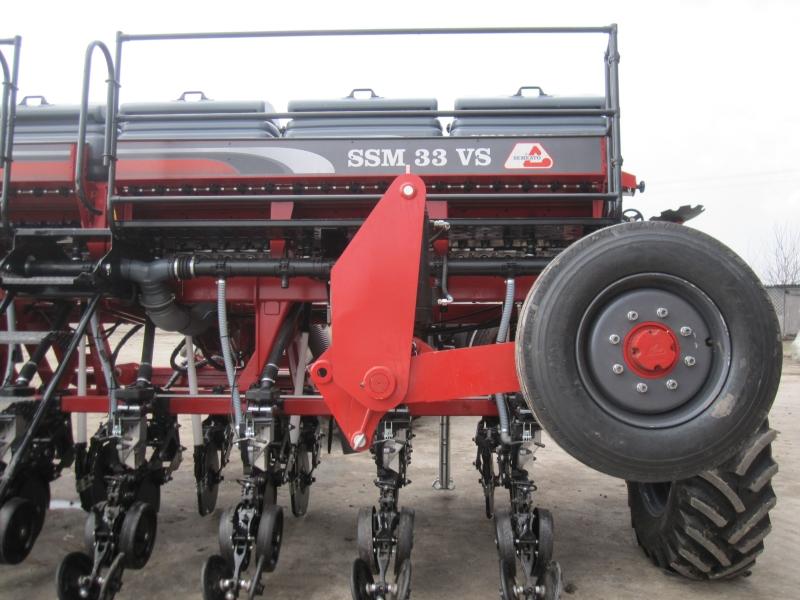

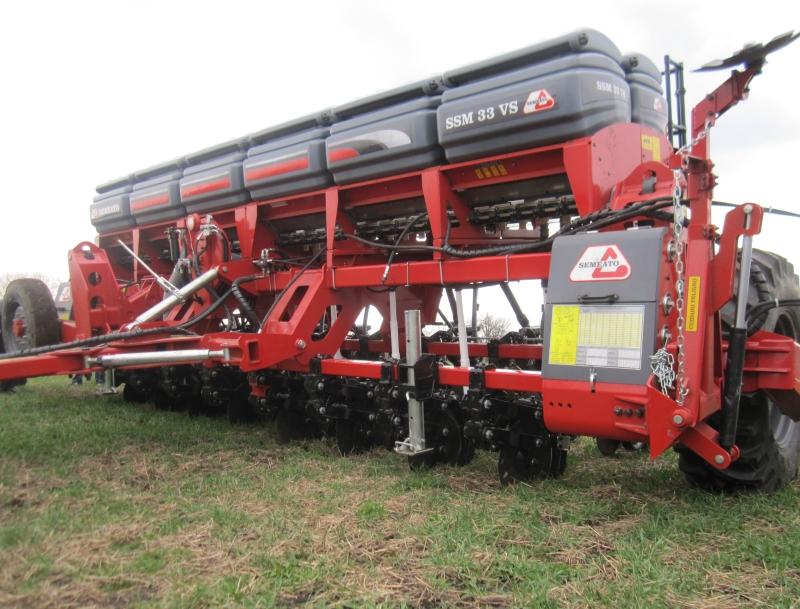

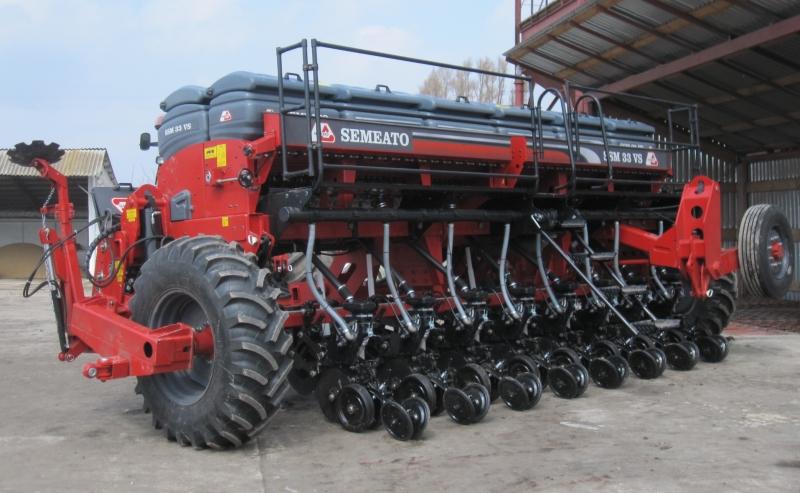

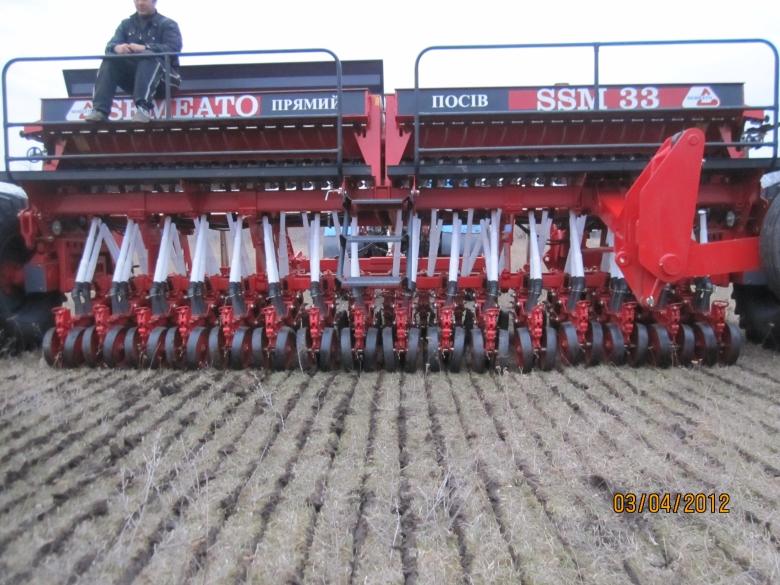

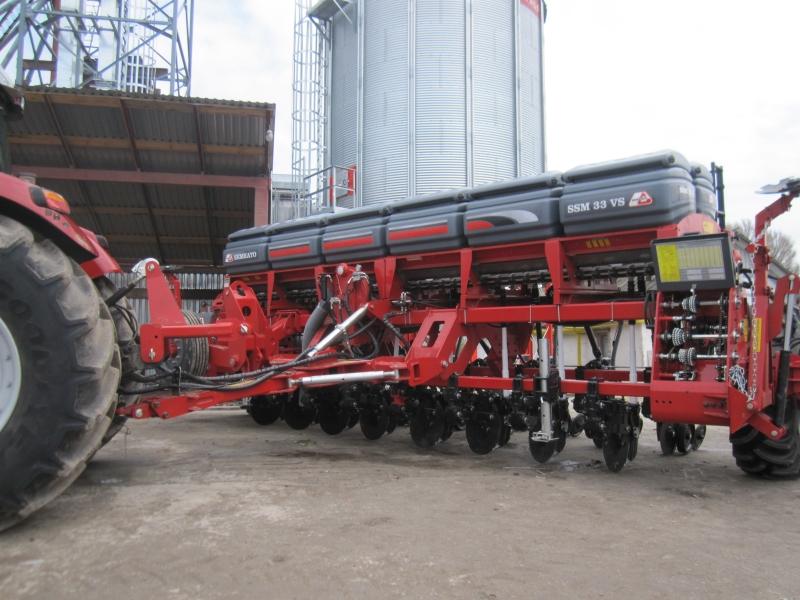

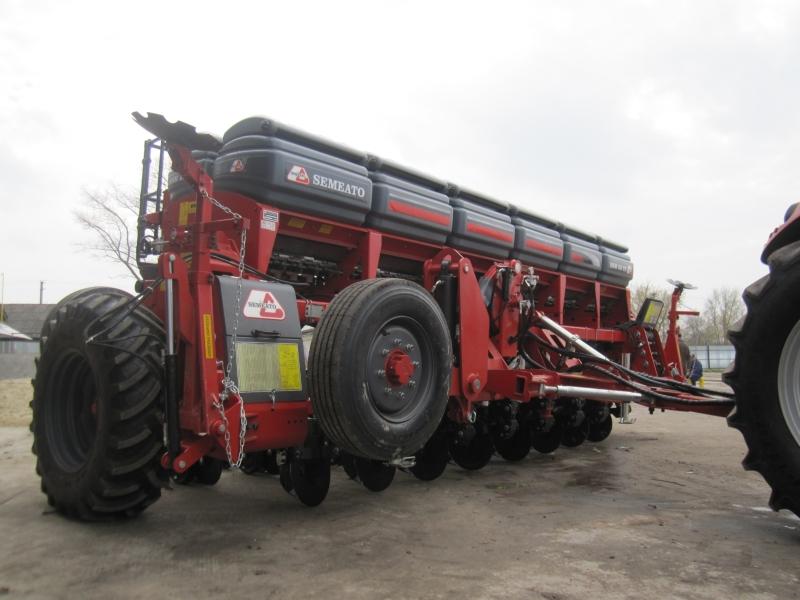

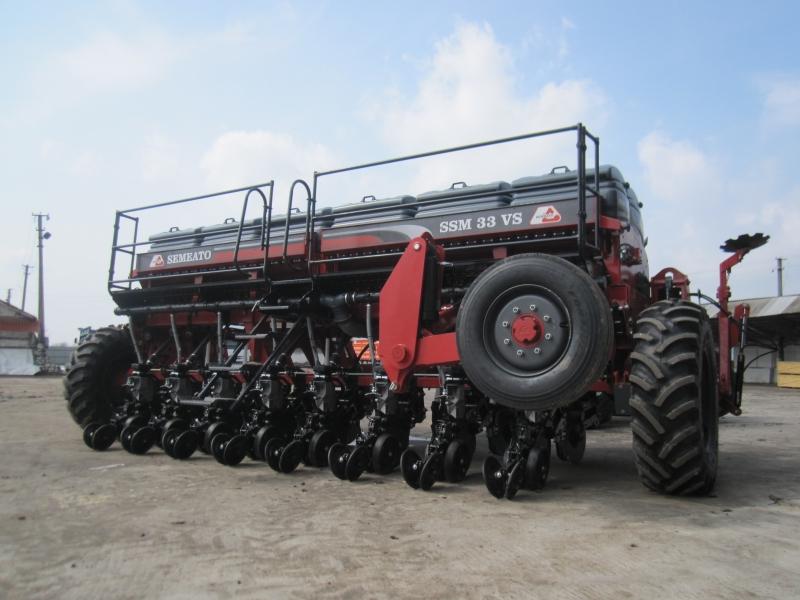

the photo and video show the SSM-33vs seeder - this is the previous model on the basis of which the SSM-35vs was created.

Possibilities of additional equipment:
On the SSM-35 in the wide-row version, it is possible to add 9 rows of 70 cm., 12 x 50 cm., 13 x 45 cm., 15 x 40 cm., 17 x 34 cm. The possibility of additional equipment with a seeding control system for continuous sowing. Re-equipment of row cleaners for precise seeding. The system of disconnection of rows at overlaps. Installation of the "Precision Planting" precision sowing system. Installation of a liquid fertilizer application system.

Advantages of the Semeato SSM-35vs planter:

- absolute universality – sowing of narrow-row and wide-row (gap) crops, sowing on stubble, after disking and even after plowing, sowing on any type of soil and in any climatic conditions.
- seeding sections arranged in a checkerboard pattern, as well as shifted back and to the sideswheels depth adjustments make it possible to sow on overmoistened soils
- sowing of fertilizer below the sowing depth of seeds (with wide-row sowing), as well as the possibility of applying fertilizer in the fall by cutting rows along strip-tills

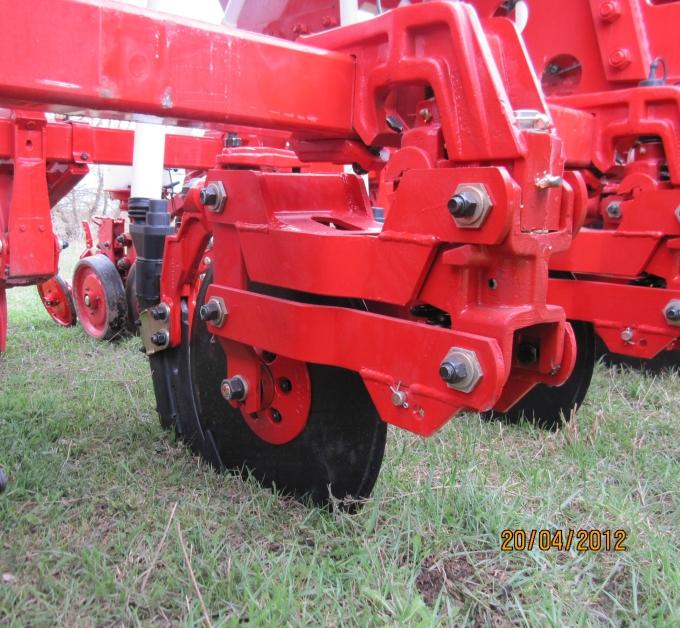

- the double frame and the parallelogram design of the seeding section ensure accurate copying of the soil relief and the unimpeded passage of plant residues between the sections.
- Able to cut any plant remains and produce "invisible" sowing.

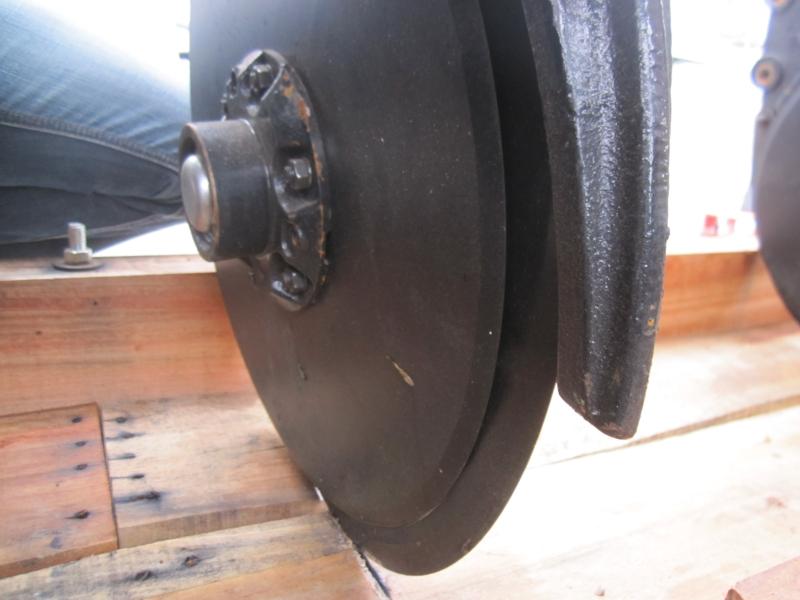

- the minimum angle between the discs of the coulter is 7 degrees, ensures minimal disturbance of the soil structure.
- the system of parallelogram bushings ensures long years of impeccable service.
- the bracket of the section, the hub of the coulter and the bracket of the rollercast wheels, and do not have welding seams. All these features ensure durability in the operation of this unit.
- the oblique-toothed coil provides easy adjustment of the sowing rate and uniform placement of seeds in the row.
- screw dispenser fertilized with SFLOW® ensures accurate dosing and uniform distribution

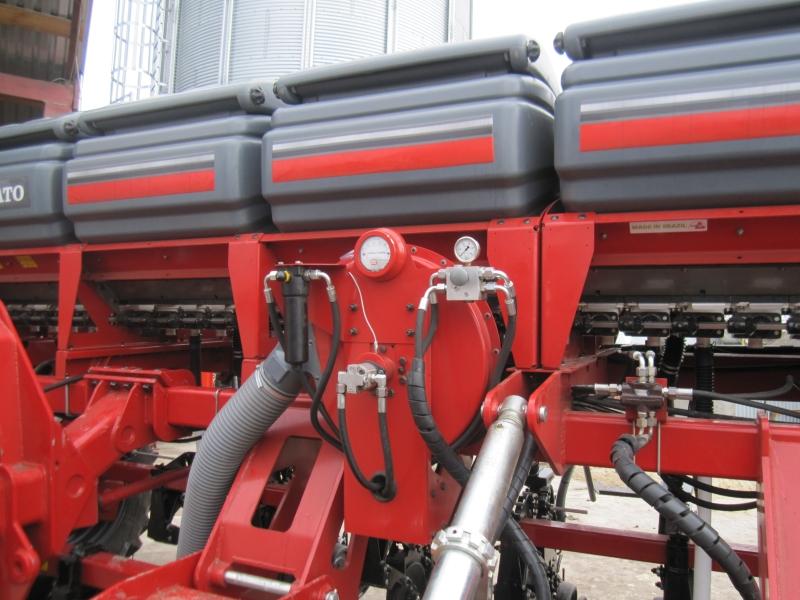

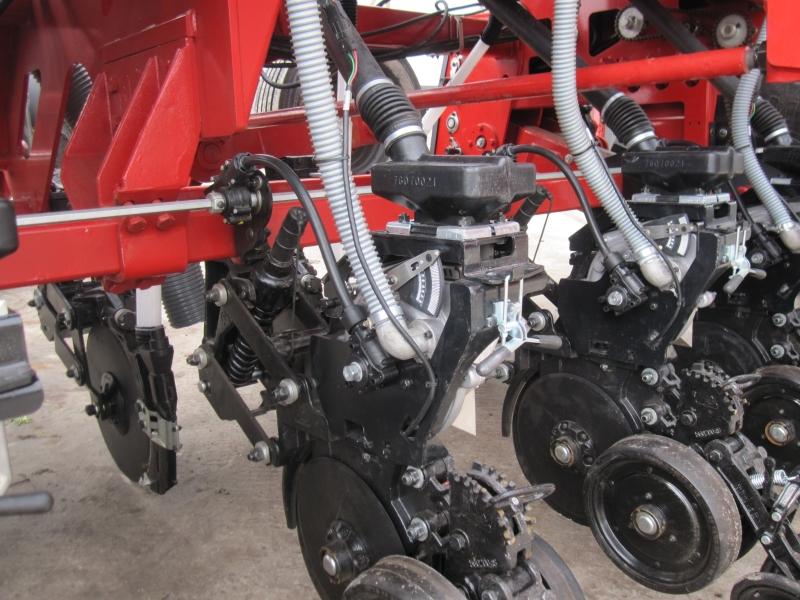

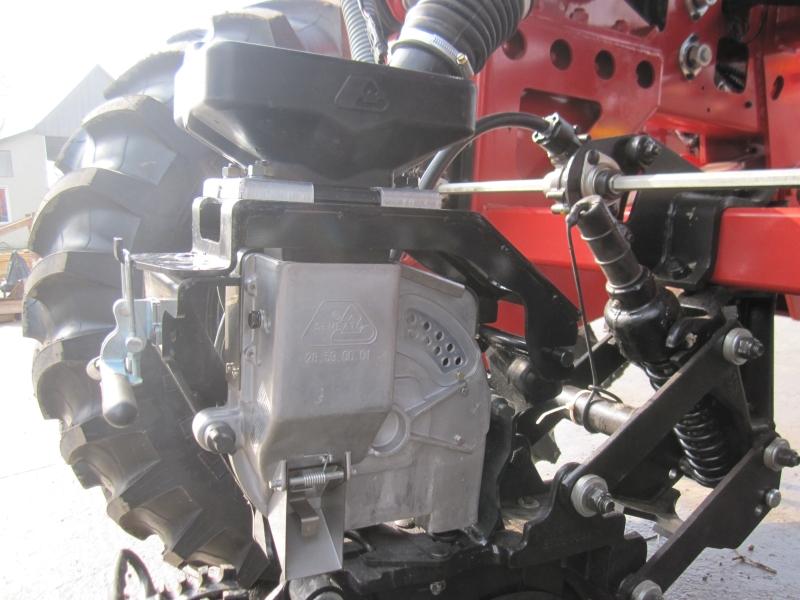

- a vacuum system of precision seeding with advanced seeding devices from Semeato
- the weight of the seeder is sufficient to ensure pressure on the coulter from 60 to 203 kg/cm.
- simple and quick change of seeding rates, seeding depth and coulter pressure.
- the planter is made in the metric system of measurements.
- capable of sowing several types of seeds at the same time (for example, corn/sunflower and inter-row cover crops).
- capable of applying two types of fertilizer at the same time already in the basic configuration (the main hopper is fertilizer under the sowing horizon and micro-fertilizer together with seeds).
- the cardan maintenance-free drive of SEMEDRIVE® precision seeding devices transmits the torque without the slightest jerks at any position of the coulter on any terrain.
