ZHVP-4,9 harvester; ZHP 5.1; ZHP 5.2; ZHP 6; ZHP 6.4; ZhVsh 6,4, Zaporizhzhia region.

Harvester ZhVP-4,9; ZHP 5.1; ZHP 5.2; ZHP 6; ZHP 6.4; ZhVSH 6.4.

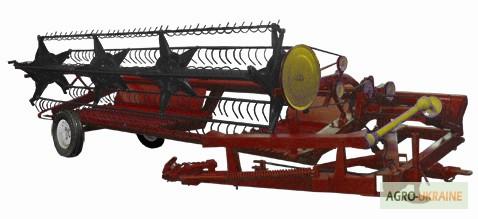

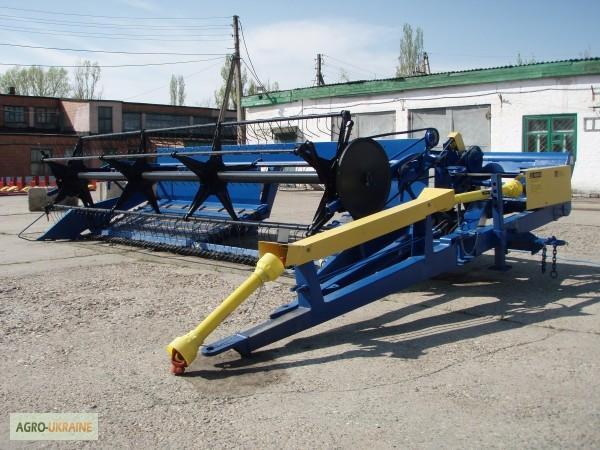

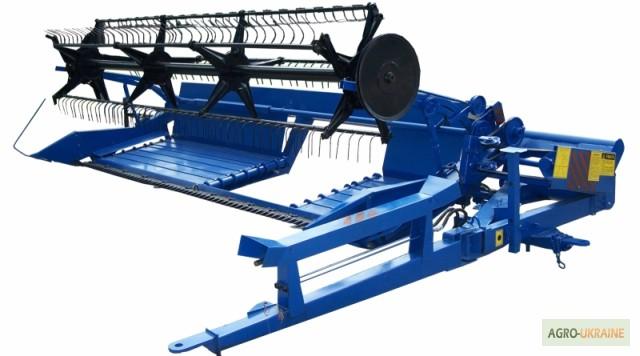

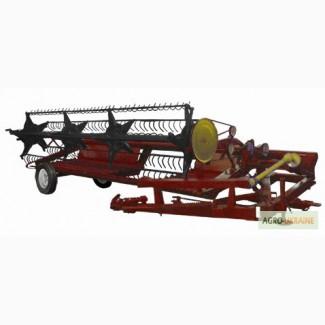

The ZhVP-4.9 harvester is intended for mowing grain and grain crops with the placement of the mown mass in a single counter-flow roller. It is used in all soil and climatic zones, where a separate method of harvesting is used. Reliable and easy to use.
Aggregation:
The ZhVP-4.9 harvester is aggregated with wheeled tractors of the class 1.4...2.0 t.s. (YUMZ-6, MTZ-50, MTZ-80, MTZ-82, etc.)
Distinctivefeatures of the ZhVP-4,9 harvester from similar ZHVP-4,9 harvesters of other manufacturers:
• The ZhVP-4,9 harvester is equipped with a newuniversal, springless anti-winding reel with a two-sided rake tilting mechanism. Its reliable operation and the quality of the technological process depend on the correct assembly and installation of the reel on the ZhVP-4,9 harvester. TransportationZhVP-4.9 harvesters is carried out by a tractor, while the ZhVP-4.9 harvester is transported as a cart, which reduces the load on the tractor hitch, the frame of the ZhVP-4.9 harvester and excludes deformation and destruction of the ZhVP-4.9 harvester nodes during transportation.
• The kinematic scheme of the drive of the transmission shaft has been changed, which eliminates the twisting of the belt transmission, compared to old models, which in turn increases the service life of the belt.
• The design of the conveyor shafts has been changed with the use of spherical bearings, which excludes the jamming of the shafts during misalignment, as a result of which the service life of the bearings increases.
• Improved conveyor belt drive scheme. A new conveyor drive scheme is used when the lower branch of the conveyor belt is tensioned, which prevents breakage of conveyor belt slats and reduces noise during harvester operation.
• Improved access to the transmission shaft, which facilitates its maintenance and makes it possible to immediately detect and eliminate the slightest malfunction.(//tractor-service.com)
• Changes were made to the design of the frame and nose, which increased the strength, productivity of the ZhVP-4.9 harvester, and its maintainability.
• The left side of the ZhVP-4.9 harvester is reinforced, which prevents its deformation.
• Reinforced crank shaft platform, which completely excludes the destruction of this unit.
• The ZhVP-4,9 harvester can be equipped with a SHUMACHER-type cutting device.
THE PRODUCT IS CERTIFIED
TECHNICAL DATA:
Gripping width, m 4.9
Productivity, ha/h up to 3.92
Mass, kg 1555
Dimensions in length for shipment, m 6.3
Delivery all over Ukraine!!!
