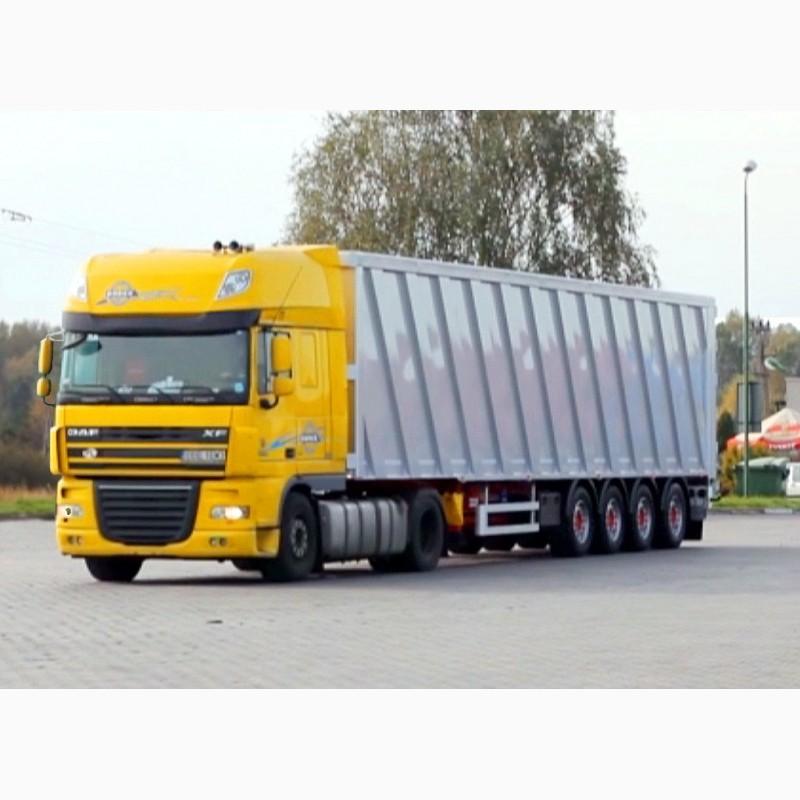

Semi-trailer with moving floor BODEX KIS 4FZ - scrap truck, Kyiv region.

Four-axle aluminum semi-trailer BODEX KIS 4FZ self-unloading and self-loading is intended for transportation of various bulk cargoes of different density.

The main feature of this semi-trailer, in contrast to previously produced ones, is the use of the latest XHDI (X-treme Heavy Duty Impact) moving floor system developed by Cargo Floor specialists. This line of aluminum profiles was developed as an alternative to steel profiles and consists of three models: HD (Heavy Duty) 8-20mm; HD SEALLESS 11-33mm and the most durable model in this line XHDI (X-treme Heavy Duty Impact) 10-22mm. All models of this series have high impact resistance and are intended for the transportation of all types of abrasive materials: among them stones, heavy and large-sized metal scrap, electric motors, etc.

Frame:

Reinforced, made of modern microalloyed structural steel QStE-690, consists of two welded longitudinal spars connected to each other by traverses and beams;
The frame is welded on both sides with powder wire calculated for - 400;
Coupling device - coupling plate with 2" pin JOST (Germany);
Support device two-range telescopic JOST (Germany) g / p 24 t with manual one-way drive.
Body:

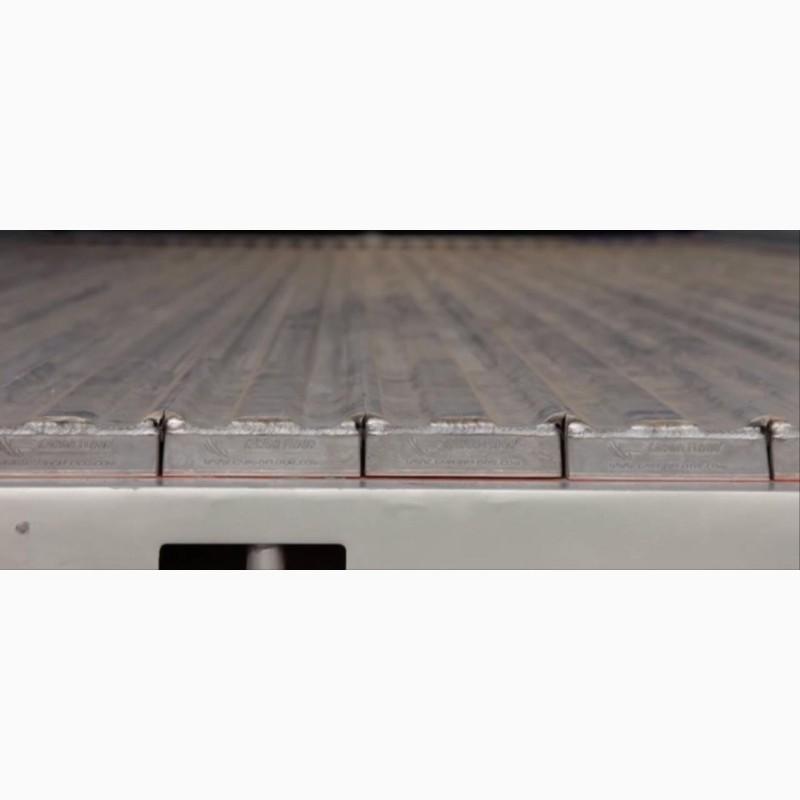

Cargo Floor XHDI (X-treme Heavy Duty Impact) moving floor system 10-22 mm, 142
Внутренняя передняя стенка подвижная алюминиевая по всей высоте с тентом или щётками для очистки внутренних поверхностей стенок,

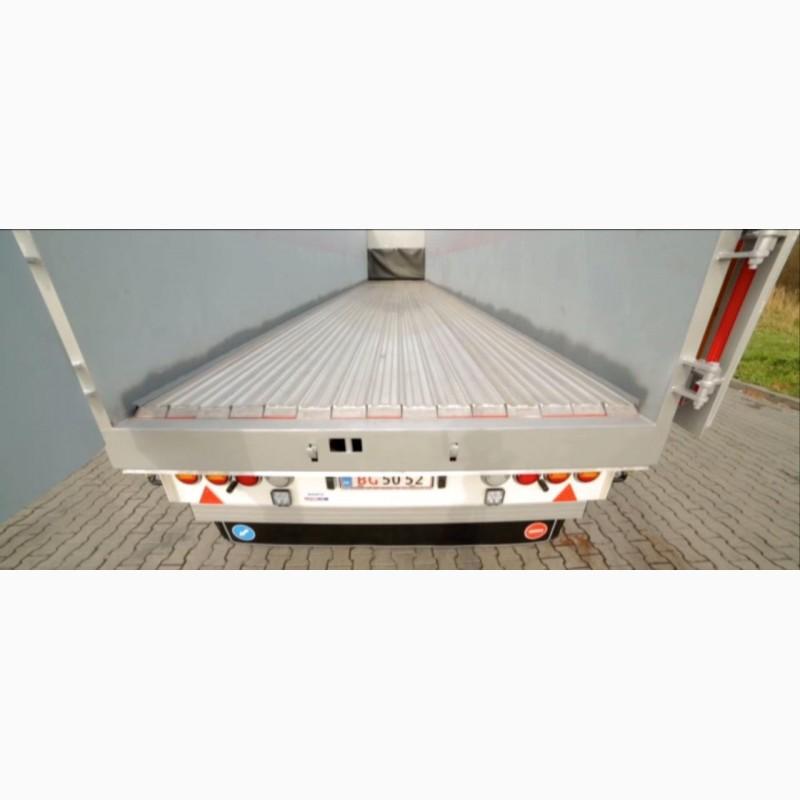

Full rear hinged aluminum gate with an opening upper beam;
The upper awning is 900 g/m2 thick;(//tractor-service.com)
Sliding roof.
Chassis:

Single-slope bodywork, the number of wheels is 9 pieces;
Tires Goodyear / Bridgestone / Continental, size 385 / 65 R22.5;
SAF / BPW axles with axle loads of 9 tons;
Wheels 11.75x22.5 steel stamped Lemmerz (Germany);
DOMAR full fenders (Italy) - 6 pieces, rear with rubber mudguards;
Basket for 2 spare /wheels (an additional bracket is installed in the base of the semi-trailer for fastening the sparetractor wheel).
Characteristics

The load on the SSU is 11,000 kg.
Height of SSU 1150 / 1300 mm
Gross weight 35,500 kg
The curb weight is 11,500 kg.
Load capacity 32,500 kg
