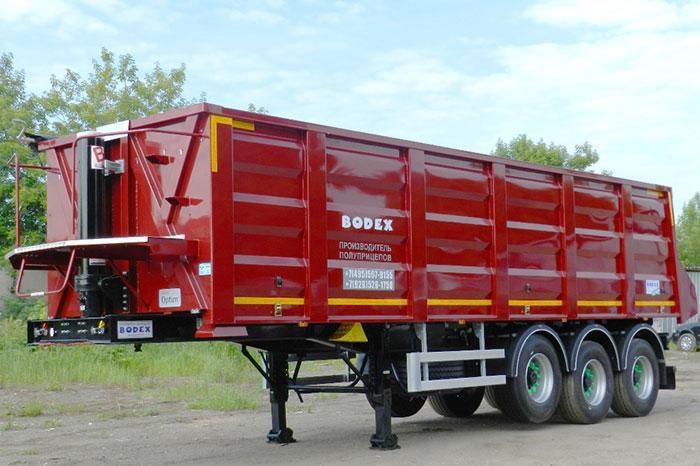

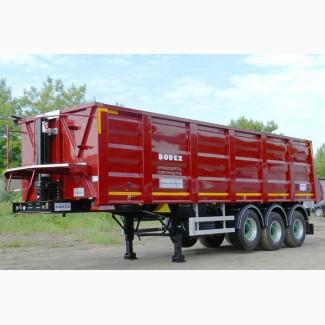

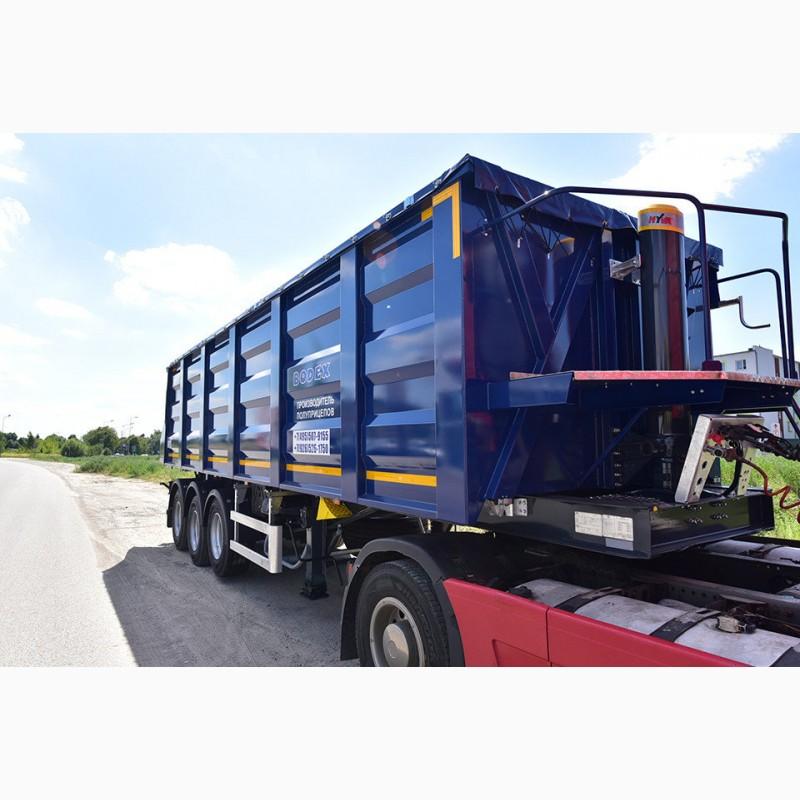

Bodex KIS 3WS1 steel tipper semi-trailer 33-35 m³, Kyiv region.

Body:

With fixed front and side boards, a platform with steps on the outer side of the front board;
Body material – low-alloy Swedish steel HARDOX 700MC;
The thickness of the bottom is 6 mm, the side is 4 mm;
The body is mounted on the frame and fixed in the transport position;

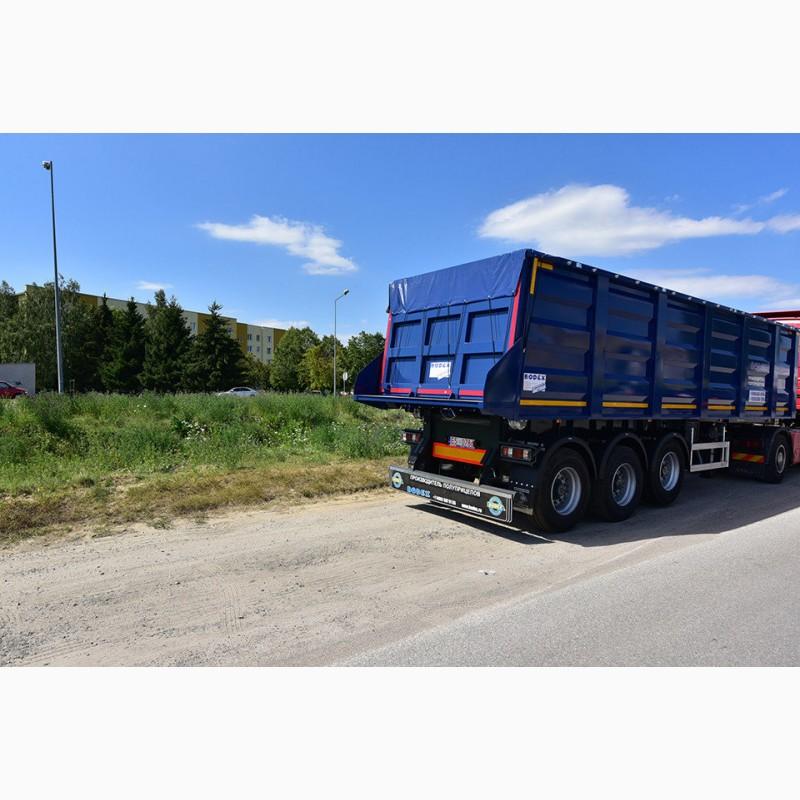

The rear side is inclined with the upper axis of rotation, on two hinges, with a rubber seal;
The rear side lock drive is mechanical;
The body is equipped with a sliding awning.
Frame:

Reinforced from Swedish RAEX steel, it consists of two welded longitudinal spars connected to each other by traverses and beams;
Coupling device - coupling plate with a 2" JOST pin (Germany);
Two-range telescopic support device BPW (Germany) g/p 24 t with manual one-way drive.
Chassis:

The tire is single-sided, the number of wheels is 7 pieces;
Continental tires-2XL, size 385/65 R22.5;
SAF/BPW axles with axle loads of 11/12 tons;(//tractor-service.com)
Wheels 11.75x22.5 steel stamped Lemmerz (Germany);
DOMAR full fenders (Italy) - 6 pieces, rear with rubber mud flaps;
Basket for 2 zap/wheels.
Suspension:

Three-axle pneumatic spring (pneumatic on semi-elliptical springs, OFF-ROAD version) produced by SAF/BPW (Germany), with a technical load on the axle of 11/12 tons and the original manufacturer's warranty of 1 hour; 160
Первая ось оснащена 2-х сторонним подъемным механизмом «WABCO» (Германия);
The function of quick release of air from the air cylinders of the suspension when unloading a semi-trailer.
Brake system:

Two-wire pneumatic with drum-type brake mechanisms (420x200) with all-wheel drive, expansion fist levers with automatic gap adjustment WABCO (Germany);
The parking brake is a pneumatic drive with energy accumulators on two axles;
Anti-lock braking system EBS WABCO 4S/2M (Germany).
Characteristics

The load on the SSU is 11,500 kg.
The height of the SSU is 1150/1300 mm.
Gross weight 35,500 kg
The curb weight is 7,800 kg.
Carrying capacity 27,700 kg
