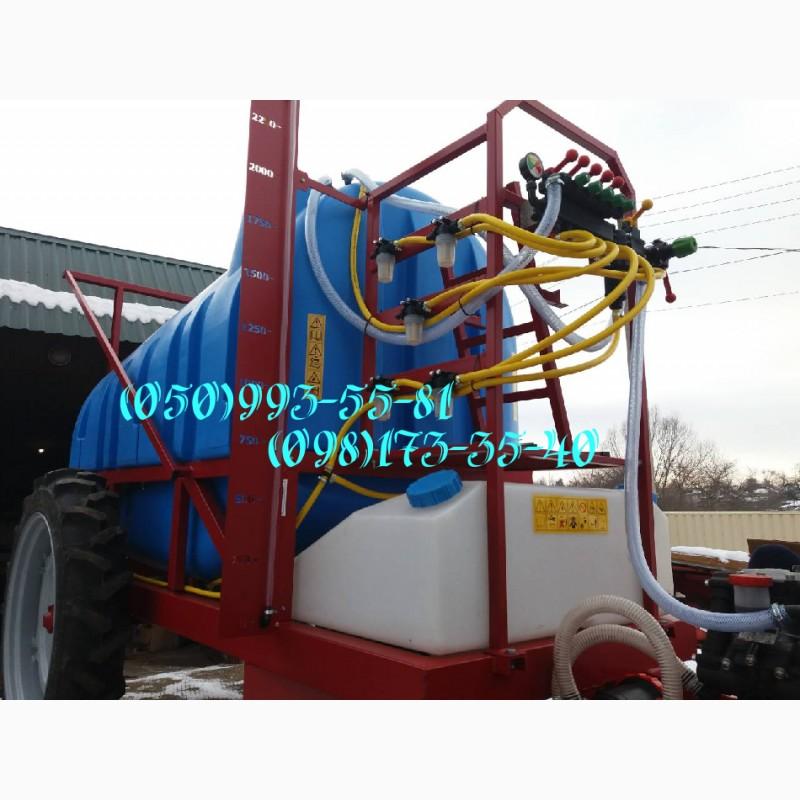

Modern trailed sprayer OP2000-OP2500 (POLAND), Odesa region.

Modern high-performance trailed sprayer OP2000/OP25000 POLMARK (Poland), boom 18 m. Polmark OP2000/OP2500 sprayers are used for processing field crops and surface fertilizing with solutions inorganic liquid fertilizers, such as pesticides, herbicides, fungicides, insecticides.
Lifting and lowering of the boom is hydraulic, folding the wings is mechanical. Trailed boom sprayers for 2000/2500 l with boom grip width of 18 m. The boom has effective (patented) mechanisms for stabilizing the position of working bodies, fixing boom sections in one plane and preventing them from being damaged when they collide with obstacles, as well as smoothing mechanisms for dynamic loads in the vertical and horizontal planes. All sprayers are equipped with Italian equipment (control panel, 3-position nozzles, hoses, reinforced hubs, filters,pump). They are delivered in the assembled state complete with cardan shaft.

Technical characteristics of the Polmark OP2000/OP2500 sprayer
Capacity, l. 2000-2500
Rod 18 m.
Working height of the bar, mm 700-1700
Track width, mm 1350-1750
Sprayer clearance, mm 500
Number of rod sections, pcs. 5
Nozzles 3-position, flat jet
Number of sprayers, pcs. 36
Distance between nozzles, see 50(//tractor-service.com)
The type of sprayer is slotted, 03
Hydraulic mixing of working fluid
Pump, l/min. 150, membrane piston
Necessarytractor power, hp 80
PTO revolutions, rev/min. 540
Weight without water, kg 230
Sizes in transport position
total height, m 2.50
height to the top of the barrel, m 1.95
width, m 1.70
length, m 3.55
Komplektsiya kardanny shaft.
