Block of chopper branches up to 80mm, Cherkasy region.

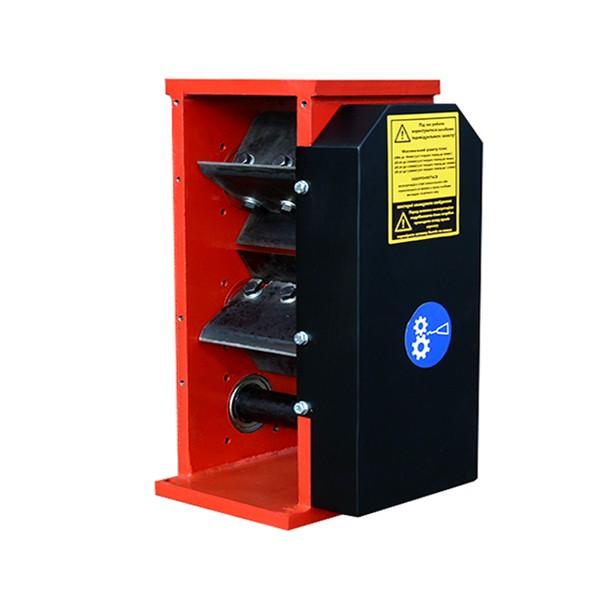

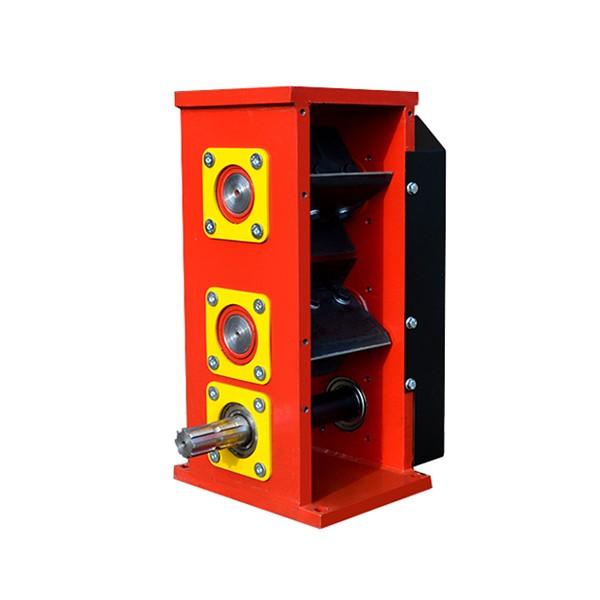

Blockbranch chopper Model 2B-80

The maximum diameter of the processed branch: 163

сырой мягкой породы 80мм
raw hard rock 60mm(//tractor-service.com)
dry hard rock 50mm
The resulting fraction is 10-12 cm.
Welded body, 18 mm. The weight of the cutting module is 54 kg. The size of the cutting module H/D/W 440x270x390mm. Knives steel 65G/10mm/4 pcs. The distance between the walls of the case is 170 mm. The distance between the shafts is 80 mm. Gears spline fit, steel 40X, diameter 150mm, thickness 28mm.Tractor power about 12 hp, 540 rev/min.

Productivity 4m3/hour.
Warranty period forshredders 3 years!
