Crusher of plant residues PRN-4, 5, Zaporizhzhya region.

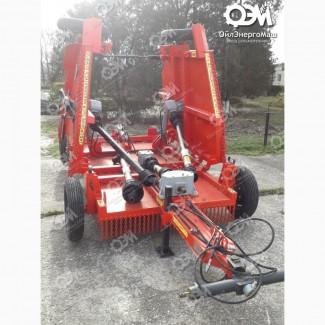

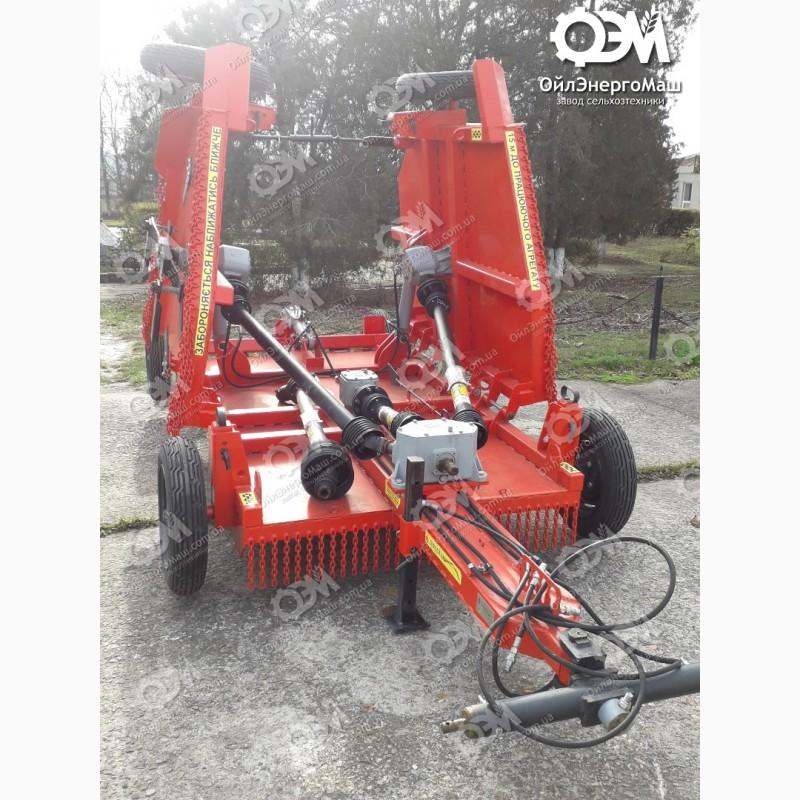

Crusher of plant residues PRN-4,5

The shredder is intended for crushing plant residues after harvesting corn,sunflower, rape and their uniform distribution over the surface of the field.
• Effectively destroys weeds and pests.
• Provides optimal and economical use of grain harvesting equipment.
• In the working position, the central frame and side sections move on supportingwheels, this ensures copying of the soil relief, convenience of regulation and stability of the height of the residue cut.
• Reducers and cardan shafts produced by "BONDIOLI & PAVESI" Italy.
• 3-section unit. The side sections in the transport position are raised vertically.

Technical characteristics of PRN-4,5

The name of the parameter and size.
Unit of measurement
Norma

Engine powertractor kW / hp.
120 - 150

Construction width of capture m
4.5

Working speed km / h
10.0
(//tractor-service.com)
Productivity ha / h
4.5

Cut height mm
to 50.0

The rotation frequency of the PTO tractor rpm
1000

Overall dimensions in working position: 196

длина

mm

5450

width mm 5200

height
mm 900

It is aggregated with tractors of class 30 kN,
equipped with a separate aggregate hydraulic system
MTZ-1220, T-150
