Carts for reapers, Universal cart LAN-2A, Kirovohrad region.

Carts for harvesters

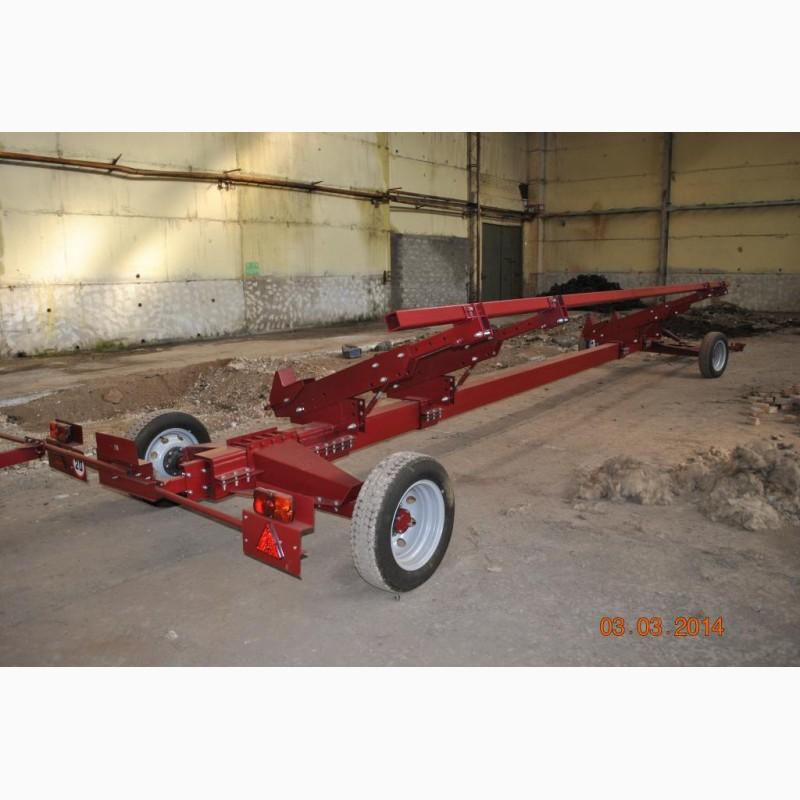

The universal trolley LAN-2A is intended for the transportation of grain, corn and sunflower headers directly by the combine itself, equipped with a towing device. Appropriate use for the transportation of harvesters with a width of grip from 7.32m to 9.15m.
Wheeled trolley, two-axle. Wheelbase - 7.77m. Singlewheels are used (195/70-R15).
The rear axle is rigid. The front axle is pivotable, and, in addition, it has the ability to swing in a vertical plane to get around road bumps.
The central beam is made of two channels No. 16, forming a closed box and strengthened from the deflection with a sprengel.
The cart, depending on the need and order, can be equipped with two to four adapters for convenient placement of the harvester. Adapters have the ability to move along the axis of the cart and are adjustable by the angle of inclination. On the adaptersuniversalnye or special headsets are installed. The degree of mobility and design of these elements allows fixing the harvesters of most known designs. If necessary, it is possible to make headbands for new harvesters.
The trolley has good mobility. When turning, the cart follows the trajectory of the combine itself, which is important when maneuvering.
The cart is equipped with light signaling.
Proven design, produced since 2011.
Carts can be unloaded assembled or partially disassembled, several units per car.(//tractor-service.com)

Basic technical data and characteristics
The type of trolley is two-axle trailed.
Carrying capacity 3700 kg
The maximum speed is 20 km/h.
Overall dimensions, no more than: 168
длина, м 12,75
width, m 2.10
height, m ​​1.00
Mass, kg 940
