Hinged tooth harrow-harrow Quivogne (Kivon), Dnipropetrovsk region.

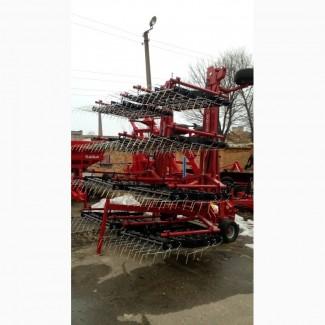

Hinged tined harrow Quivogne harrow-harrow

It is intended for harrowing the soil immediately before sowing, for combating germinating weeds, destroying the soil crust and aeration, especially on heavy, flooded soils. The use of the HET harrow allows you to reduce the cost of herbicides or in some cases completely abandon them.
Low traction requirement and high operating speed ensure high productivity.

This tool with a working width of 12 meters is aggregated with MTZ tractors of traction class 1.4.

The width of capture is 12 m.
Hydraulically folded.
Transport width 3 m(//tractor-service.com)
Two hydraulic cylinders for moving the harrow into the transport position.
Teeth 7 mm thick and 480 mm long have 6 installation options.
Each section with a width of 1.5 m.
The number of teeth is 432
The power of the tractor is 120-130 hp.
Productivity - 9.6 - 12 ha/hour.
Weight - 1800 kg.
4 wide supportwheels for adjusting processing depth
