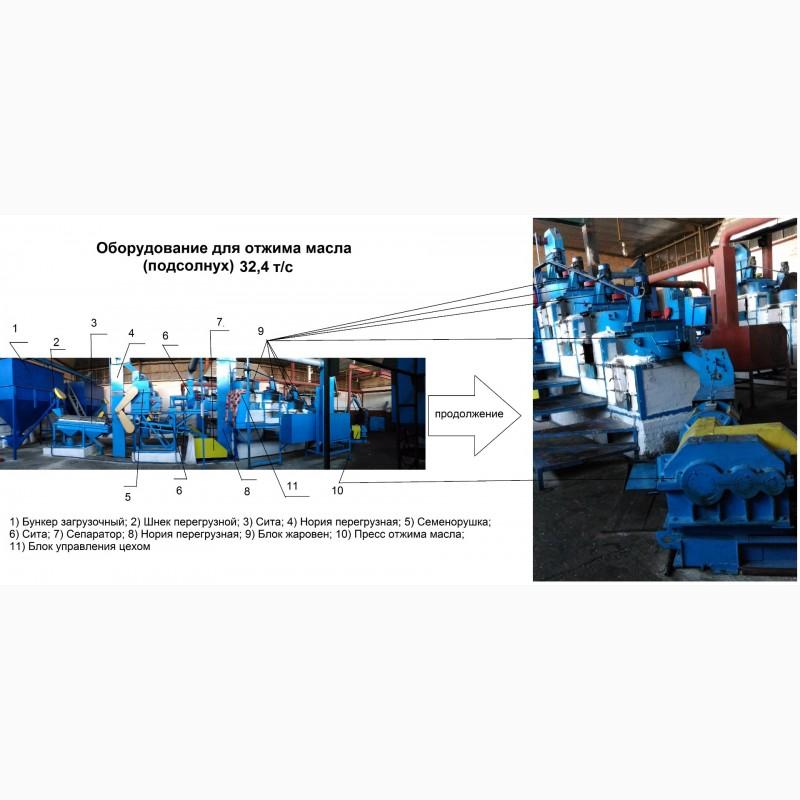

Oil press plant (sunflower) 32.4 tons per day, Cherkasy region.

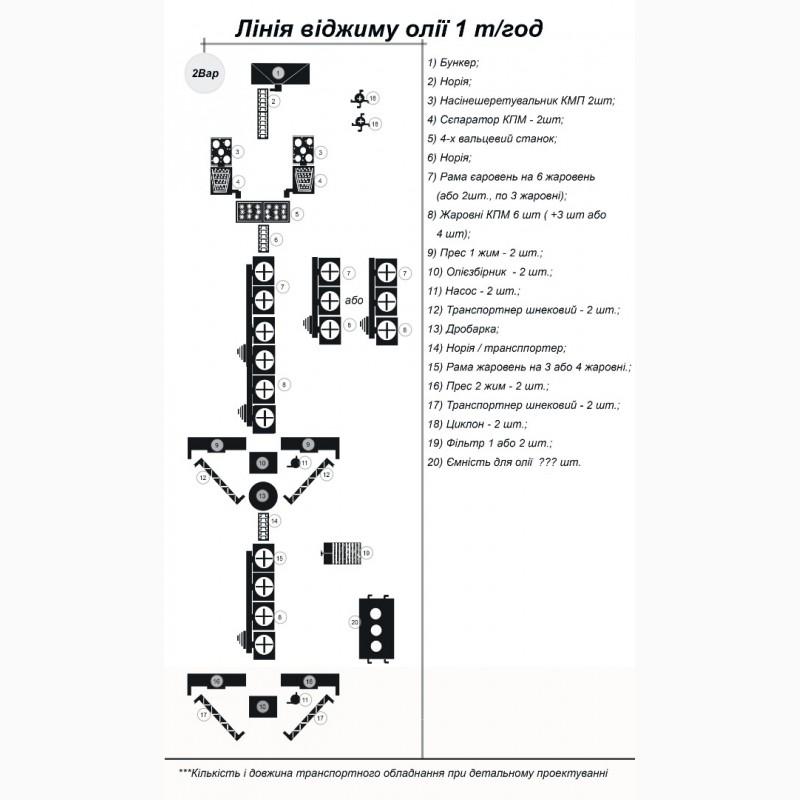

The complex is mounted in the technological sequence of operations+dozhim:
— loading ofsunflower seeds into the loading bunker;
— delivery of sunflower seeds through the noria to the seed drill;
— crushing of sunflower seeds in a seed mill;
— separation of fallen seeds into two fractions
— core and husk;
— grinding, seed kernels;
— transportation of the pulp before its pressing; (includes processes of moistening and subsequent heating with continuous stirring. Heating of three-stage roasters due to burning of husk);
— feeding the ball into the press;(//tractor-service.com)
— pressing, filtration and collection of oil.
And also a repeated cycle of additional pressing (second pressing) heating and repeated pressing.

Name: Complex for the production of sunflower oil OVOR-450 (expanded for large capacities)
Productivity, kg/h: per sunflower 450
Final oilinesscake 1 squeeze, % 7-10
The final oiliness of the cake 2 squeeze, % 3-7
Installed power, kW 196.5
Occupied area, m² 520
