Sunflower harvester. 147

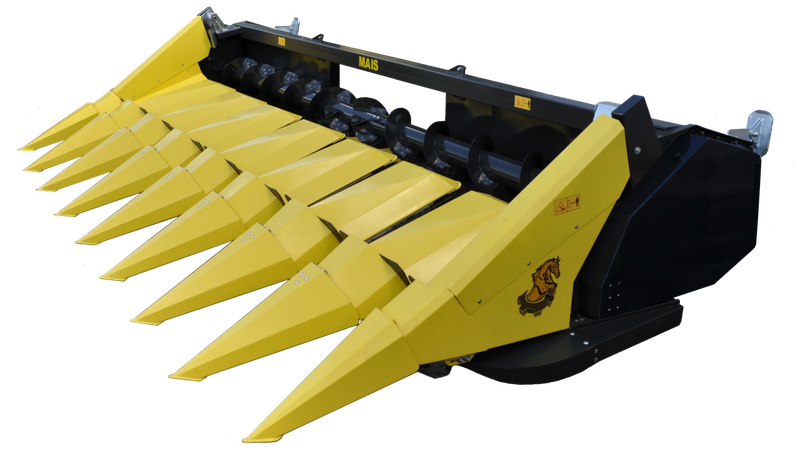

Reapers. Sunflower reapers. Corn reapers. Rapeseed table. Attachments for of sunflowers, soybeans. Carts for harvesters.

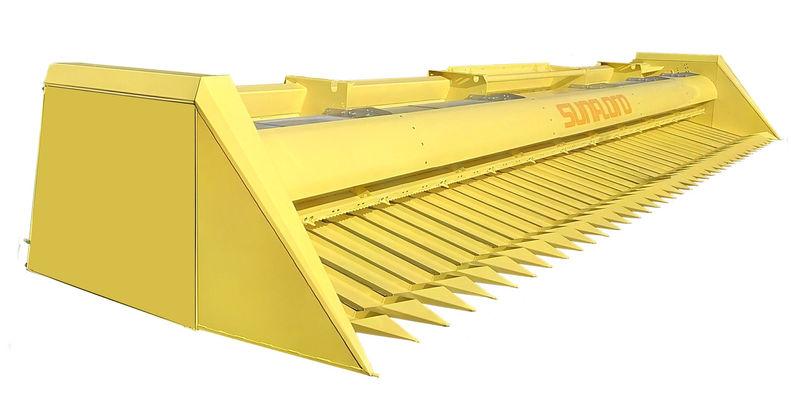

Sunflower harvester Sunfloro New.Sunfloro Shaft SUNSPEED
Rowless harvester, analogue of Zaffrani.
Sunfloro New-6m
Sunfloro New-7.4 m
Sunfloro New-9.2 m
Sunflower harvester PRIMERA-6/7.4/9.
Sunflower harvester ZhSN-6/7,4/9,
The equipment cuts the sunflower under the basket. The hopper is less than a percent clogged. The leaves remain on the ground without falling into the hopper.
The auger is protected by a safety clutch.
Reapers are available in different configurations.
It is possible to install the Pro-Drive 85MVv GKF cutting device manufactured by the Schumacher plant (Germany).
The reliability and quality of the harvester, confirmed by years of work, puts it on the first place in the agricultural machinery market.

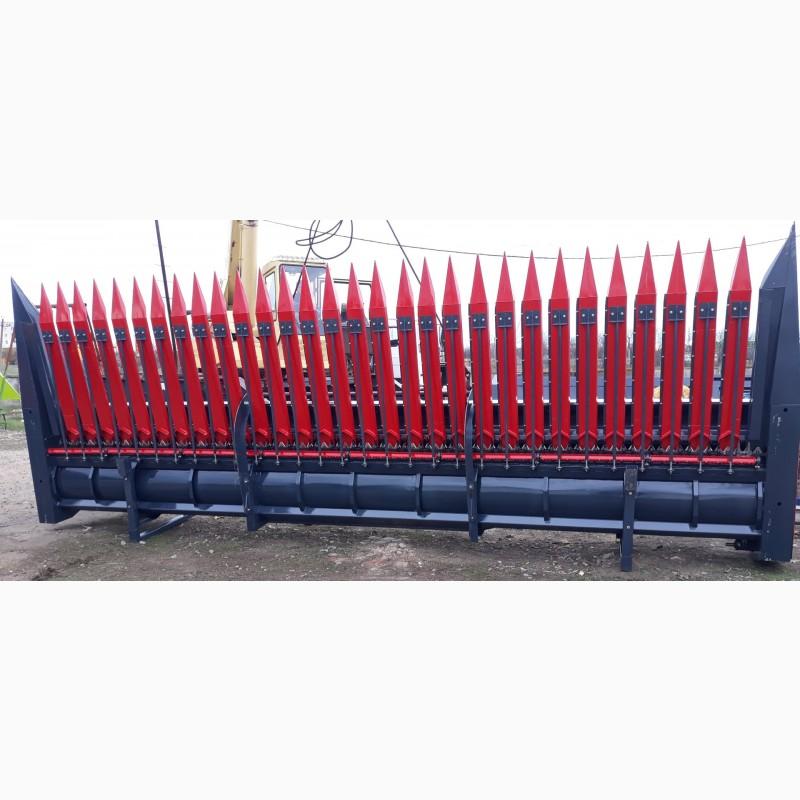

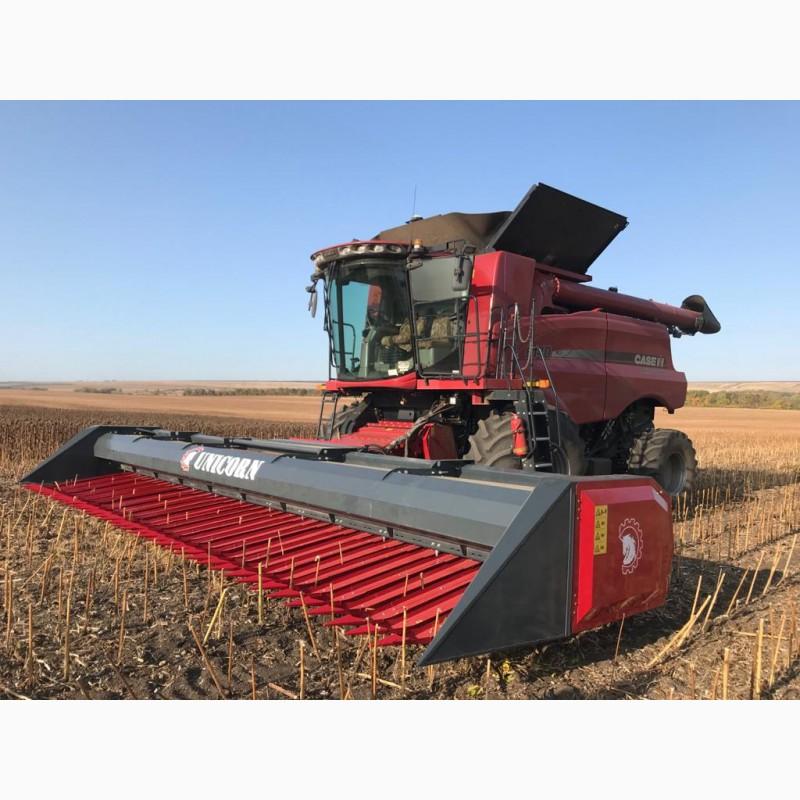

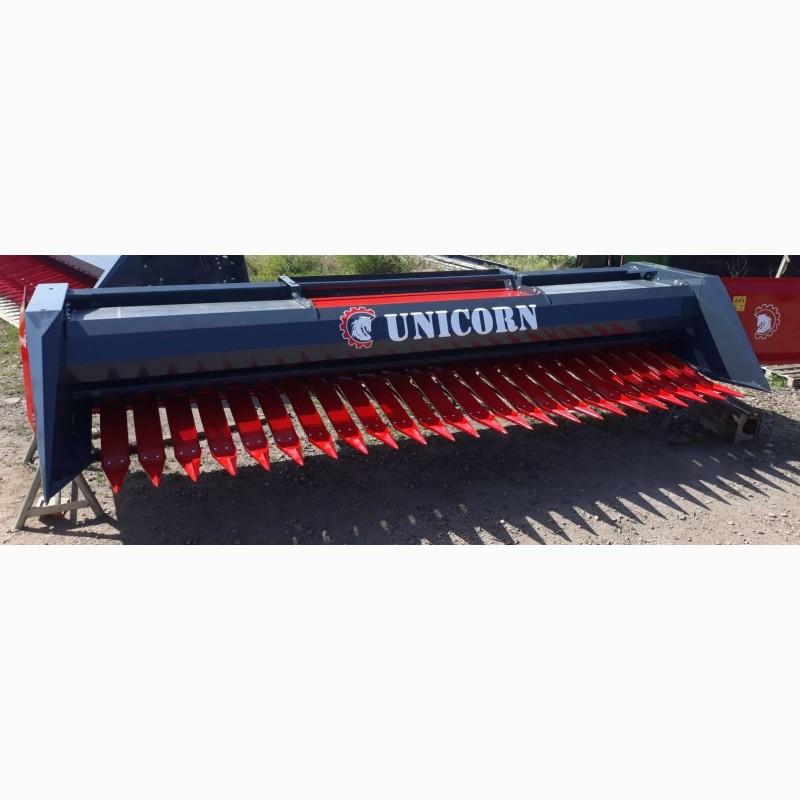

UNICORN SUNFLOWER HARVEST
DISTINCTIVE FEATURES,
TECHNICAL IMPROVEMENTS AND IMPROVEMENTS
FRAME: the improvement of the frame design allowed to increase it.
strength and stiffness. Corrected angles and mutual distances
arrangement of load-bearing beams and finger beam. Reinforced braids were tied together.
the frame at critical points, thereby providing minimal static.
deflection of the frame as a whole. Many small nodes have been replaced by sheet details.
complex configuration, manufactured on high-precision imported(//tractor-service.com)
CNC equipment. This reduced the total number of welds, reducing
internal stresses from friction in frame elements.

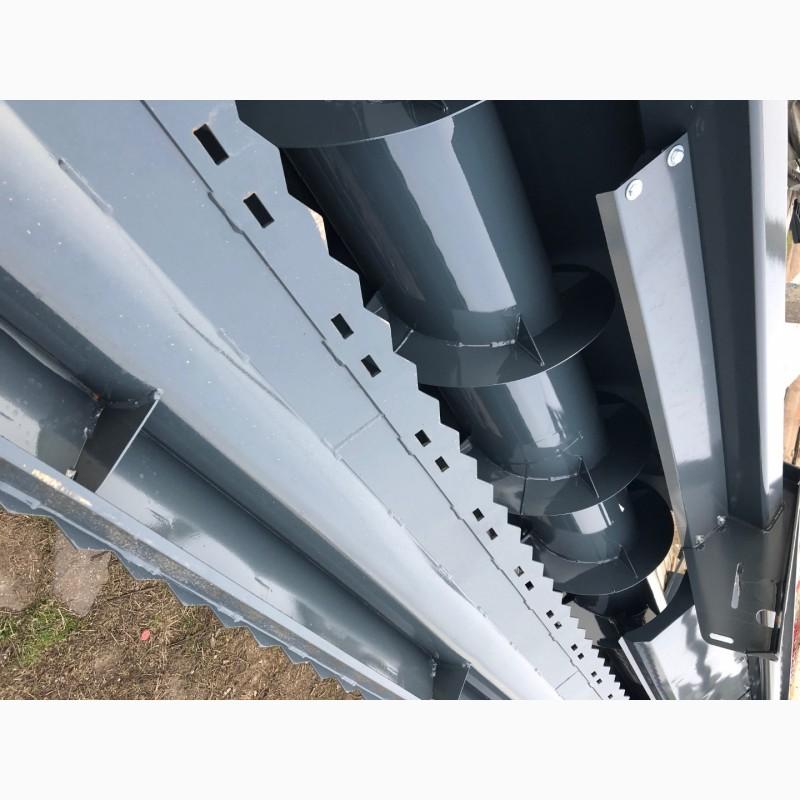

SCREW: the design of the screw is reinforced with additional partitions, in
in the form of rolled plates, and elongated support coils. The auger is protected
with a safety friction clutch, which is installed on a spline
of the shaft and limits the torque on the auger in the event of stones hitting и
other extraneous objects into the zone of the ego's work, thereby protecting everything.
rotating parts from overloads and destroyed.

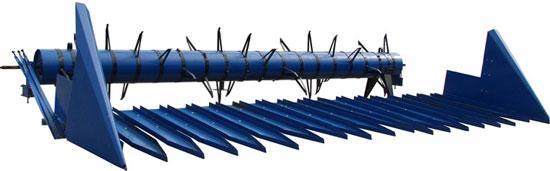

REEL: the weight of the reel is reduced by 70 kg. due to the use of the pipe
larger diameter, while its rigidity has increased. Long shafts
replaced with trunnions, which added strength to the structure and increased its life
exploitation The winder is equipped with feed fingers serving
for active cleaning of the working space between lifters from clogging
masses.
From above, the auger is closed with shields with a diameter of 205
штампованных отверстий 3мм, которые
they prevent mass transfer through the screw and
reel, and also serve to provide
safety of personnel in the process of work
The product is certified.
Warranty 24 months.
