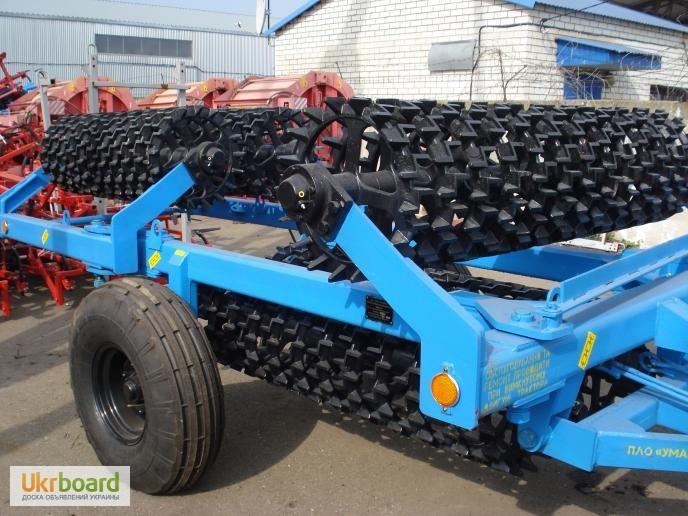

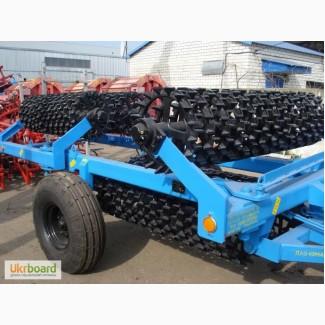

KZK-6-03 ring-spur skating rink, Kyiv region.

Ring-spur roller KZK-6-03Rollers KZK-6-03 are intended for pre-sowing and post-sowing soil rolling, crushing of surface soil crust and partial leveling of plowed land fields The roller works at a humidity of 12-25%, the hardness of the soil in the treated layer is from 0.25 to 0.6 MPa.
The frame is made of a square fully tensioned pipe.

Distinctive features:
- due to its owntransport wheels allows you to quickly move from field to field and over considerable distances;
- reliable bearing units.

Technical characteristics of the rink KZK-6-03

It is aggregated with tractors of traction class 1.4
Semi-trailer type
Gripping width, m 6
Productivity, ha/time 3.54
Working speed, km/h 6 - 10(//tractor-service.com)
Transport speed, km/h 20
The outer diameter of the ring, mm: 520

Overall dimensions in working condition, m:
length 3.58
width 6.00
height 0.97

Overall dimensions in transport condition, m:
length 4.93
width 2.32
height 1.57
Average service life, years, not less than 7
Total mass, kg 2740
