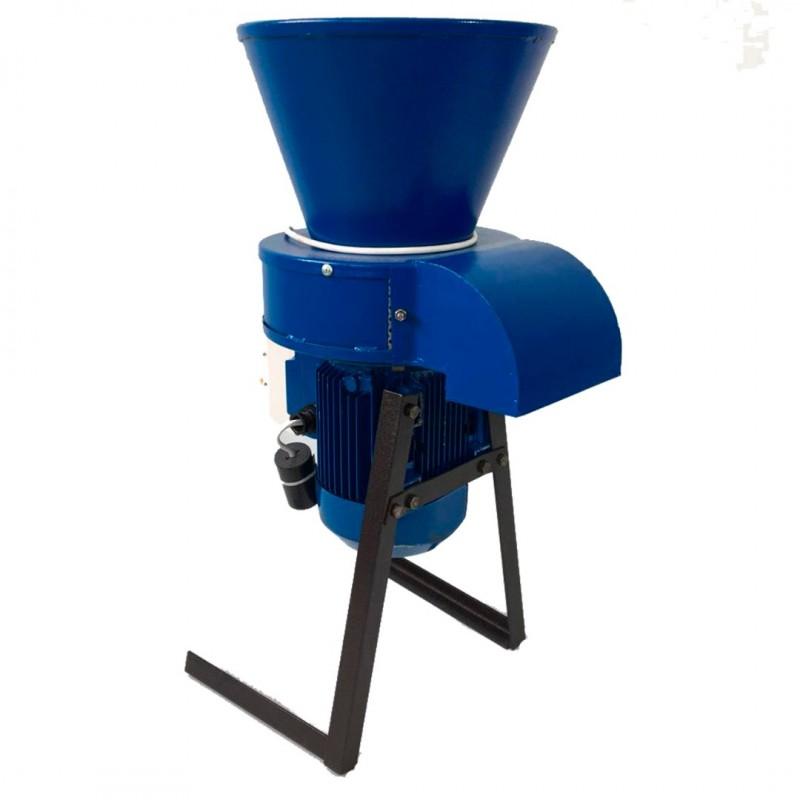

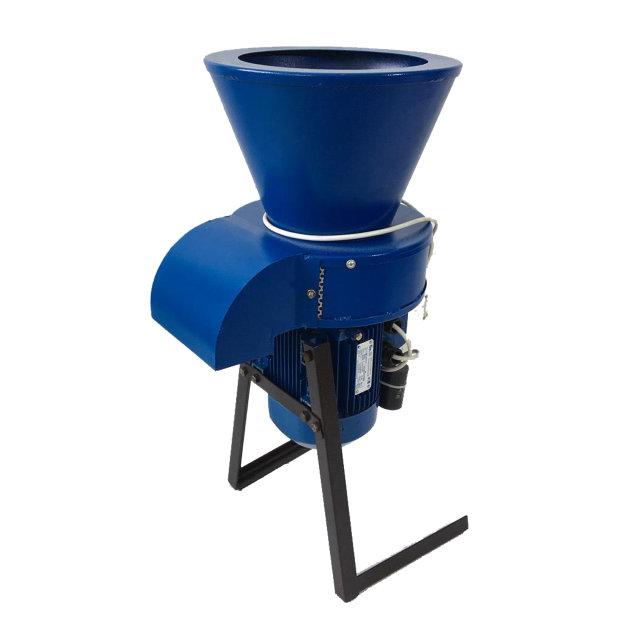

Straw grinder for granulation Sadok, Vinnytsia region.

Crusher for granulation.

Straw chopper.
This model of grass cutter was made for grinding dry grass for granulation. Grinding fraction up to 5 mm. A mesh with a hole diameter of 4 mm is installed at the outlet. If necessary, you can install a grid with the required hole diameter and get the fraction of the crushed product suitable for you.

 Complete set:

Supporting legs with a body.
Knives

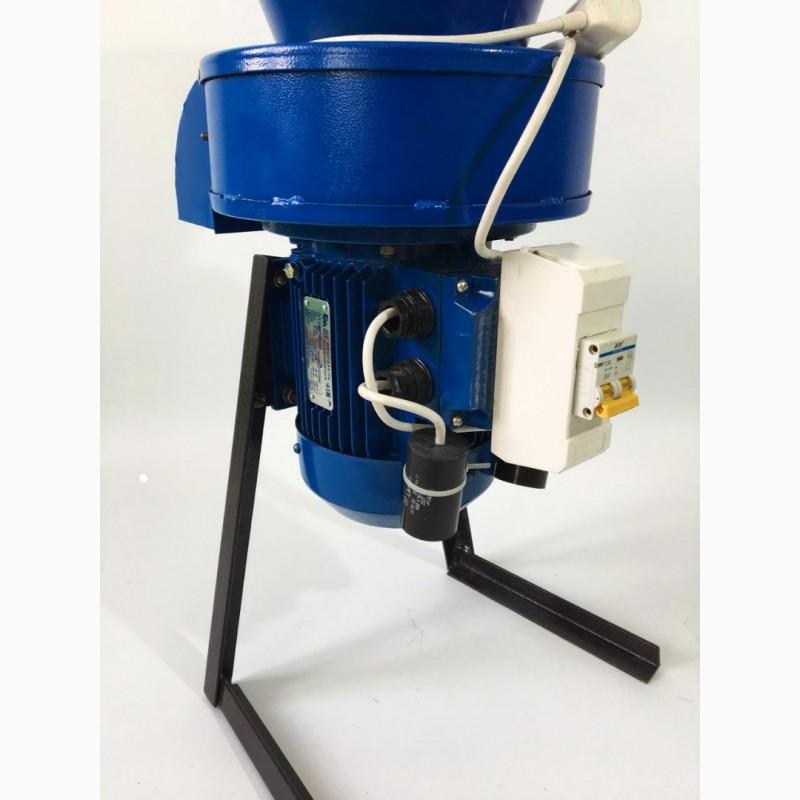

Electric motor 1.5 kW / 3000 rpm. min with electrical equipment placed on it
Operating instructions, warranty document for the electric motor
Principle of operation:

The grinder works from a 220 V network. The engine is started by the idle start button. Through the hole in the hopper, the crushed product is fed (during operation, a flow is created, with the help of which the grass gets into the chopper without effort). Inside the case, the knives produce grinding, after which the crushed grass mass flies out. For more comfortable work, to avoid dust, we recommend attaching a bag to the outlet.

It is important to know! (//tractor-service.com)

The capacity of the shredder is up to 40 kg / hour (with a fraction of up to 5 mm). When using a mesh with a large hole diameter, productivity increases. The ground product must be as dry as possible, this is the main factor on which productivity depends.

http: / / sad-ok.com / izmelchitel / colomopodribnyuvach-pid-granulyaciyu-cadok

Characteristics
Main attributes
Manufacturer   Own production
Country of manufacture Ukraine
Type of drive Electric motor (from mains)
Engine power 1.5 (kW)
New condition
Main
Voltage 220
Productivity 40
