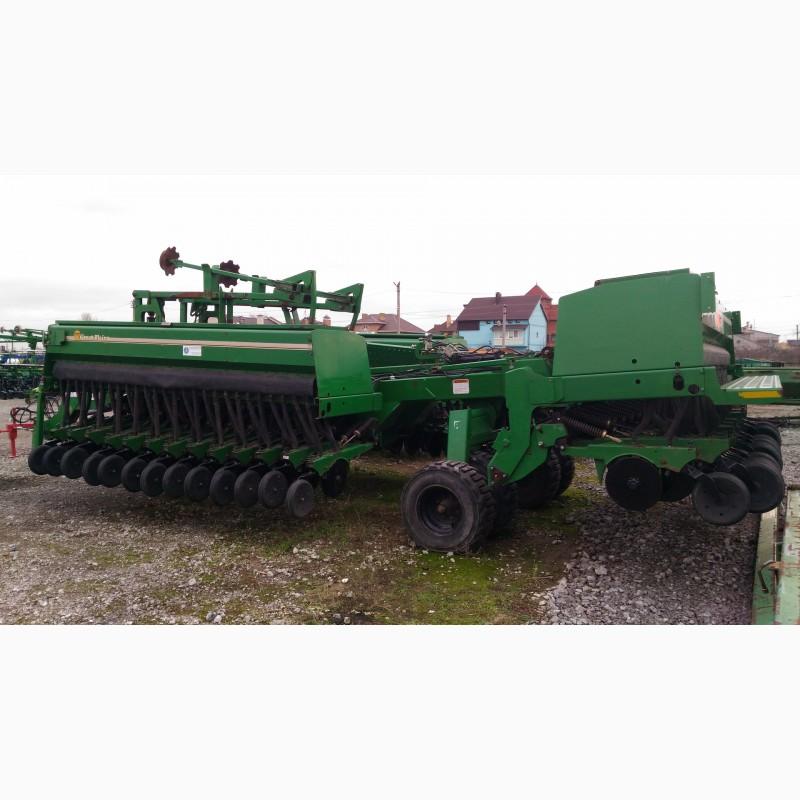

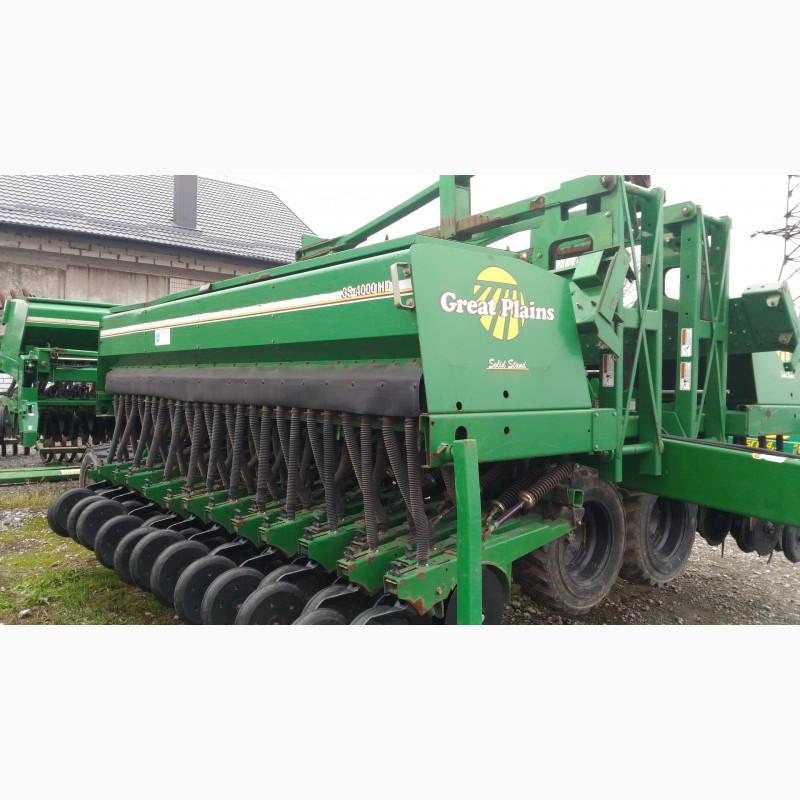

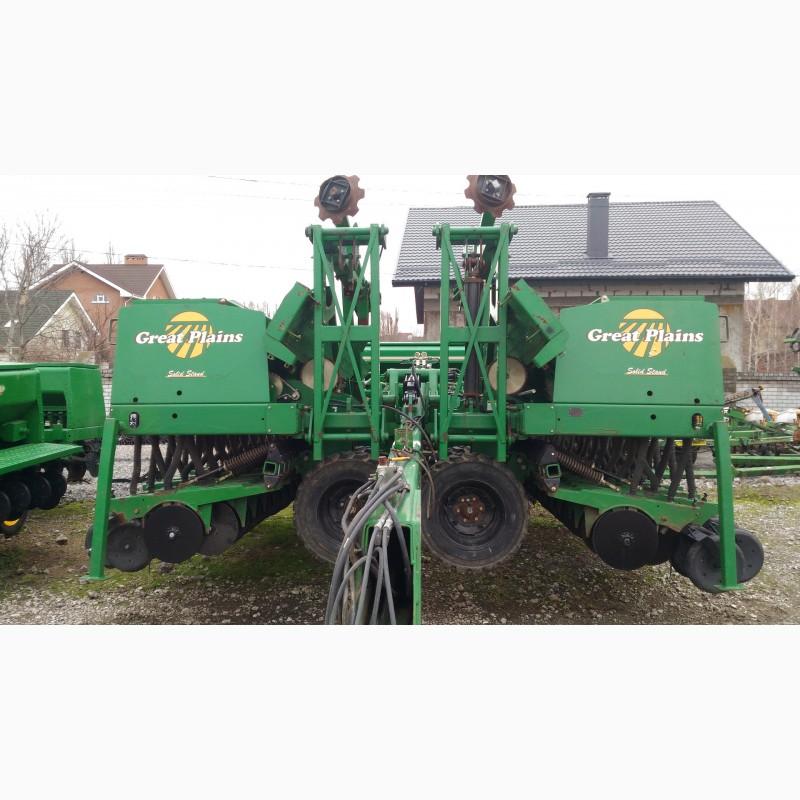

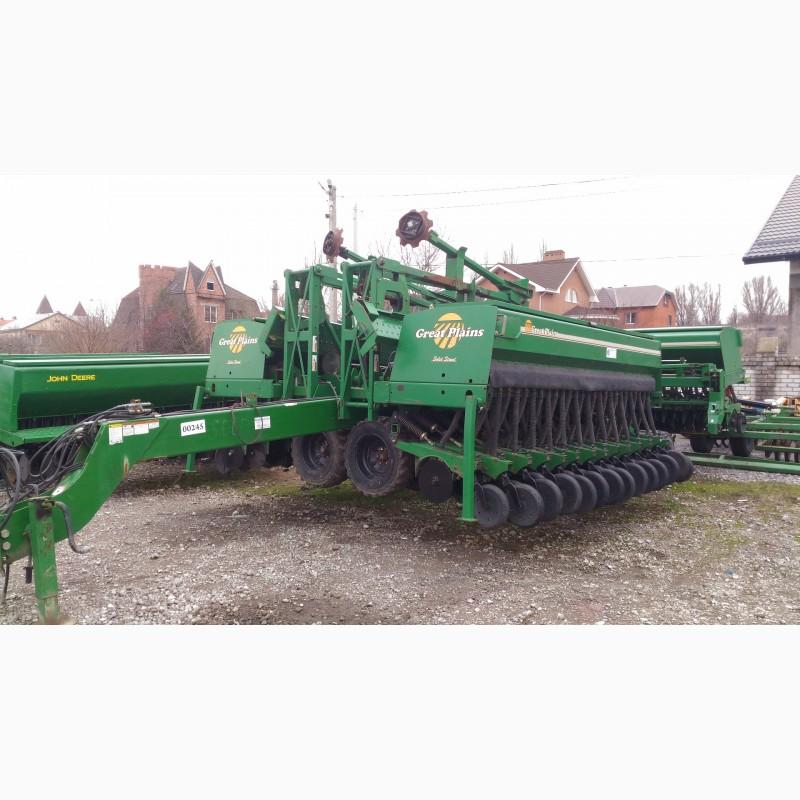

Grain seeder Great Plains 3S-4000 HD, Dnipropetrovsk region.

Seeders coils - exclusive seeding coilsGreat Plains company provide the highest accuracy of sowing seeds. It doesn't matter whether you sow small, large or fragile seeds, our time-tested seeding devices are guaranteed to accurately provide the rate of sowing you need, gently and evenly, regardless of the working speed of the sowing movement.

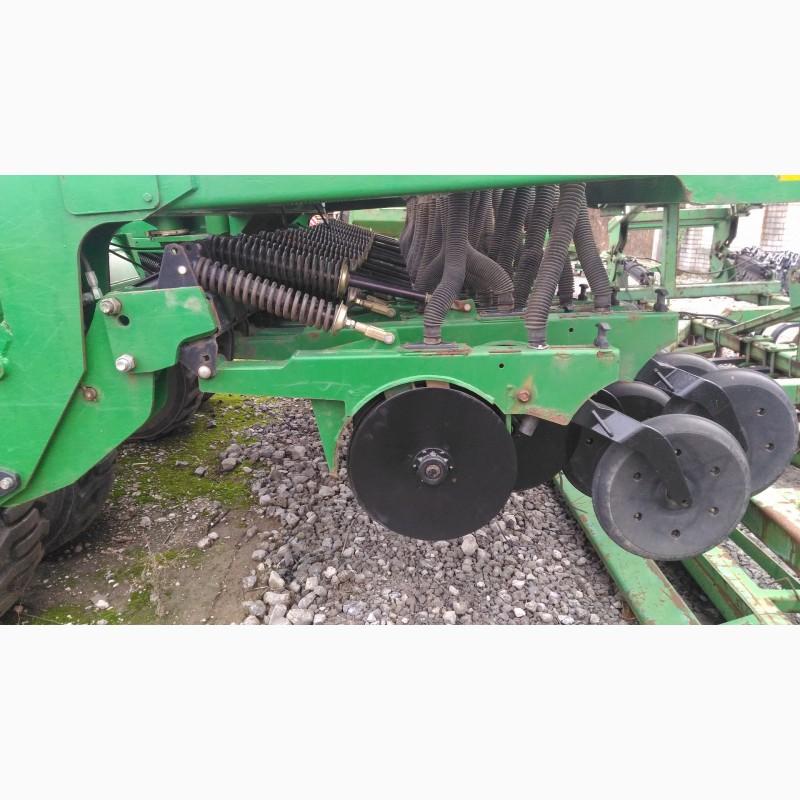

На Great Plains planters use 2 hydraulic cylinders on each section, which allows to adapt the intermediate frame on which the coulters are installed to the uneven surface of the field and specific sowing conditions. This design also allows the intermediate frame to move independently of the seed boxes and supporting wheels.wheels.

NAME - SEEDERS WITH HYDRO-REGULATION OF SOIL PRESSURE: 12.2 M
MODEL - 3S-4000HD
TYPE - 3-section folding planter
MAIN PURPOSE - Minimum cycle - Zero cycle
INTERROW – 15.4 CM, // 19.1 CM, // 25.4 CM
QUANTITY OF FANS - 78 – 15.4 cm, // 63 – 19.1 cm, // 48 – 25.4 cm
WHEEL SIZE - 11Lx15 (side section) - (HD-265/70B16.5 Skid Steer) /// 12Lx15 (axle) //// (HD-395/55B16.5 Skid Steer)
TRACTOR POWER (MIN.) – 180 L/S
WEIGHT (IN AVERAGE) - 7484-10446 kg(//tractor-service.com)
OVERALL DIMENSIONS
WORKING WIDTH – 12.2 M
WIDTH (TRANSPORT) – 4.6 M
LENGTH (TRANSPORT) – 10.56 M
CLEARANCE (TRANSPORT) – 43 CM
HEIGHT (TRANSPORT) – 2.2 M
SERIES OF SOILERS - Series 00HD
CUTTING DISCS - NO
VOLUME
MAIN BUNKER VOLUME – 4581 L
BOX FOR SMALL SEEDS - 338 L
RESERVOIR FOR FERTILIZERS - Up to 45% of the volume of the seed box
