Device for diagnostics of hydraulic systems Parker ServiceMan Plus SCKIT-155-0-00, Odesa region.

Parker ServiceMan Plus diagnostic tool SCKIT-155-0-00

Basic set. With the help of this set, you will be able to test the hydraulic system and quickly find problems, thereby saving up to 50% of repair time and simple equipment.

The pressure sensor allows you to measure the pressure at any point in the hydraulic system. The reaction time of the pressure sensor is 1ms, which allows you to detect sudden pressure jumps (water hammers), which are not recorded by ordinary manometers. This is important, since hydraulic shocks quickly destroy hydraulic system elements (valves, pipelines, hydraulic cylinders, RVD).

These measurements are recorded on a flash drive (nanoflash). These data can be easily viewed on a computer using the SensoWin program, which is included on the disk. The program displays measured values ​​in the form of graphs.

The whole set is packed in a convenient durable suitcase.
If desired, the set can be equipped with additional pressure sensors, a flow sensor, a speed sensor, and a temperature sensor.

Composition of the set:

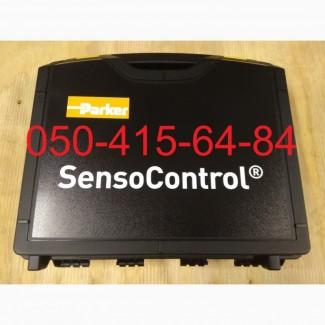

1. Plastic case
2. Parker Service Man Plus 2-channel device 3. Pressure sensor 0... 600 bar SCP-600-74-02 4. Connecting cable 3 m SCK-102-03-02
3. Датчик давления 0… 600 бар SCP-600-74-02
4. Соединительный кабель 3 м SCK-102-03-02
5. Adapter (M16x2 female - M16x2 female) SCA-EMA-3 / 3(//tractor-service.com)
6. Test hose 1,500 mm (M16x2) SMA3-1500 ServiceMan Plus Diagnostic Tool

Прибор для диагностики  ServiceMan Plus

The ServiceMan Plus device has two outputs for sensors. To measure the pressure drop, just press the button. A quick comparison of actual and set values ​​is also possible.
Serviceman is very reliable and insensitive to contamination, which allows you to use it in difficult operating conditions. The digital indicator allows you to accurately read the readings.

The ServiceMan Plus device has small dimensions and weight: an ideal choice for mobile use.

Serviceman with a 2-inlet power supply unit with a PC interface. The output for data transfer allows you to connect the device to a computer. The data seal can be used for mandatory documentation of measurements according to the requirements of ISO 9001. In memory of min. and max. peak values ​​are saved. Pressure peaks that can lead to equipment failure are defined.

Attention: Serviceman is not intended for indicating negative values ​​of pressure and volume flow. If the SCPT sensor is connected to it, only the pressure value transmitted by the sensor can be displayed. To measure the temperature, you need to use a separate temperature sensor.
Serviceman, like all devices of the SensoControl series, has a sensor recognition function. Thanks to this, it is not necessary to carry out long-term adjustment work.

The device automatically scales measurement ranges and displays measurement units on the display. This approach prevents incorrect measurements and long-term adjustment of the device.

Our company BTS-GROUP is an official representative of the manufacturer Parker, which is confirmed by a DISTRIBUTOR'S CERTIFICATE, which you can get acquainted with by requesting it from our specialist. As a distributor, we bear warranty obligations, as well as provide technical advice on products purchased from us.
