Vibrating press for the production of pavement tiles R-400 Start (400-500 m2/shift) Sweden, Kyiv

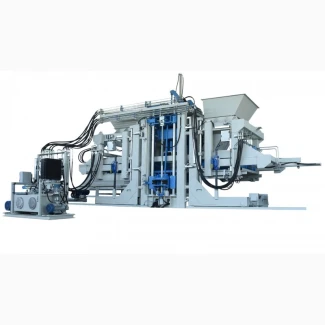

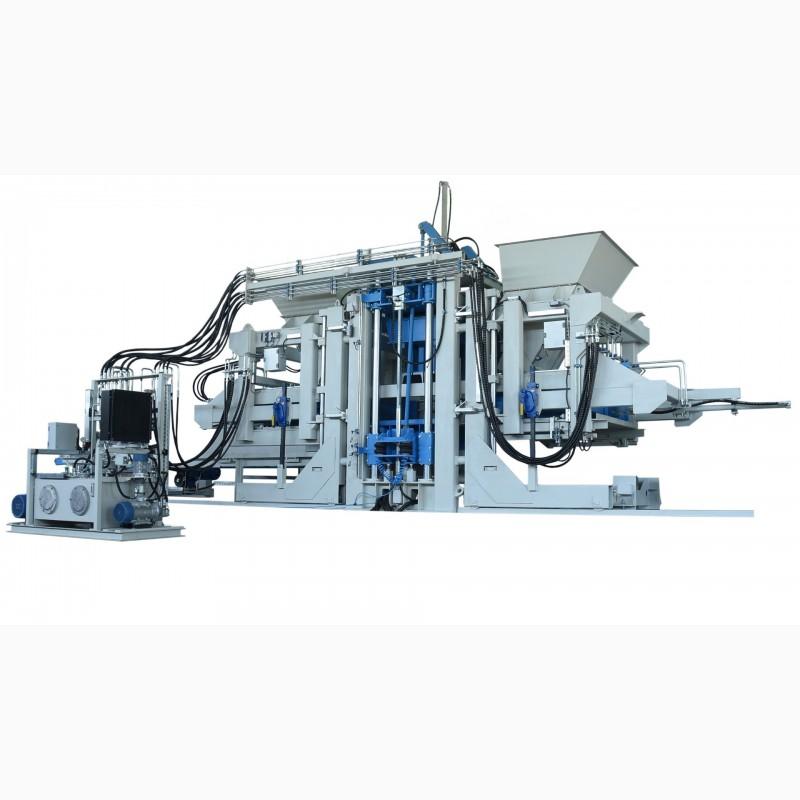

Stationary block machine vibropress for pavement production tiles
and other products Sumab R-400 (Start option). Sweden.

Vibration system Knauer, Germany.

Pallet dimensions: 1200x550 mm.
Usable area max.: 1100x500 mm.

Productivity (per shift (8 h)):

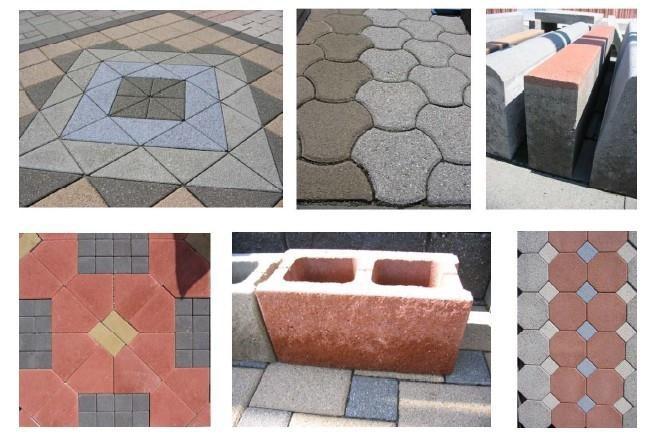

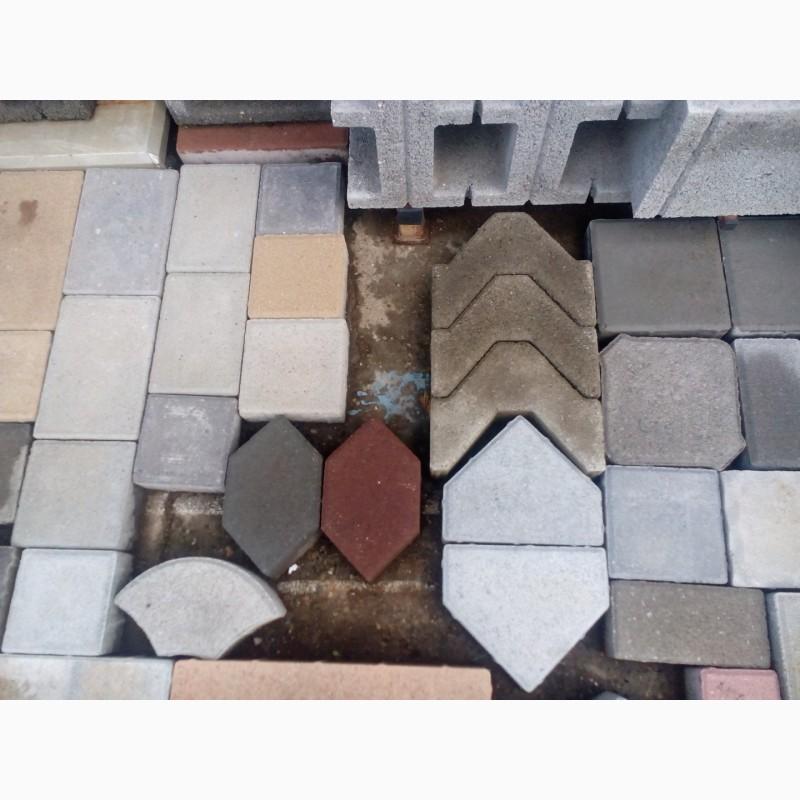

550-640 m2 paving stones (10x20x6 cm) color/colorless

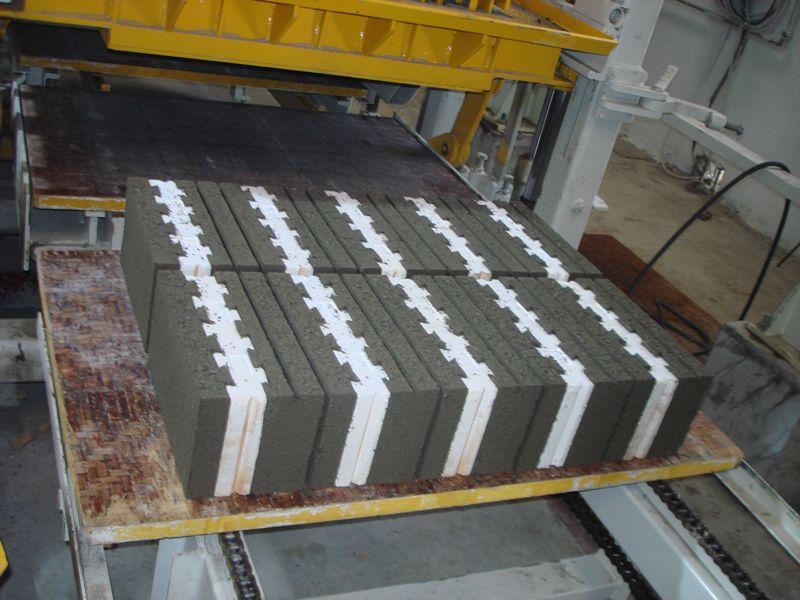

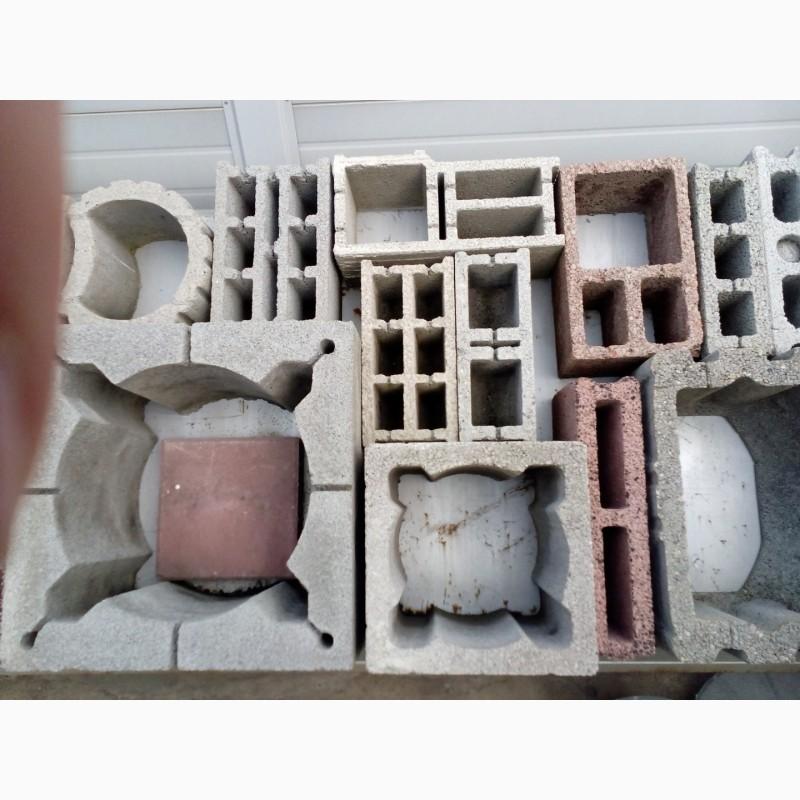

6912 pcs. hollow blocks (20x20x40 cm)

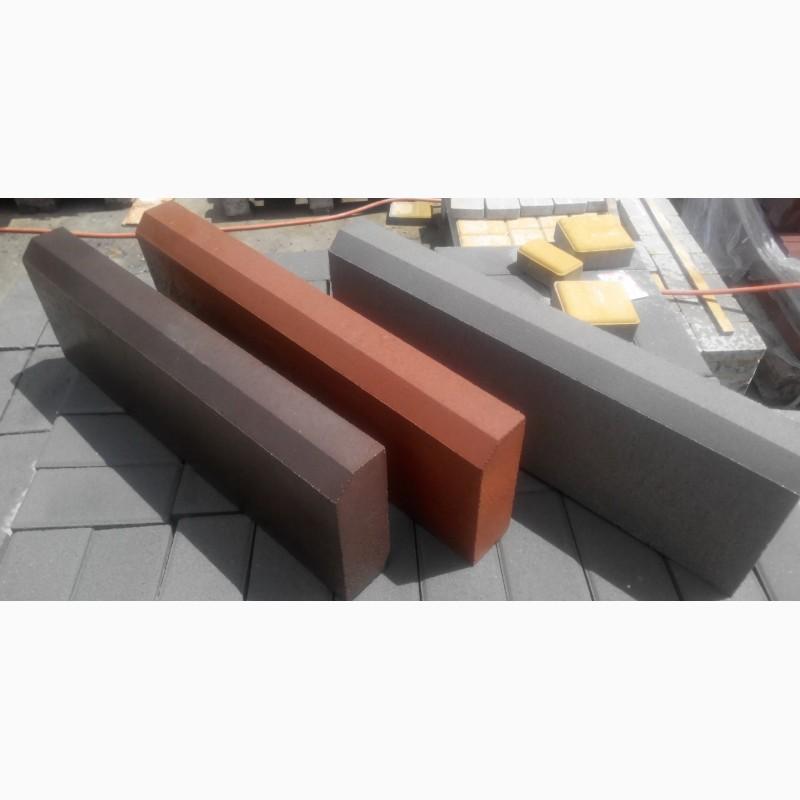

1600-2000 pcs. of curbs depending on the size of the curbs, the presence of an additional front layer.

Technical data of the Sumab R-400 machine
The maximum height of the product: 330 mm
Minimum product height: 25 mm.

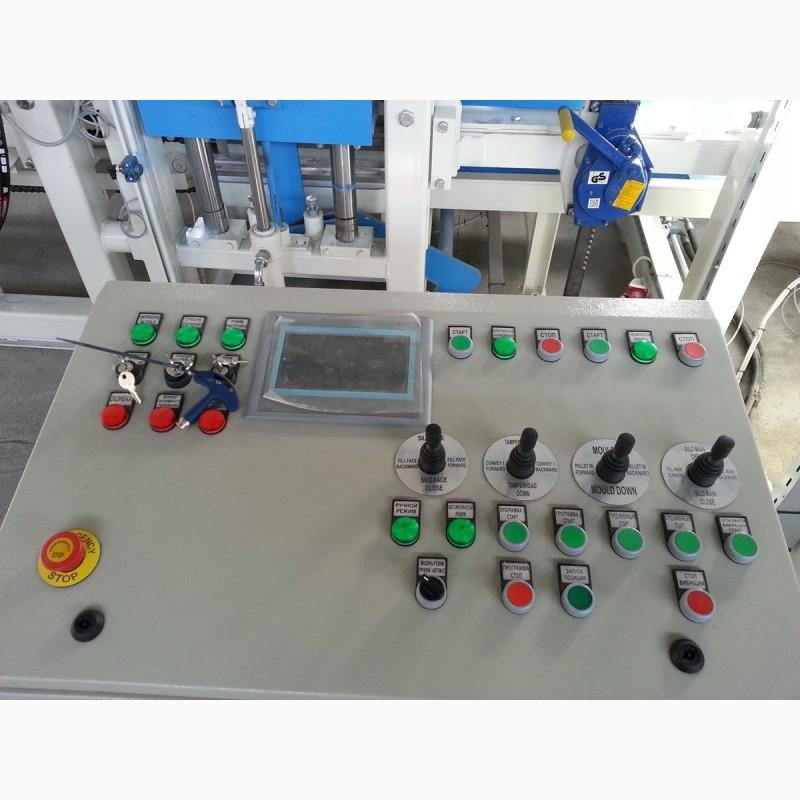

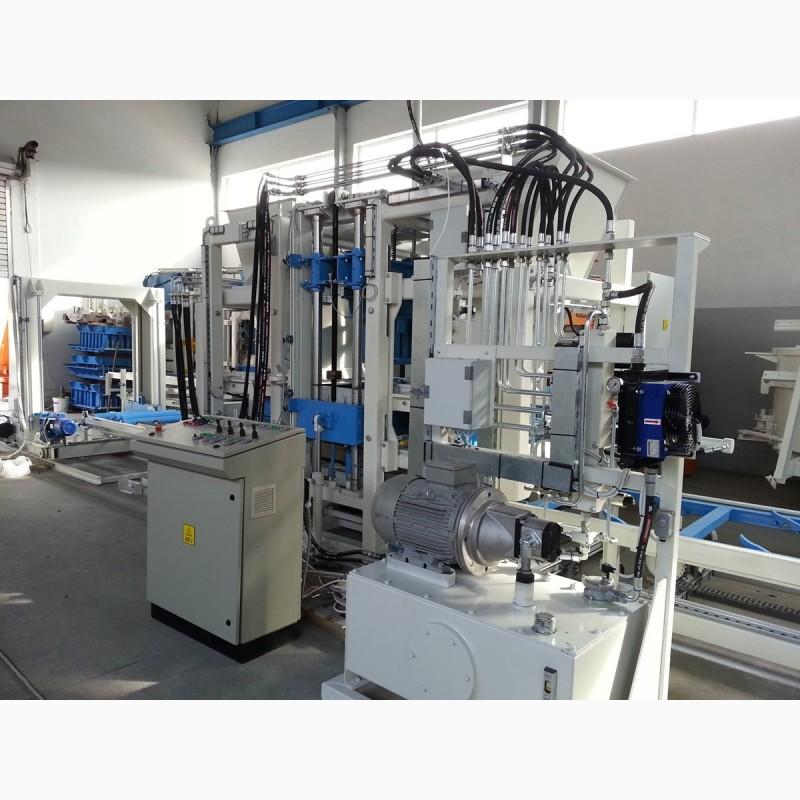

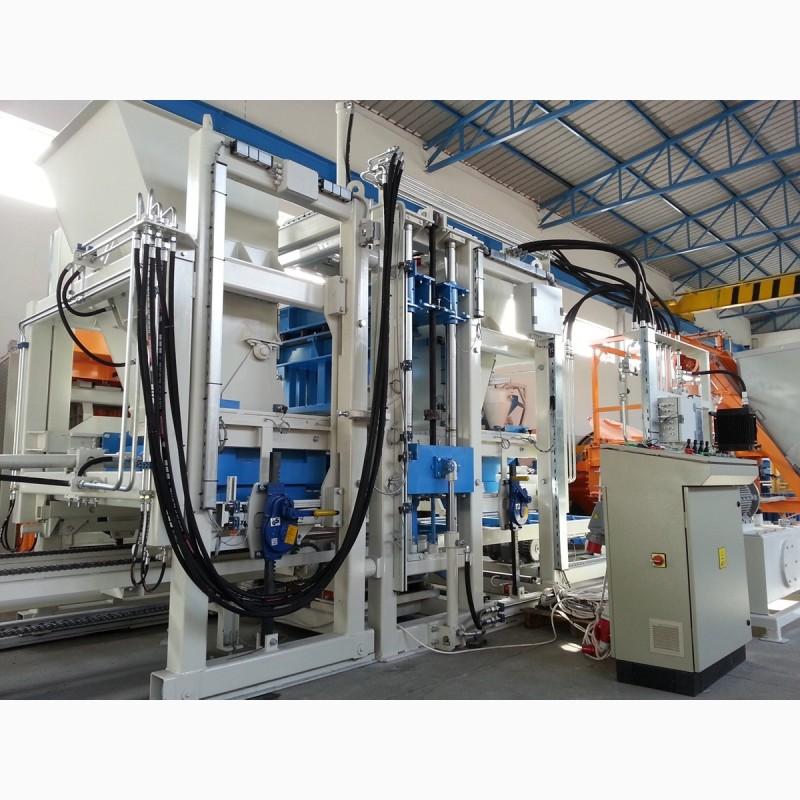

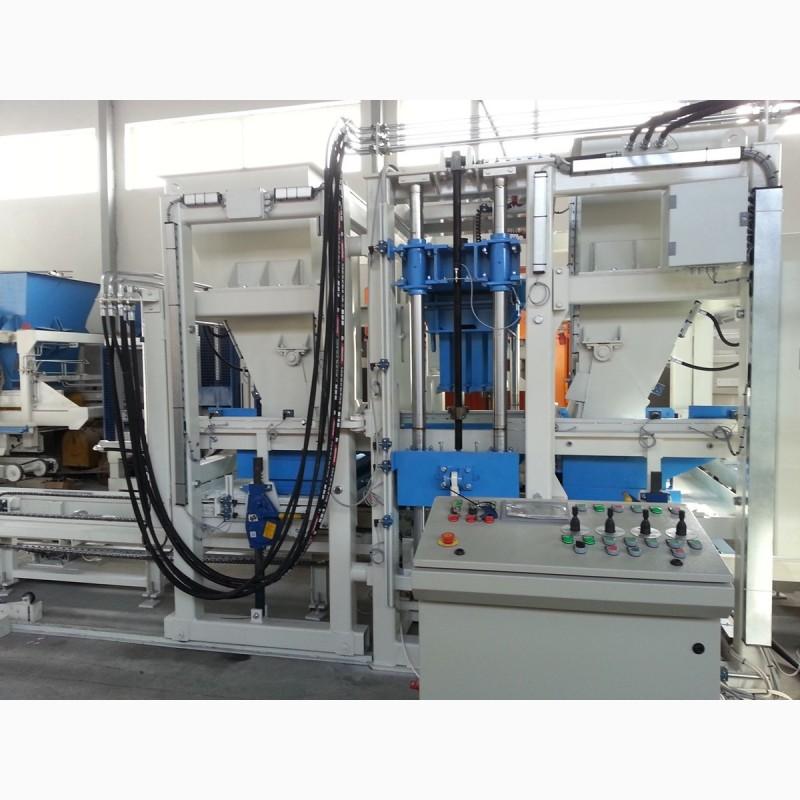

Stationary block machine Sumab R-400 with automatic control (equipment for automatic operation is included in the package, including PLC, sensors, hydraulic valves for switching from manual to electric drive).

Vibration system with frequency regulation Knauer, Germany.

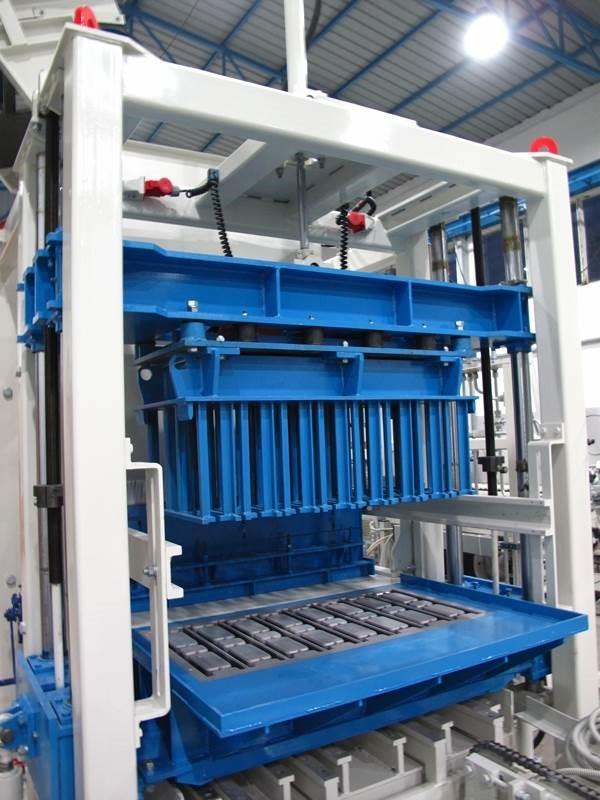

Press form for vibration pressing.
A separate mold is required for each type of production.

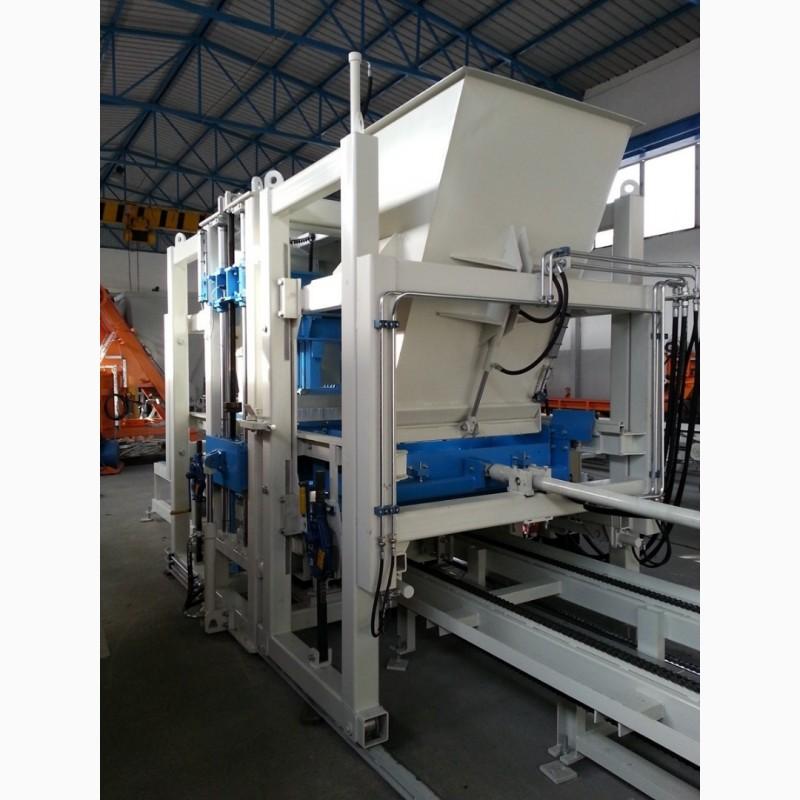

Equipment for the face layer (color and solid surface) of concrete products (hopper for face mix, frame and filling hopper).(//tractor-service.com)

Conveyor belt for moving fresh ready-made concrete products from block machines with smooth start/stop and speed control, length 7 m.

Pallet insertion device with pallet storage for Sumab R-400 with soft start/stop and speed adjustment.

Pneumatic clamp of molds for Sumab R-400.

Safety equipment for the Sumab R-400 machine - fences and switching equipment.

Additional vibration in the main part of the punch.

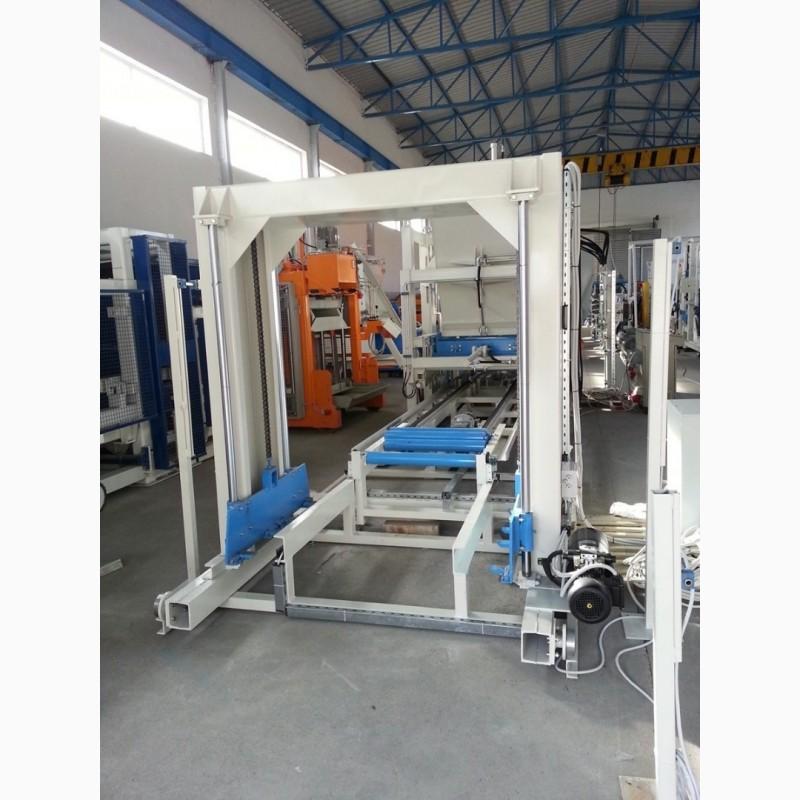

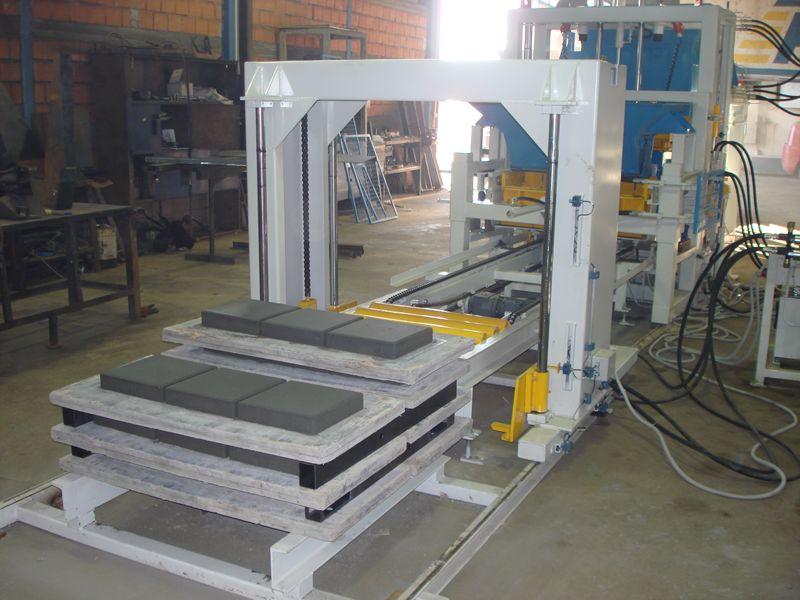

Device for receiving and lifting pallets with fresh products, with 2x6 pallets for paving stones - Stracer robot (stacker/stacker robot)
(2x6 pallets = 12 pallets in total), (1200-1400) x550 mm pallet size,
1200 mm max. stacking height.

Warranty: 24 months for the supplied equipment.

Thanks to the use of European technologies, the equipment has a high level of durability and reliability.
Delivery of the equipment is carried out exactly on time.
More than 20 years of reliable partnership.

The equipment works in Europe, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.
Over the period of the company's activity, more than 500 concrete plants and plants for the production of paving slabs, curbs and reinforced concrete with various capacities and components were delivered.

To receive a commercial offer, please send an application to our email address.
