Cultivator KGSh-4, KGSh-8, 4 with springs and roller KGSh-8, 4 KGSh-12 Cultivator KGSh-8, 4, Kharkiv region.

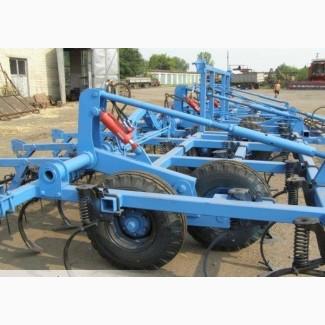

Cultivator KGSH-4, KGSH-8.4 with springs and roller KGSH-8.4 KGSH-12 Cultivator KGSH-8.4 with springs and roller KGSH-4 KGSH-8.4 KGSH-12 Cultivator KGSH 8.4 is intended for continuous soil cultivation, forpre-sowing treatment, as well as for loosening on untreated stubble. Processing with a cultivator in one pass, perform a set of necessary soil processing operations both during the main and pre-sowing cultivation (forcontinuous processing soil). Guaranteed high-quality cultivation of the soil by the cultivator, reliability of the design, ease of maintenance and adjustment, high productivity, moderate prices for the cultivator and high-quality consumables with a high service life are the key to the timely performance of the necessary work with the highest quality and the best result.
They are equipped with four single-axle wheeled mechanisms equipped with two-wheeled balancing carts with a 700 mm interaxial base, which ensures maximum stability of the cultivator during operation and accurate processing to a given depth.

The working clearance of the cultivator (from the bottom of the frame to the sole of the foot) is 710 mm, which, together with the 4-way arrangement of working bodies with the smallest distance between adjacent ones in a row of 690 mm, completely excludes clogging of the subframe space with harvest and plant residues. And with an intercenter distance of 230 mm between adjacent flat-cutting paws with a grip width of 310 mm (mutual overlap of 80 mm), 100% cutting of any weeds is ensured.

The significant (more than 120 kg on the toe of the paw) force of the safety spring allows you to work very hard soil to a strictly specified depth.

Finishing is provided by a 3-row spring-tine harrow and a 255 strip rolling roller with adjustable pressing force and a 100mm strip track step.

The range of processing depth is smoothly regulated from 0 cm to 17 cm (and deeper).
(//tractor-service.com)
Adjustment of the depth of the cultivator stroke is provided by 4 screw screeds, which change the angle of inclination of the hydraulic wheel mechanisms. At the same time, the hydraulic cylinders are completely closed during operation, and completely open during transportation. Regardless of the depth adjustment, the transport clearance will be greater than 300 mm. Access to the control elements is convenient, as all points are located near the front bar of the cultivator. The sectional device of the frame allows the wings to move by 5?7? up and down, which makes possible high-quality processing of slopes, depressions and hills, accurately copying the relief.
The required power is 172 L.S.

КГШ-4.0 80÷90 1800 / 1500 16
KGSh-6.5 130÷160. 3100 / 2600 28
КГШ-7.0 140÷160 3300 / 2800 30
KSh-7,4 150÷170 3500 / 3000 32
KGSh-7,9 160÷180 3700 / 3200 34
KGSh-8,4 160÷200 4000 / 3400 36
KGSh-10.4 200÷220 5700 / 4900 45
KGSh-11 220÷260 6100 / 5300 47
КГШ-12 260÷320 6500 / 5600 51
