Aggregate pulverizer AGR-2, 4 Plant-producer PrJSC VOSHOD, Kirovohrad region.

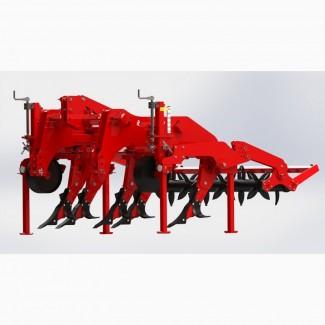

AGR-2,4 deep compactor unit

The AGR-2.4 deep loosening unit is intended for deep soil loosening and providing the deepest layers with air and moisture without turning over. It is used for sowing agricultural crops.

The adjustment of the processing depth of the unit is carried out with the help of two toothedkatkov, located behind, and located in front of the supporting wheels. Thanks to this, the adjustment of the unit to the required depth is carried out by changing the position of thesupport wheel screw.
• good aeration of rain and melt water;
• the naturalness of the soil increases several times. Water permeability increases by 20%;
• prevents the development of soil erosion;
• conditions are created for "absorption", the accumulation of significant reserves of moisture that is in the soil and air, as well as its redistribution;
• deep penetration of moisture and its accumulation in the lower layers, which contributes to a good development of the root system and an increase in productivity by 12-18%;(//tractor-service.com)
• due to a decrease in the density of the soil, the resistance during the passage of tractors with a second implement is reduced, which leads to the saving of fuel and lubricants and a reduction in the burden on the service.

Technical characteristics
Spring type
Working width of capture, m 2.4
Productivity, ha/time 2.4
Depth of tillage, cm 16-35
Mass, kg 1450
Number of working bodies 5
Required power of the tractor, hp 150-180
