Packing line in bags + big-bags (hybrid), Kharkiv region.

The equipment is intended for packing in big-bag bags up to 1000 kg.
The original gripping system with a weighing and dosing unit has a wide range of adjustments, which allows you to load big bags of various sizes and configurations. It is recommended to move the weighed products with the help of a forklift, a scissor lift or a stacker.

At the request of the client, it is possible to install a centrifugal fan for inflating big bags.

Features:

• Storage bunker:
Hopper volume: V = 5.5 m3 (can be increased to 7 m3);
Height: adjustable from 3200 mm to 3900 mm with the help of retractable legs with latches;
Length: 3700 mm;
Width: 2350 mm.

• Weight basket for big bags:
Equipped with a gripping system with a unit for weighing and filling big bags;
Height: adjustable from 1400 mm to 2100 mm with the help of a retractable tray with latches;
Permissible weight of big-begs: up to 1000 kg;
Type of big bags: 2 or 4 slings.(//tractor-service.com)

• Centrifugal fan (inflating unit for big bags):
Rotation speed: 3000 rpm.
Device protection class: 54 IP
Voltage: 220/380 V
Power: 1.1 kW
Current frequency: 50 Hz
Type of electric motor: asynchronous
Rated current consumption: 2.7 In (A)

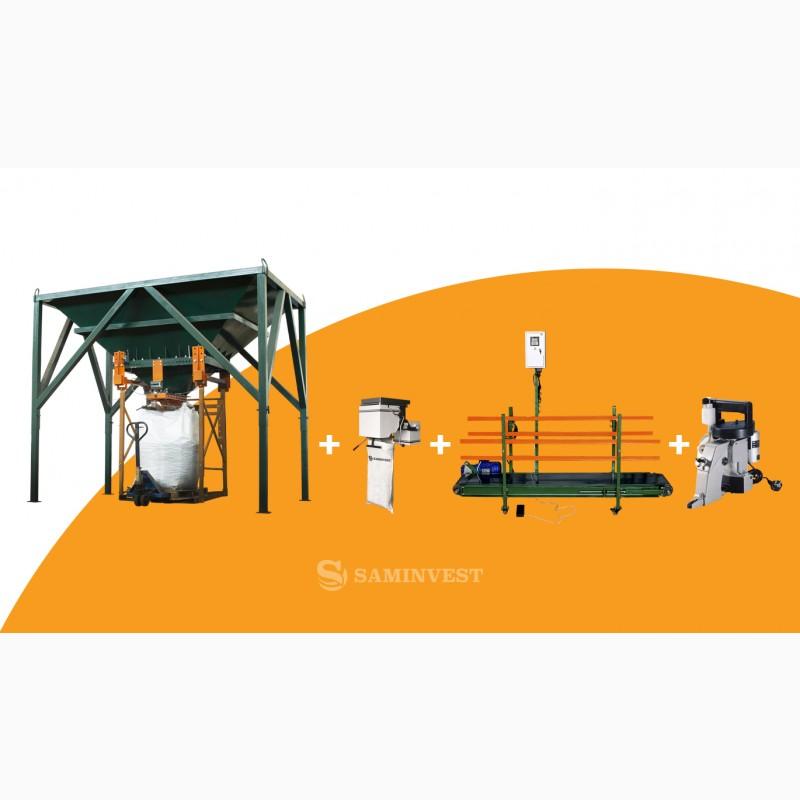

If it is necessary to pack into bags of 10-50 kg and run by, a mechanical weighing dispenser, a reversible discharge conveyor (adjustable in height, width and movement speed) and a bag sewing unit are additionally connected.
