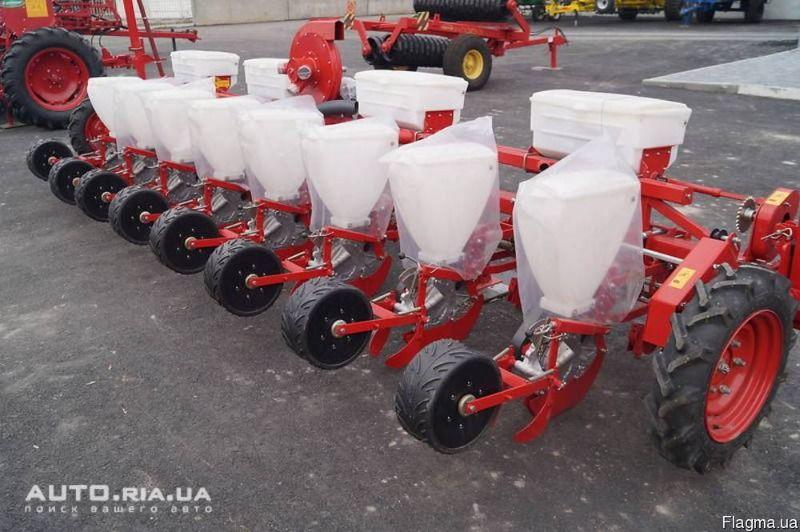

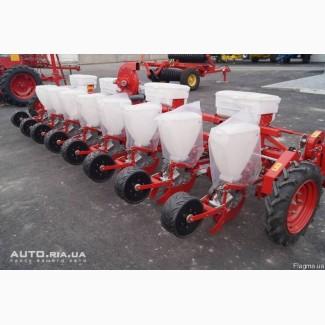

Universal pneumatic seeder UPS- 8 seeder UPS-6-01, seeder ups, the seeder is intended for accurate sowing of calibrated, coated and ordinary seeds of corn, sunflower, castor, sorghum, fodder beans, beans and other seeds close to them in size, with the simultaneous, separate application of granular mineral fertilizers.

It is aggregated with tractors of the 1.4 t.s. class.

Technicalcharacteristics of the UPS-8 seeder

Width of capture, m

5.6

Number of lines, pcs.

8

Row width, mm

450,600,700,900, 450*900,600*1200

Working speed of movement, km/h

3.6-9

Productivity, ha/h

2-5.04

Hopper capacity (total) cubic dm.

For seeds

161.6

For fertilized

180

Sowing rate:

For seeds, pc/m.

2-43

For fertilized, kg/ha

50-250

Seed embedment depth, mm(//tractor-service.com)

40-120

Dimensions in transport position, cm

680*210*301

Mass, kg

1454

Constructional features of the seeder

1. The fat-seeding system ensures the introduction of mineral fertilizers away from the row at a given depth, which practically excludes the harmful effect of fats on the seeds.

2. The design of the seeder allows sowing with a wide range of row spacing: 450, 600, 700, 900, 450*900, 600*1200

3. The design of the seeding device provides a wide range of sowing seeds of 2-43 pcs. per running meter, which allows sowing seeds of various field crops.

4. The device is equipped with a viewing window that allows you to observe the filling of the holes of the seeding disc with seeds and the position of the dropper during adjustment and operation.

5. A special hatch is provided for quick removal of seeds from the chamber of the seeding device.

6. The comb seed thrower ensures single-grain sowing.

7. To ensure the supply of the required amount of seeds from the grain hopper to the seeding apparatus, a regulating valve is installed, which ensures high-quality sowing of bulk seed materials.

8. V-shaped rolling rollerroller provides pulling moisture into the seeding zone, pressing the seeds to the soil, while leaving a non-compacted layer of soil above the seed, contributing to rapid seed germination.

9. In the seeding device of the seeder, stirrers are installed, which exclude jamming of seeds.

10. The disc shaft of the seeding device is mounted on rolling bearings.

11. The seeder is equipped with a more powerful marker (welded construction made of pipes with a square section of 42x42 mm) with a spherical disk of a larger diameter, with a variable angle of "attack", which provides a clearly visible track on the field and allows the operator to clearly maintain the joint spacing during sowing.

12. The axes of the support-drive wheels and discs of the seeding apparatus are maximally aligned, which allows you to more accurately copy the topography of the soil.

13. The presence of soil grips on support-drive wheelsколесах reduces slipping, which ensures the absence of sieves.

14. A new semi-automatic coupling was installed, which ensures a quick and safe connection of the seeder with the tractor.

15. The parallelogram suspension of the seeding section ensures uniform seeding.

16. The beam of the seeder frame is the receiver of the pneumatic system of the seeder and reduces the pulsation of the air flow, which contributes to more uniform sowing of seeds.

17. Completeness of the seeder with a transport device allows you to safely transport it from one field to another in accordance with the requirements for driving on public roads.

18. Upon the customer's order, the planter is equipped with a seed sowing control system.
