GRAIN LOADER (for any board with hydraulic cylinder), Kirovohrad region.

The on-board loader of seeding machines is intended for loading seeding units with grain,legume seeds, as well as loading seeding units and machines for applying mineral fertilizers with granulated fertilizers.
The loader is intended for hanging instead of the rear body on cars-dump trucks brands GAZ, ZIL, KAMAZ. Depending on the design, the loader is equipped with a hydraulic crane or hydraulic distributor to control its operation.

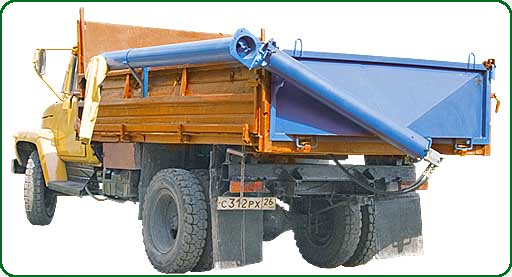

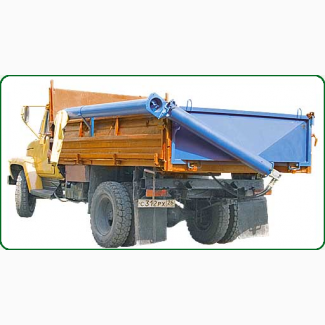

The on-board loader of sowing machines is a device in the form of a replaceable rear side of the body of a dump truck and consists of a hopper assembly, an auger, a folding auger, a damper, a hydraulic distributor, a hydraulic motor.
Principle of operation. When lifting the body of a dump truck, the transported material falls and falls into the receiving part of the screw conveyor. Driven by a hydraulic motorscrew conveyor moves the material to the loading window of the hinged auger, where it is poured into a directed place.
Parameters:
• On-board type;
• It is installed on dump trucks of the brands - GAZ, ZIL, KAMAZ;
• Weight of the loader (structural), not more than 190 kg;(//tractor-service.com)
• Transport speed, no more than 50 km/h;
• Dimensions of the loader (when hanging on a GAZ-53 car), mm, in the transport position - width - 2620, height - 3100
• Maximum loading height, mm - 4400;
• The maximum angle of lifting the car body, no more than 30;
• Productivity for 1 hour of the main time, t/h up to 25;
• The maximum frequency of rotation of the hydraulic motor, rpm 605;
• Warranty period of operation - 12 months;
• Service life up to 5 years; activities
