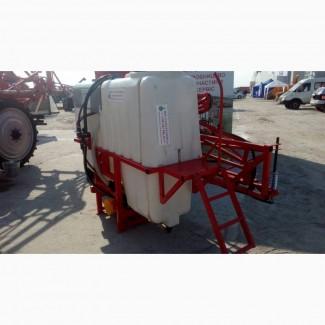

= Priming sprayer op-1000 l, Kiev region region

Навісний обприскувач ОП-1000 л штанга 12 м

Обприскувач навісний ОП-1000 л штанга 12 м
ПП Агротехніка є виробником причіпних та навісних польових обприскувачів

Одним з Хітом Продажу є навісний обприскувач на 1000 л , який виготовляється із шириною захвату штанги 12 м 14 м 16 м
= The sprayer comes in the assembled state, complete with the cardan shaft and the nozzles of the ZIP (nozzle in the collection angular and passing)

= Technical characteristics:

Performance per hour of time, ha/h 8.4 - 16.8
Working width of grip, m 12,00
pump of the firm Working speed, km/h 6-10 Agroplast (Польща) – 120 л/хв
Робоча швидкість, км/год 6-10
Working fluid consumption, l/ha 50-300 (// tractor-service.com)
Робочий тиск у нагнітальній магістралі, МПа 0.2-0.8
The height of the spraying above the surface treated, 0.5-1.2
Transport speed, km/h up to 15
Нерівномірність розподілу рідини по ширині захвату(коефіцієнт варіації), % До 25
= Deviation of working fluid consumption through a separate spray from all sprayers, 5%
= Tank capacity 1000 l

Design features:
1. The sprayer is equipped with a barbell bar with the mechanisms of regulation and stabilization of the horizontal position of the working bodies and protection against breakage in contact with the obstacle. The barbell has a pendulum system that is carried out with the help of floods.
The sprayer frame is made of high quality metal, a channel is used for the hinge of the bar, which gives reliable operation of the sprayer and rod in the working position.
A platform with stairs is installed on the sprayer frame, which gives convenience when filling the tank through the neck.
2. Lifting and lowering the bar is carried out with the help of a powerful and reliable chief winch passing the capacity of which is up to 900 kg, in which it is not possible to lower it.
3. The shape of the tank has a flat shape and provides its complete emptying at uninterrupted work pump. The full capacity of the tank is 1225 l, which includes 1000 liters of the main tank 200 l of the system for washing the system, which can also be used as the main tank (from the sprayer is installed 3-walking faucets) and a drinker for 25 liters.

= The sprayers are located on a large trading site on the Kyiv-Odesa highway in the village. Glevakha str. District, 55-D (near Krukhk), is available, self export
Delivery by our transport - 30 UAH. for km (one way calculation)
