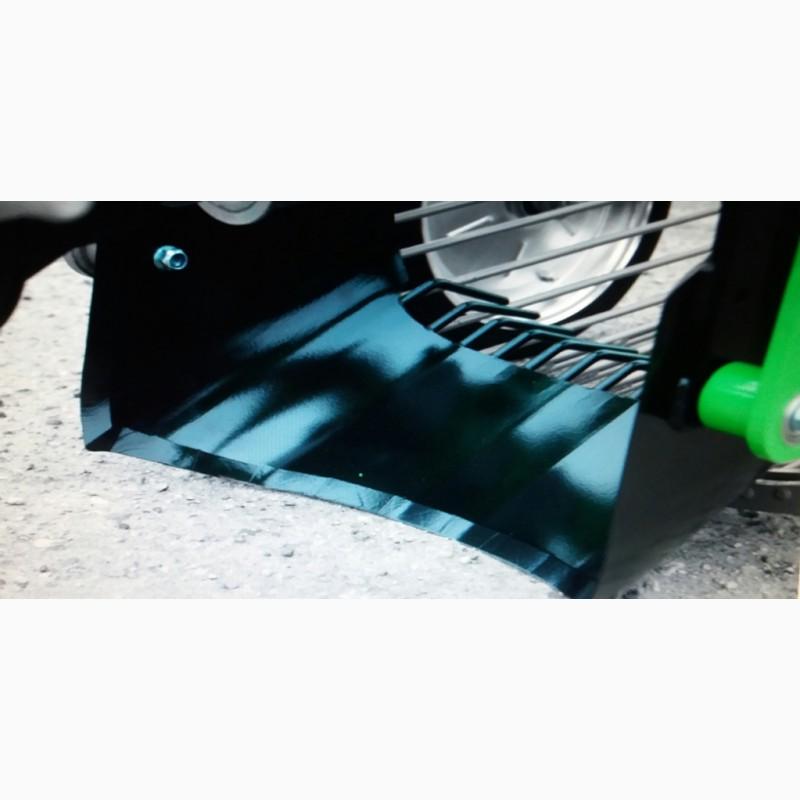

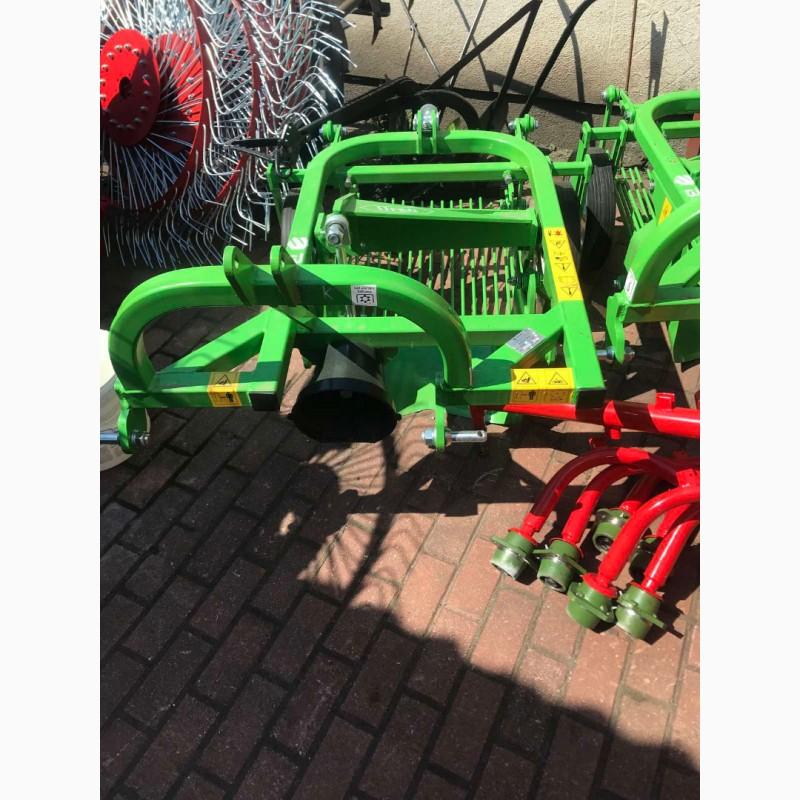

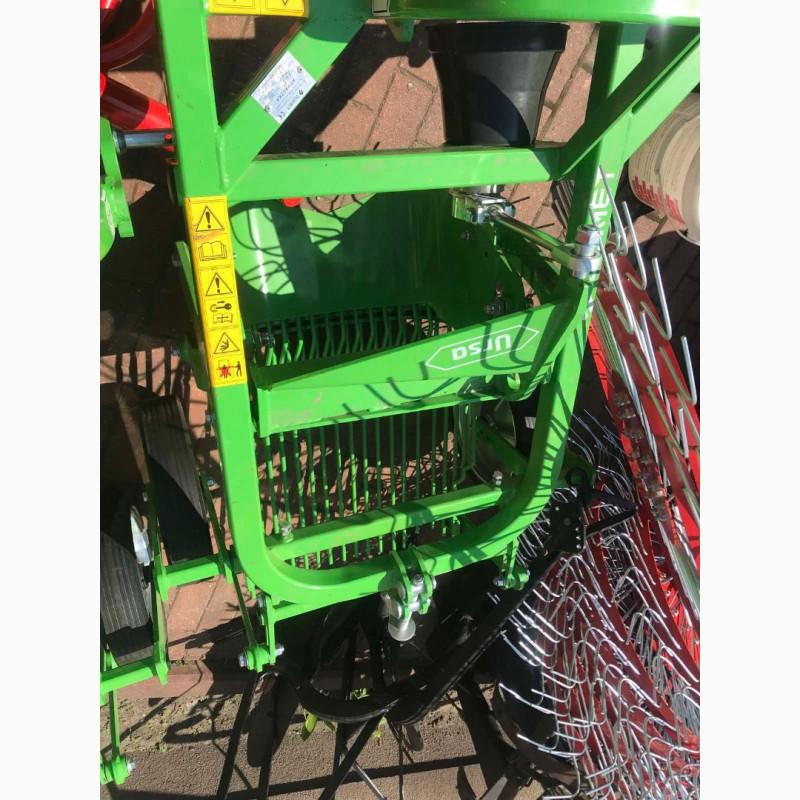

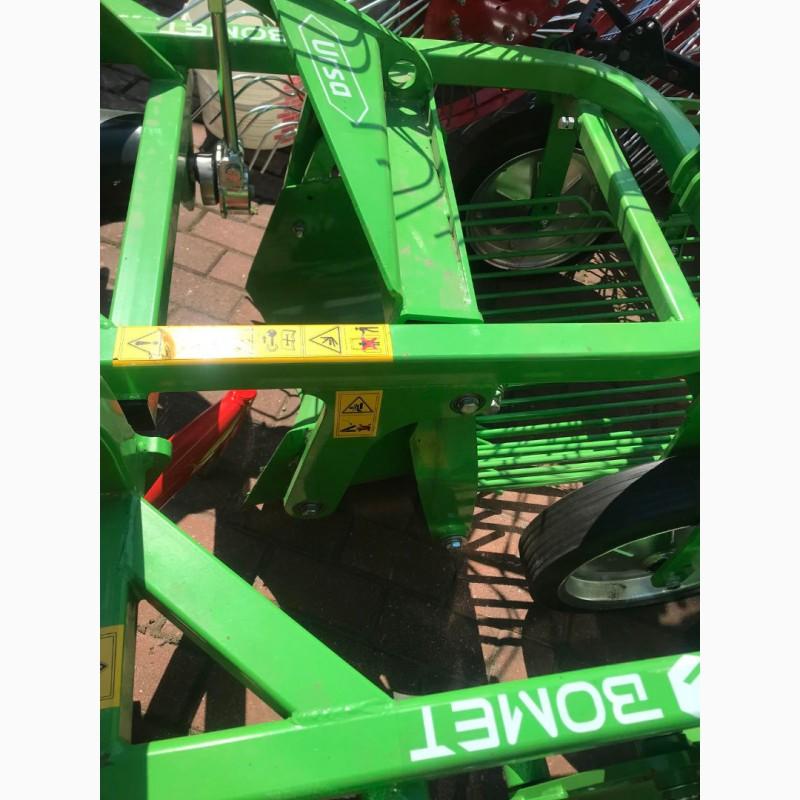

Vibrating potato digger with backward ejection of tubers consists of a vibrating blade with an adjustable digging depth, which moves the tubers from the ground into a vibrating basket. In the basket, by means of vibration, the potatoes are "sifted", cleaned from the soil, and placed on the surface of the soil. The digging depth is controlled by the rear support wheels. The intensity of sifting can be increased by adjusting the tilt of the basket.

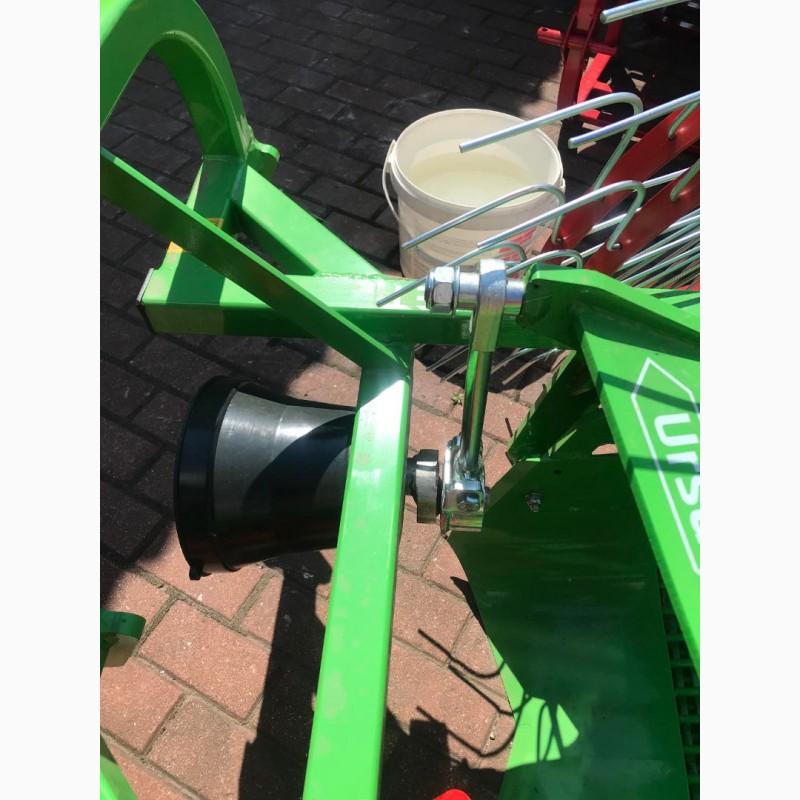

All vibrating elements are actuated by a crank-connecting mechanism working from the selection shaft
power of the tractor.
Axes, blades and basket are equipped with rubber bushings that ensure the stability of the machine during operation. Reduced sizes allow the machine to be used on small, both flat and hilly areas of land.
To work with a digger, you need a cardan shaft, 6 spline input, 6 or 8 spline output:
• Cardan (length 800 mm, slot 6x6, 6x8); 151
• Кардан (дл.1000мм., под Т-40).
Features:
• Ridge width 450 mm.,
(//tractor-service.com)
• The maximum working depth is 200 mm.,
• Power consumption 7.5 kW. (about 10 hp),
• Overall dimensions: length 1200 mm, width 950 mm, height 800 mm,
• Weight 135 kg.
