Screw butter presses Farmet UNO and Farmet DUO, Dnipropetrovsk region.

UNO, DUO

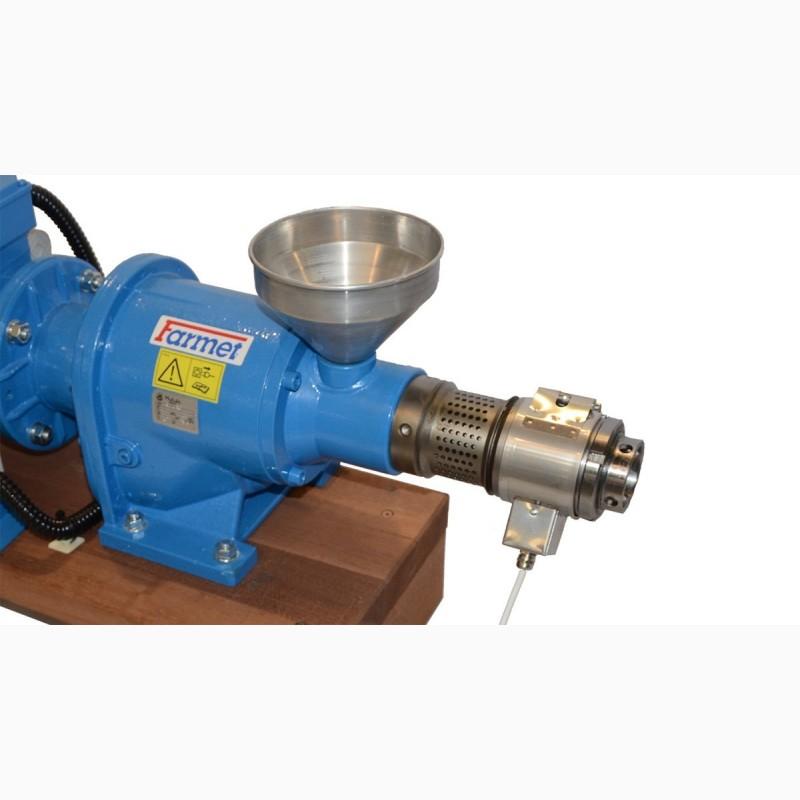

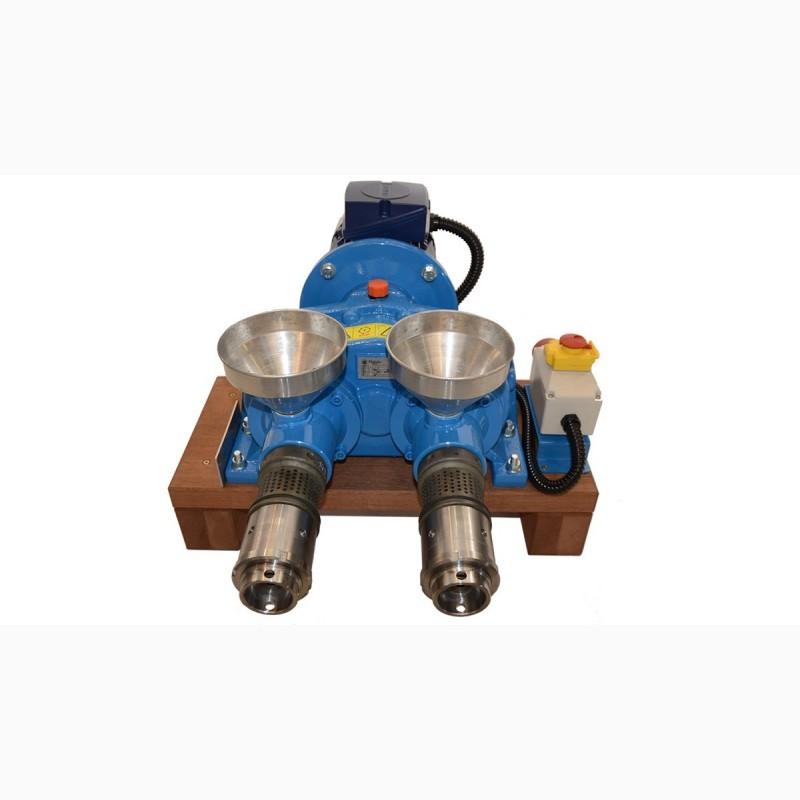

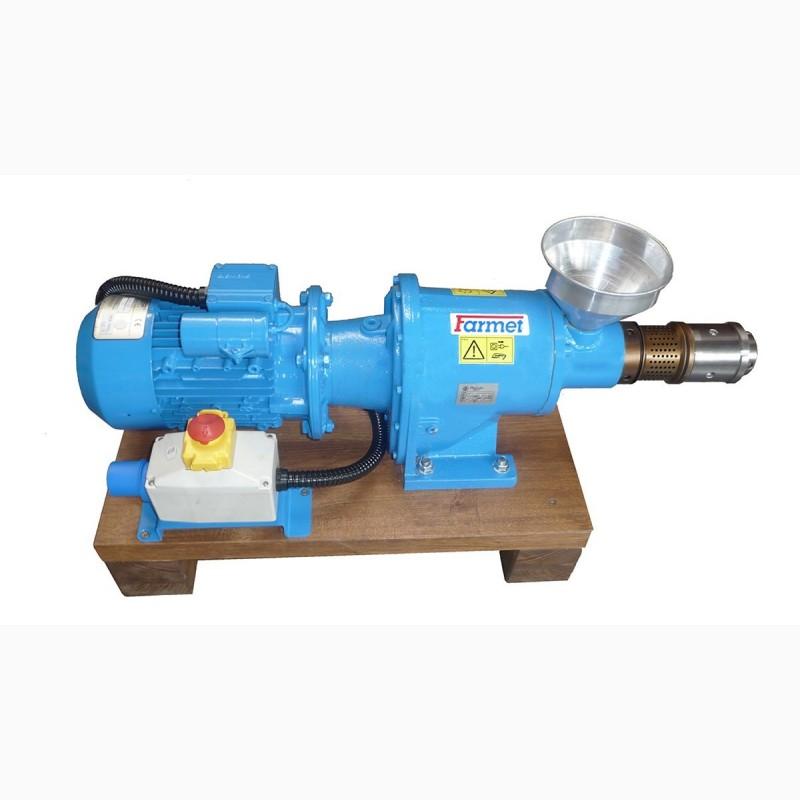

Screw oil presses Farmet UNO and Farmet DUO are intended for cold pressing of oilseeds without preliminary processing. The advantage of these presses is a high yield of oil while maintaining its best nutritional properties. Presses are used to process both widely distributed and lesser-known oilseeds with oil content > 10%.

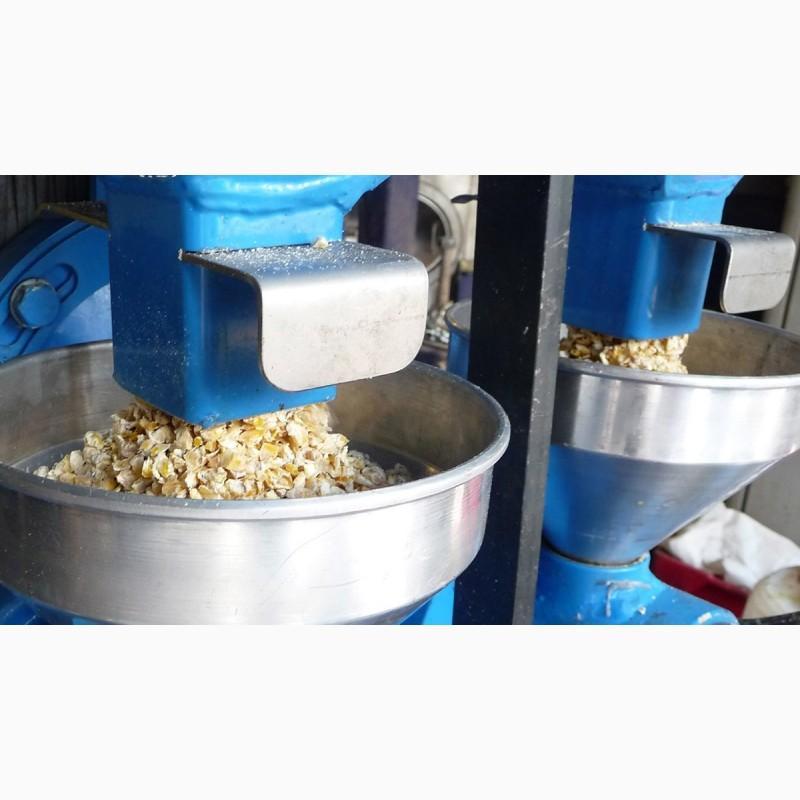

UNO and DUO presses are screw oil presses. Under the influence of the change in the shape of the screw, the pressed material is gradually compressed in different parts of the press. Under the action of increasing pressure, the oil is squeezed out of the seeds and flows through the drain slots into the basket of the press.

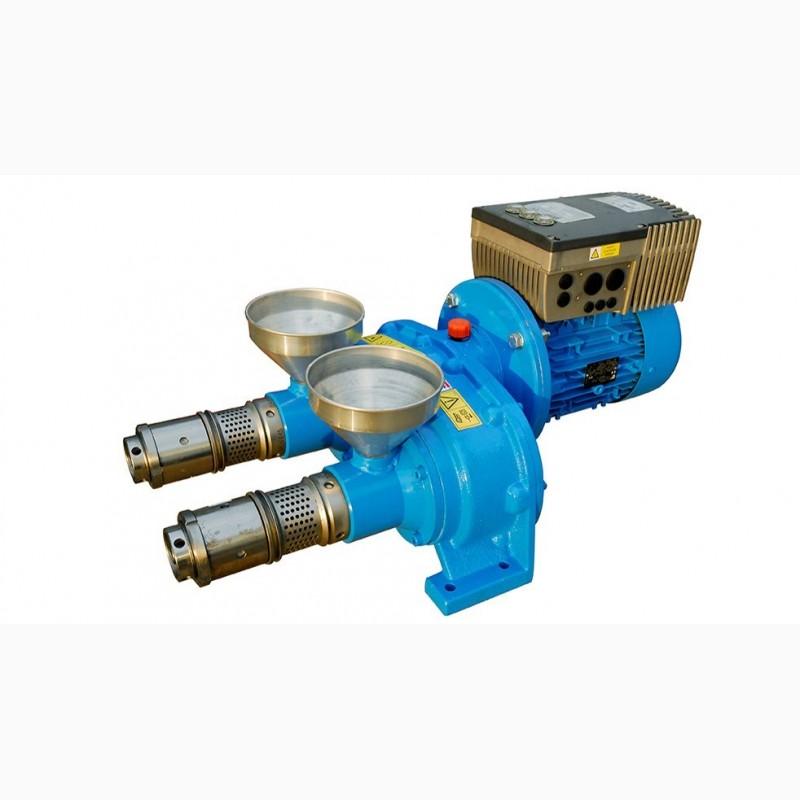

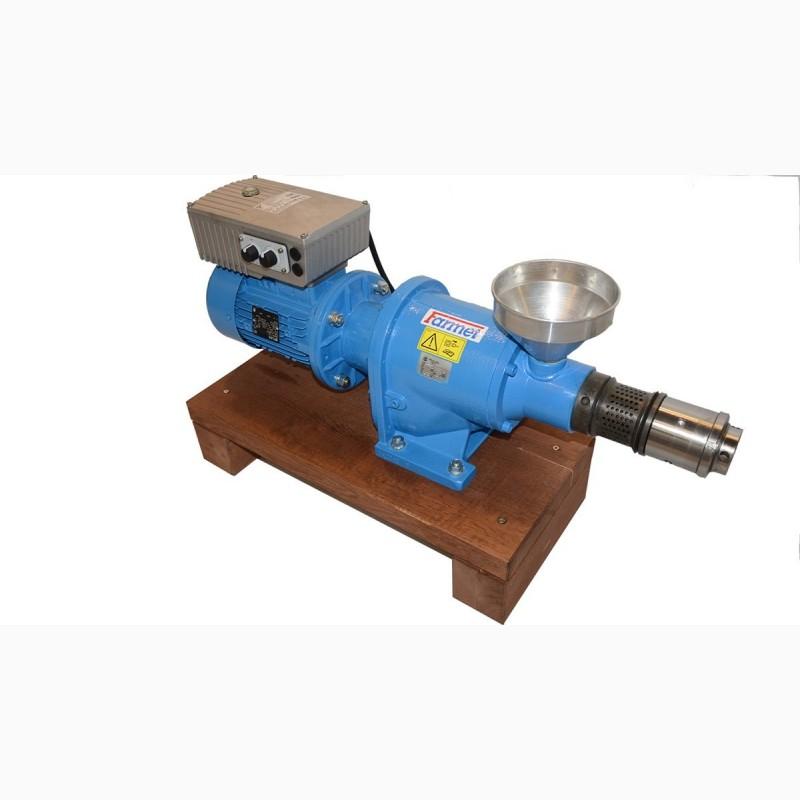

The drive of the press can be equipped with an integrated frequency converter, which allows you to adjust the revolutions of the press. With the help of changing the revolutions, it is possible to optimize the pressing process for each type of seed.

Screw oil presses UNO/DUO are low-power presses, reaching a capacity of 8-24 kg/h. In the standard version, they are designed for connection to an electrical network that meets the EU specification, but the wiring can also be adapted to the requirements of local markets (USA, Canada...). Presses can be equipped with a frequency converter of the main drive, which will allow to optimize the pressing process. The power of the electric motor of these presses is 1.1-3 kW, depending on the technology.(//tractor-service.com)

UNO DUO
Productivity [kg/h] 9-12 18-24
Power consumption [kW] 1.1-1.5 2.2-3
Optional frequency converter
Length [mm] 870 775-780
Width [mm] 225 455
Height [mm] 255-315 320-400
Weight [kg] 75-80 100-110
