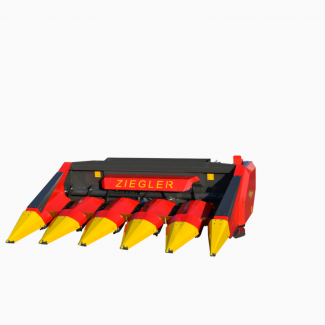

Corn harvester Ziegler Corn Champion CC8S, Kyiv region.

DESCRIPTION
When developing "Cornchampion", the designers of theZiegler company took into account the constantly growing power of modern harvesters: at a higher speed, the elongated channels of the harvester process the stalks better and contribute to the reduction of crop losses.
The rotating cylinders on the channels have longitudinal holes that allow you to adjust the knives directly during the operation of the harvester, which also increases the period of their use before replacement. In addition, a counter knife is installed next to the rotating knives, which guarantees uninterrupted operation of the unit, including in the presence of a large number of weeds.

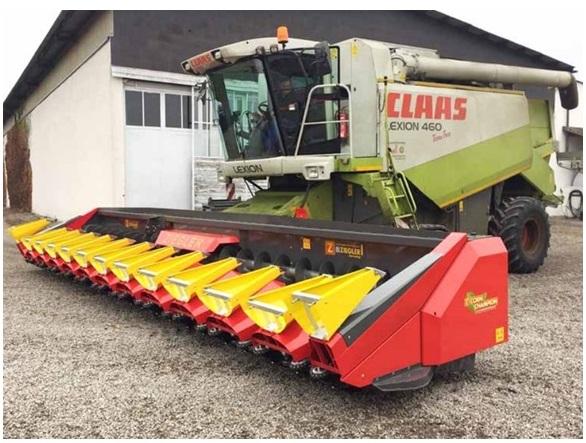

The new "Cornchampion" harvester from the Ziegler company is equipped with protective devices that protectwheels the harvester from damaged stubble. In addition, with the help of special frames - adapters, the "Cornchampion" harvester is very easily installed on all the most popular models of grain and forage harvesters.
Technical characteristics:
Corn Champion is a two-roll header with a horizontal straw chopper.
Adjusting the supply of a number of stems with variable stem sizes and work conditions.
The equipment is used for all types of combines and types of machines with
special adapters and equipment for driving the harvester.
1. Spacing 70 cm;
2. The number of rows is 8;(//tractor-service.com)
3. Adapter for any combine;
4. Stem chopper. integrated into the drive of each row of the harvester, with the possibility of disconnection, with a freewheel mechanism, independent of the main drive with autonomous oil supply.
5. Screw. A large-diameter feeding auger with a cross helix provides uninterrupted material supply without losses in the most difficult conditions;
6. The dividers and cover of the header can be completely folded back, providing quick access to all components and aggregates. Tips can be installed at different angles;
7. Special knives ensure trouble-free operation even in case of large mass;
8. Long chains with paddles for feeding the starting screw in combination with an automatic tensioning device provide a long service life;
9. The standard equipment of the transmission includes air extraction and a safety clutch;
10. All lubricating nipples are easily accessible and partially self-cleaning;
11. Newly designed roller for separation of initials with precisely adjustable knives for separation of initials;
12. The collector is initially well accessible for maintenance work;
13. Additionally purchased equipment and accessories: Trolley for the harvester, adapter, set
for harvesting sunflowers and augers for storing corn.
