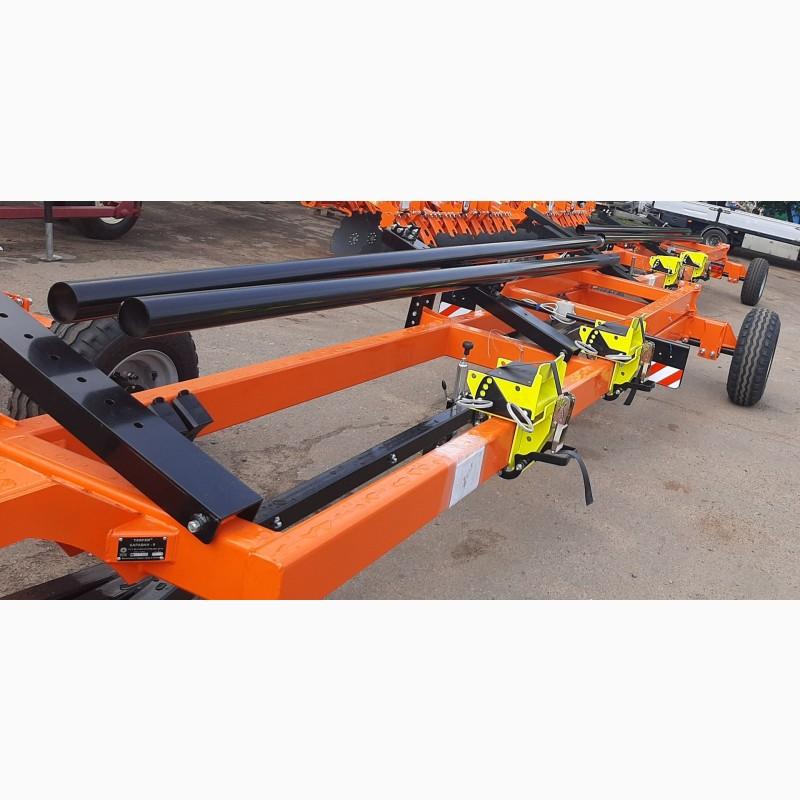

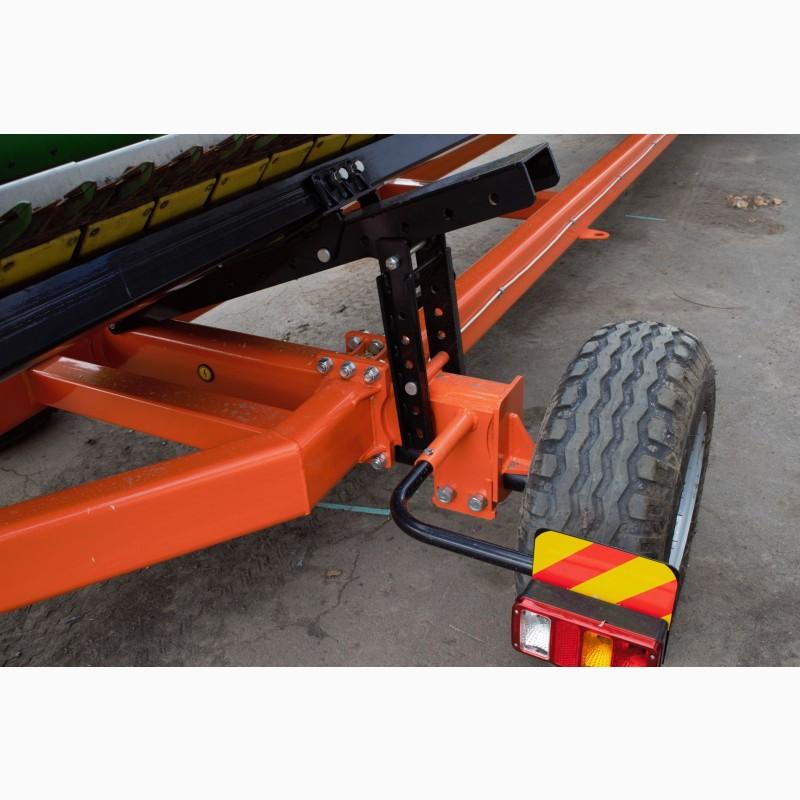

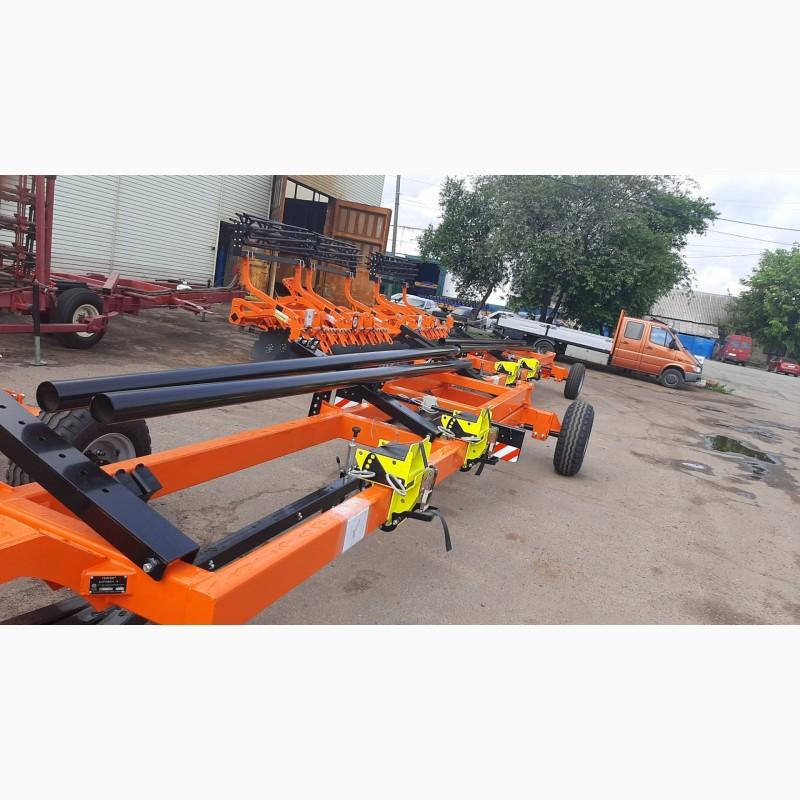

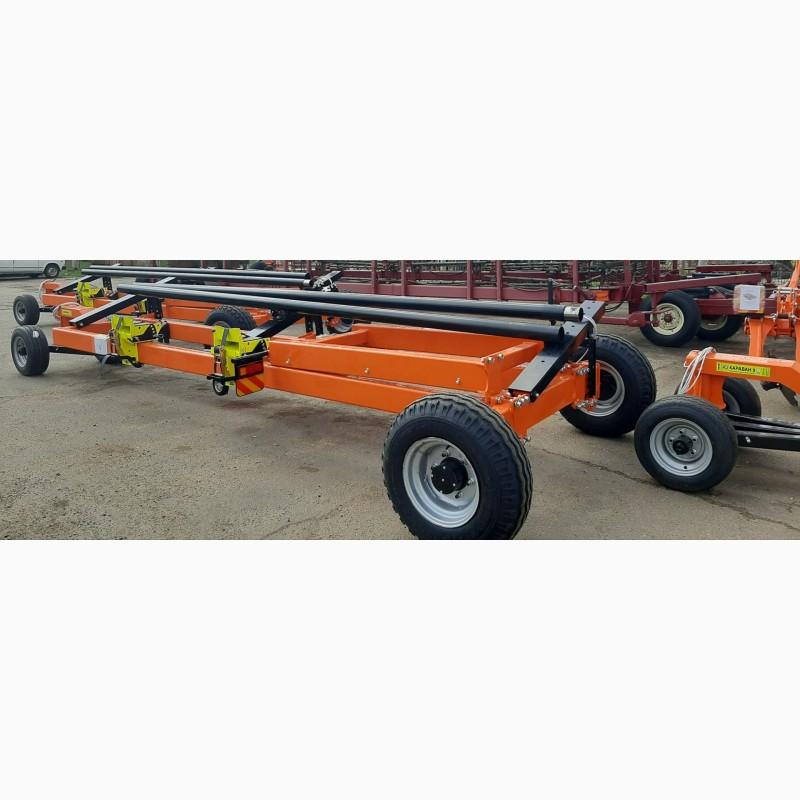

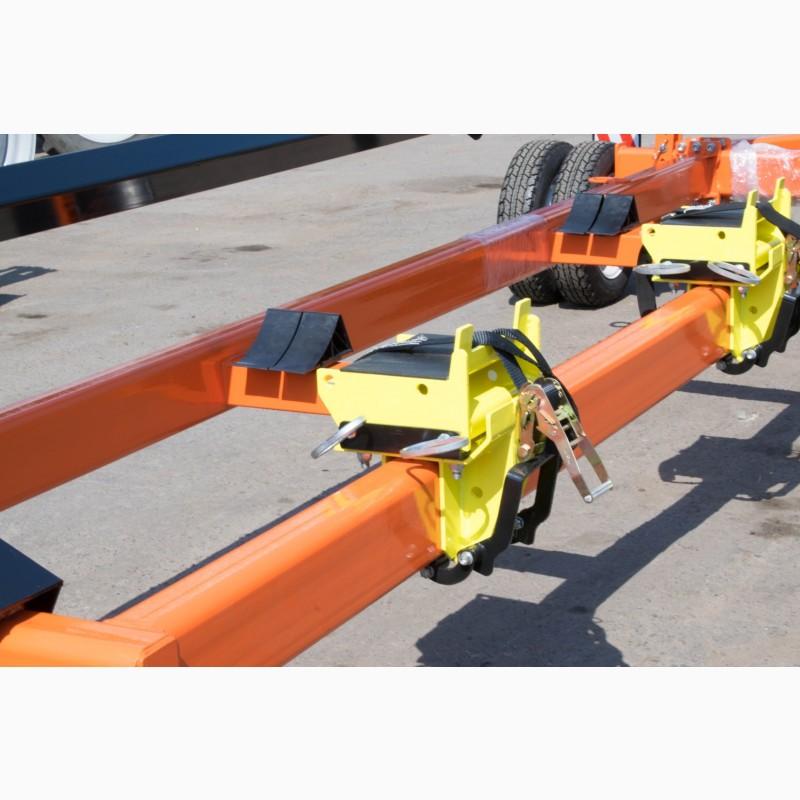

I will sell a trolley for transporting harvesters, universal Caravan-9, Vinnytsia region.

TECHNICAL CHARACTERISTICS OF THE TROLLEY
Name Unit of measurement Value
Execution
Caravan-9
1 2 3
Type Trailed, two-axle
Overall dimensions mm

– width 2400
- height 1365
length, depending on the widthgrab of the harvester
– 5m
– 6m
– 7m
– 9m

12800

12800

12800
13800
Weight (structural) kg 1600

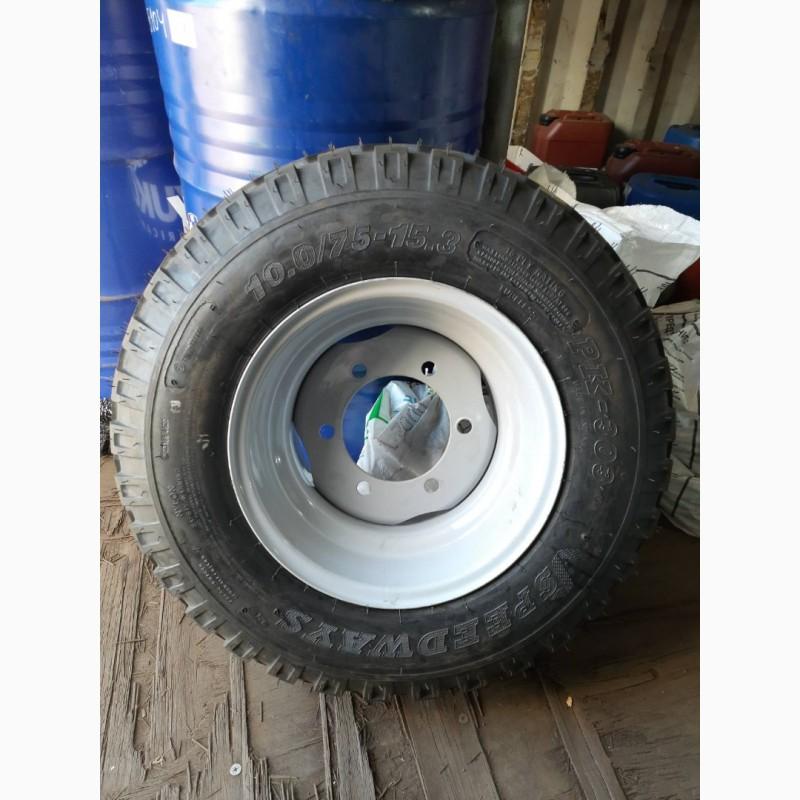

Front beam wheel disc 6Jx15 ET22
Front beam tire 195/75R15C
Rear beam wheel disc 5.5jx16H2ET105
Rear beam tire 185/75R16C
Number of wheels pcs. 4(//tractor-service.com)
Track (on wheel centers) mm 2020
Ground clearance, not less than mm 480
Carrying capacity, no more than 3500 kg. 176
Внутрішній тиск tire kPa 450
Maximum load onwheel kg 900
Angle of transverse stability degree 30
Transport speed, no more than:
- without harvester
- with a harvester
- on steep turns and descents
km/h
25
20
5
Number of service personnel
people
1
The term of service is 12 years

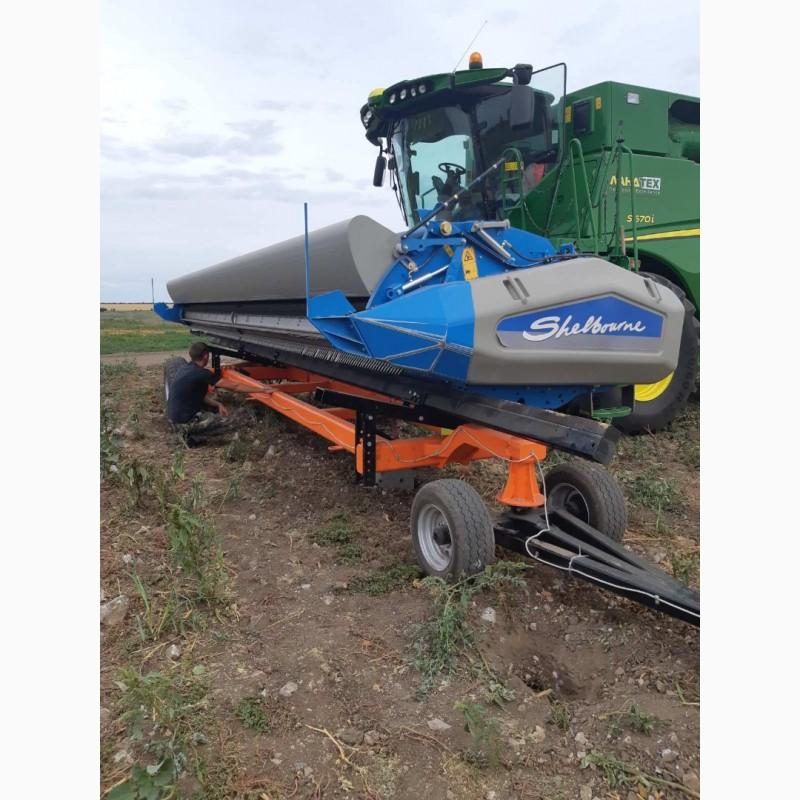

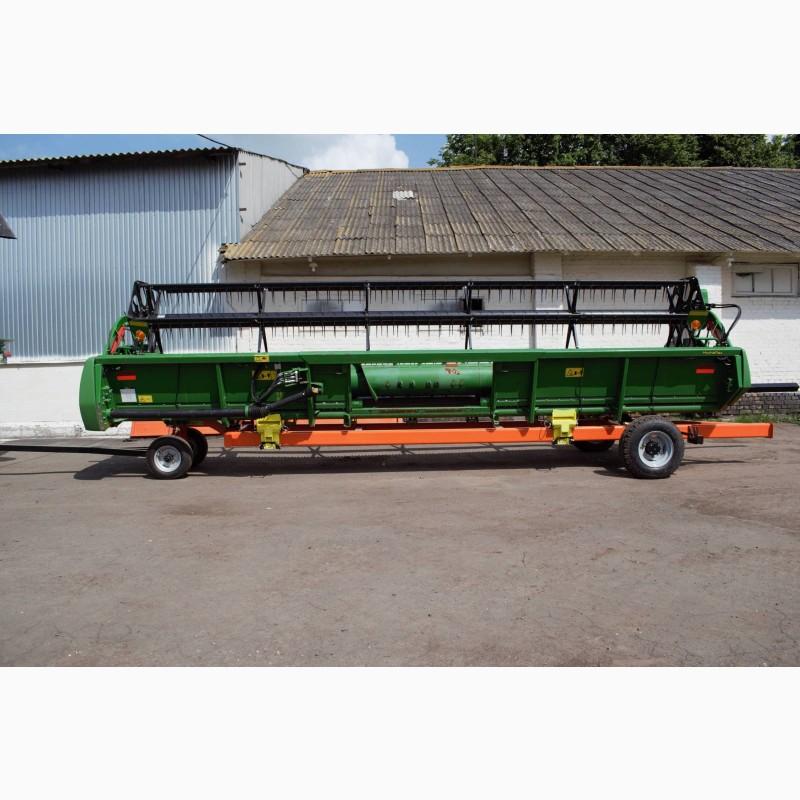

The cart is used to transport harvesters with a width of 4.5 to 9 m and a mass of no more than 3000 kg on general purpose roads, intra-farm and field roads.
A cart is assembled with a combine harvester or other power tool, which must be equipped with a towing device for connecting to the cart. The cart can be connected to the power tool if a set of components is available for towing it.
At the same time, the cart as part of the vehicle can:
– to move forward and backward;
- to duplicate the light signals of the electrical equipment of the vehicle.
In the parking lot, the cart is used as an auxiliary means for unloading, loading (removing, hanging) the header or other adapters for the grain or forage harvester. During the off-season, the harvester can be stored on a cart.
For the successful and trouble-free operation of the cart, you need:
- observe the work order, operating and safety rules;
- perform regulation and maintenance in a timely manner.
