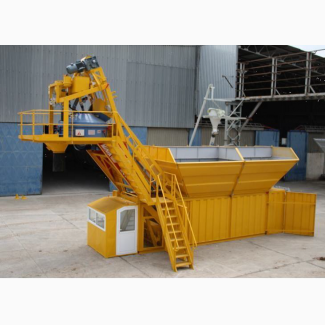

Mobile concrete plant Polygonmach Kompakt 20 (15-20 m3/hour), Kyiv

Mobile concrete plant, container type, Polygonmach Compakt 20 (15-20 m3/hour) Turkey.

Productivity (hard concrete): 15-20 m³ / time

Operating voltage: 380 V - 50 Hz, 50 kW.

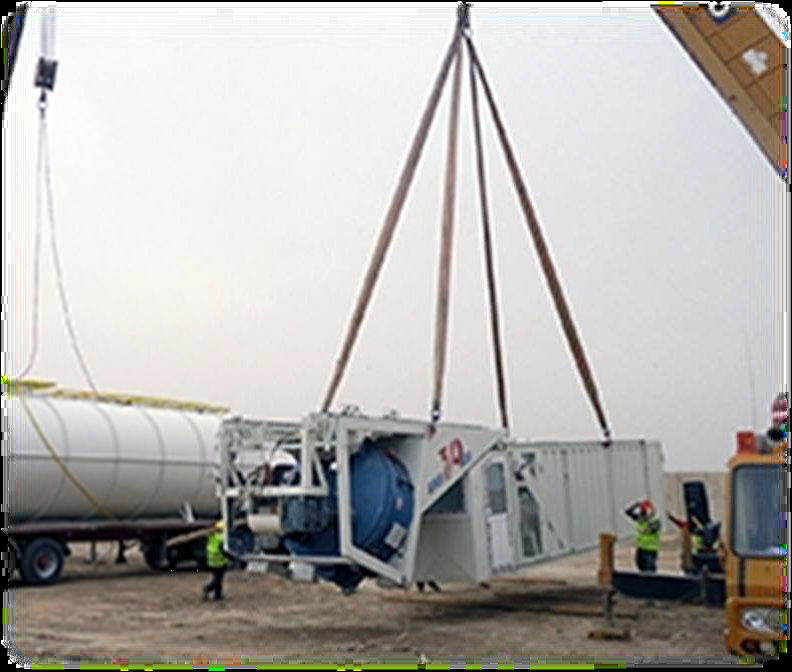

Transport requirements: The size corresponds to a 40-foot container.

Plant construction: NPU Steel profiles are used and welded together to provide a reliable structure for transporting all plant equipment.

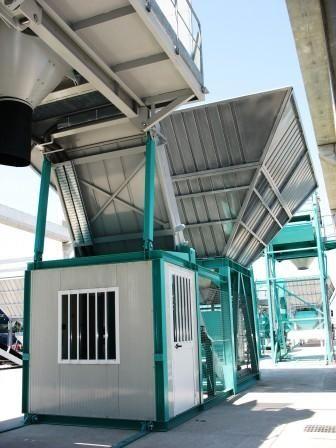

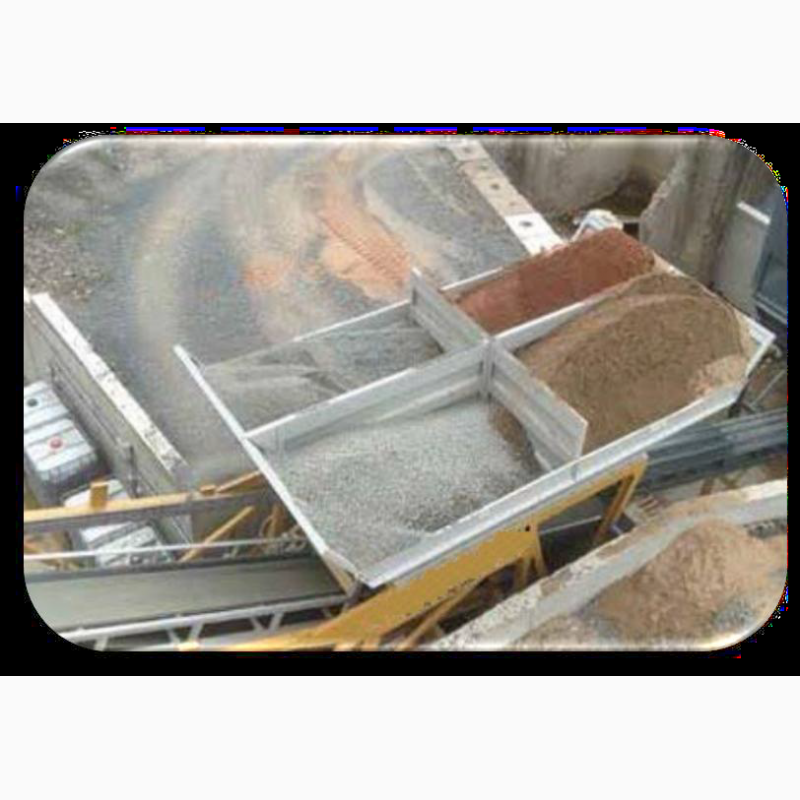

Bunkers of inert materials:

Total volume: 24 m3

Quantity: 4 x 6 m3

Material: St 37 – 5-6 mm, corrugated steel.

Unloading flaps: 4 pcs.

Unloading control: Electro-pneumatic. Pneumatic cylinder: 800 x 300 mm, Brand: Pemax

The main body is reinforced against deformation.

Sand hopper selector: 2 * 0.37 kW

Manufacturer: OLI (Italy), Model: MVE 300/3

Unit weighing system:

Weight hopper: 1,000 kg

Material and thickness of sheet metal: St 37 – 5 mm

Selector: 1 pc.

Loading cells: 4 x 1000 kg

Feed conveyor from bunkers:

Size: 500 x 4,000 mm

Reinforced type reducer.

Bearings: FAG or SKF Brand

Hoist - Skip:

Capacity bucket: 1.000 kg

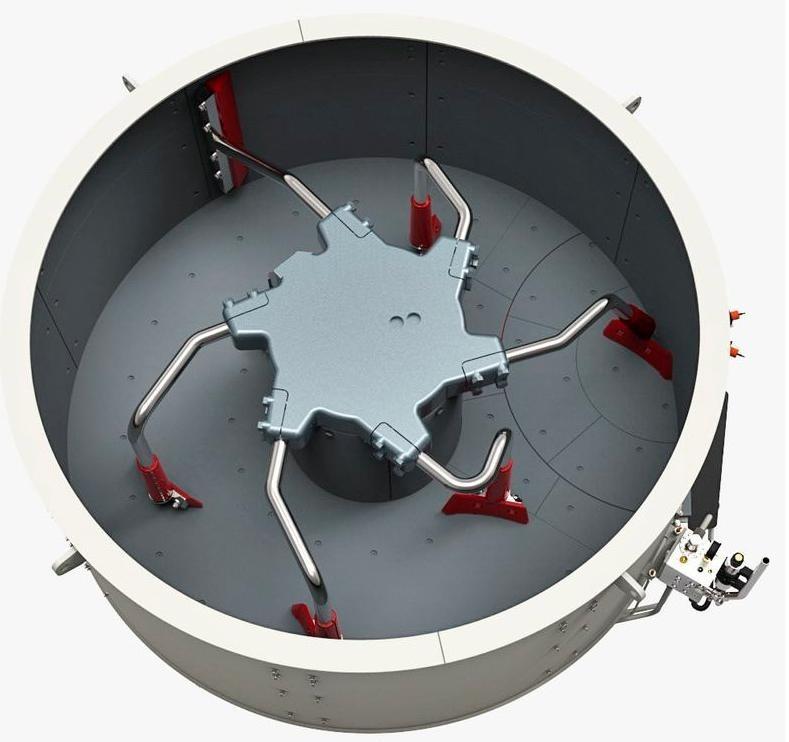

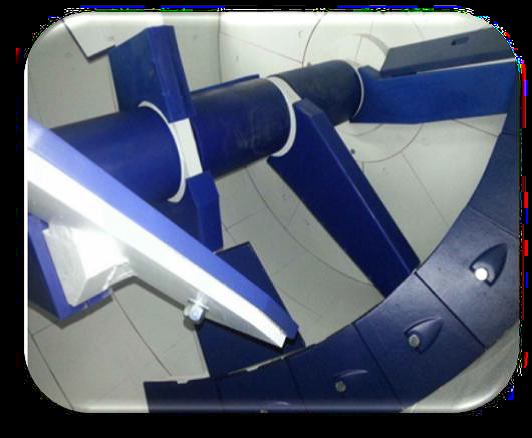

Mixer PAN MIXER 565/375

Loading, volume: 0.565 m3

Compacted concrete, discharge: 0.375 m3

Motor: 18 kW, 1450 rpm (Emtas or equivalent Brand – Turkey)

Gearbox: Reinforced type, (Dissan or equivalent Brand – Turkey)

Mixer - Lower and side work plate made of wear-resistant layer Ni, thickness 12 mm, Hardox 450 (Sweden)
Blades: Ø 55 mm, Wear-resistant material.

Cement container - Skala.

Volume: 200 kg

Material: St 37 - 4 mm

Opening with the help of a throttle valve with pneumatic control. (WAM Brand – Italy)

Feed into the mixer with a flexible connection.

Strain gauges, 3 pcs., 1000 kg/each.

Selector: 1 pc, 0.18 kW, (OLI - ITALY)

Water supply:

Volume: 150 l.
(//tractor-service.com)
Material: St 37 - 4 mm.

Supply through a throttle valve with a pneumatic drive.

(WAM Brand - ITALY)

Strain gauge, 3 pcs.

Chemical capacityadditions:

Volume: 10 l.

Material: St 37 - 4 mm.

Supply through a throttle valve with a pneumatic drive.

(WAM Brand - ITALY)

Strain gauge, 1 pc.

Air compressor:

Air cylinder: 300 l.

Brand: Mark (Atlas – Copco) USA

Type: Piston compressor with belt drive

Power: 5.5 kW

Pressure: 10 Bar

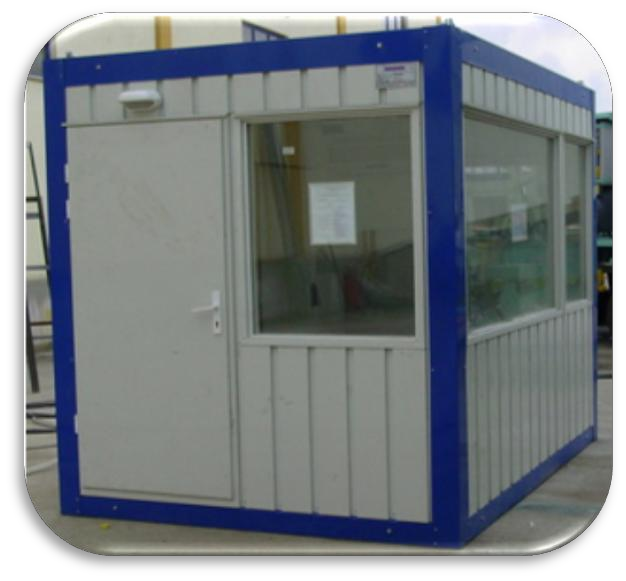

Management system:

Located on the factory building.
The walls are made of sandwich panels with a thickness of 40 mm. 9000 BTU.

Air conditioner.

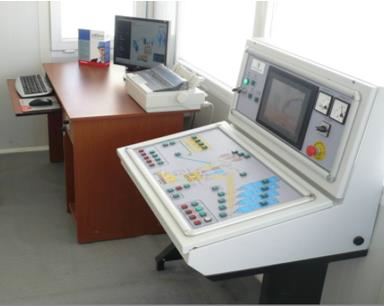

Computer system:

The automation system includes:

* Power panel and switches

* Dosing control terminals

* Automatic control unit

* Software

* Control panel

* Computer, screen and printer (HP brand)

* PLC panel (Siemans brand)

Electronic components are Siemens brand.

- The plant is fully automated and the system is controlled on a PC.

- The system is equipped with electrical installation devices and Siemens sensors. Remote stations with distributed input-output stations are also part of the automation of the enterprise.

- Advanced PLC programs and error management algorithms ensure high sensitivity during weighing and dosing even at maximum power.

Options:
Cement silo:

Type: bolt or screw at the customer's request.

Capacity: 50 tons (other options)

Auger (Option):

Size: Ø 193 x 7.000mm

Motor: 9 kW

WAM : Italy

Warranty 24 months.
