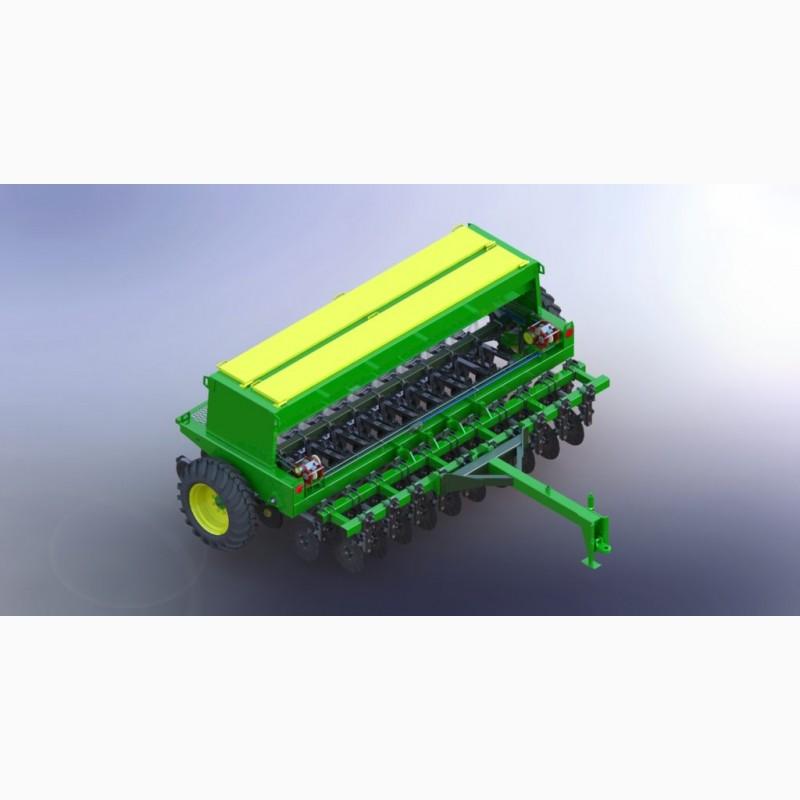

Seeder "Siva Nova SZ 3, 6", Dnipropetrovsk region.

Siva planter Nova" 3.6 for sowing both byNo-Till and by simple conversion to Mini-Till and classic technology.Grain planter mechanical is intended for row sowing of cereals, legumes, technical crops, as well as grasses, vegetables and grain mixes with simultaneous application of mineral fertilizers, with minimal tillage technology. As with the seeder "Siva SZM" 3.6 No-Till Technology, we traditionally use working bodies of TM Bellota.
What changes have taken place compared to the Siva SZM 3.6 No-Till Technology seeder?
1. For better passage of harvest residues between coulters, the size increased to 45 cm.
2. Another reducer for spreading fertilizers was installed; a separate mechanism for turning on/off the fertilizer spreading drive is installed.
3. The coulter can be separated from the seeder.
4. The design of the coulter has changed.
Technical characteristics of the seeder "Siva Nova" 3.6
Working / transport width 3600/4600 mm
The volume of the hopper for seeds/fertilized 875 l 400 l
Number of coulters 21(//tractor-service.com)
The number of coulters is 21
The depth of coulter processing is 0-100 mm.
The depth of seed sealing is 20-100 mm.
The weight of the planter is 3250 kg.
Width between rows 170 mm
Coulter pressure 140-215 kg
The power of the tractor is 82 hp.
Delivery.
