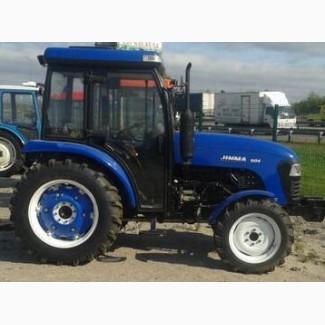

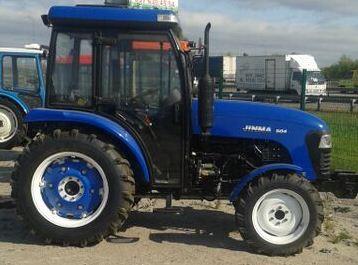

JINMA-504 minitractor 2014 new, Mykolaiv region.

All-wheel drive (4x4), water-cooled diesel engine, 50 hp, with power steering, cab with air conditioning Model SL4100ABT
Working volume (cm3) 3 456
Engine power (kW / hp) 36.8 / 50
Nominal rotation frequency (rpm) 2 300
Engine type four-stroke
Number of cylinders 4
Type of fuel diesel
The type of cooling system is water.
The type of arrangement of the cylinders is vertical.
Direct fuel injection type
Specific fuel consumption (g / kW h) ≤257
The type of air filter is external, in an oil bath
Cold start system no
TRANSMISSION
Gearbox type unsynchronized mechanical (4 forward)*2 + 4 back
The clutch type is two-disc.
GENERAL TECHNICAL PARAMETERS
Wheel formula 4 x 4
Design weight (kg) 2 150
Front counterweights yes
Rear counterweights yes
Nominal traction force (kN) 13
Maximum speed (km/h) 31.58
Maximum speed in reverse (km/h) 10.43
Length including rear suspension (mm) 3,822
Width (mm) 1,640
Height (mm) 2,550
Wheelbase (mm) 2,073
Front wheel track (mm) 1,300
Rear wheel track (mm) 1,300 ~ 1,600
Agricultural clearance (mm) 550
Nominal voltage of the electrical system (in) 12V
RUNNING SYSTEM
Drive type is direct
The rear differential is locked mechanically.
The size of the fronttyres 8.30 - 20
Rear tire size 12.4 - 28(//tractor-service.com)
Power steering hydraulic
Two-disc service brake in the oil bath
The parking brake is dependent.
HYDRAULIC SYSTEM
Number of hydraulic pumps 2
The rear suspension is three-point.
The number of hydraulic valves is 2 pairs.
Hydraulic outlet under the trailer no
Additional 2-lane distributor
Maximum lifting force (kN) 8.3
Diameter of the upper suspension point (mm) 19.3
Diameter of the lower suspension point (mm) 22.4
REAR PTO SHAFT
Type dependent
Standard size of shaft with splines (six teeth) Ø 35 (mm)
Rotational frequency, (rpm) 540 / 1000
REFILL VOLUMES
Fuel tank (l) 47
Radiator (l) 14
Engine oil sump (l) 10
Gear box (l) 31
Front axle (l) 7
Lifting mechanism (l) 12
Power steering (l) 2.0
Mechanical steering column (l) no
KIT
The engine hours counter is yes
Spring-loaded seat yes
Compressor no
Rear-view mirrors yes
Front wings yes
Mass switch yes
Socket for the trailer yes
Accidental launch protection yes
Safety arc no
Cabin yes
Tape recorder yes
Air conditioner yes
