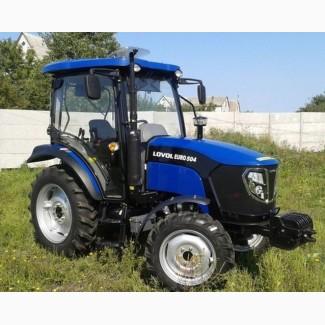

Foton/Lovol Euro TB-504 tractor (Foton-504) with cab and reverse.
Modern design, lenses on dipped beam lamps, lanterns with LED lamps. The hood is reinforced with a metal frame, the engine side paneling. Handle on the hood. Front and rear working lights. Front axle swinging portal type, fenders on the front
wheels. Front loads. Front hitch. 4x4 drive, connected front axle, power steering with independent hydraulic circuit, pump and tank.
Four-cylinder engine - 50 hp, antifreeze is poured into the cooling system, glow plugs in each cylinder. Compressor, pneumatic brake booster, receiver with pressure up to 8 atm, pneumatic outlet. Two hydraulic pumps. Air cleaner of the inertia-oil type. Battery 100 A/h. Metal mesh in front of the radiator. 750 W generator. Muffler with protective net.
The two-disc ceramic clutch transmits greater torque without increasing the basket's clamping force, increases the wear resistance of the mechanism by 2-4 times, and is resistant to temperature changes.
Synchronized reversible gearbox (4 forward + 4 reverse)x3. Rear axle differential lock. Disc brakes in an oil bath. The fuel tank is located at the bottom left, a single key system for the doors, ignition lock, and fuel tank.
4-support, non-removable, spacious, sound- and heat-insulated, hermetic cab on shock absorbers with rollover safety frame (ROPS). Rear view mirrors. Windshield wipers for the front and rear windows. Rear-view mirrors, running boards, handrails on the cabin pillars, fenders and doors, a flat floor of the working area with a rubber mat. Suspension pedals reduce pressure and improve operator comfort. Brake and clutch pedals have stops. Glove box, hatch with sliding blinds, sun blind, two clothes hooks. Three-speed heating and ventilation system with cabin filter. Salon ceiling. Radio receiver with USB port and speakers. Combined electronic instrument panel, clock with calendar, emergency alarm, sound signal. The tilt angle of the steering column is adjustable. Manual gas. Separate brake pedals. Convenient location of control bodies. Suspended seat with a safety belt of the German company GRAMMER with the possibility of individual adjustment of the weight and height of the operator.
Wheels: front 8.3–20, rear 12.4-28, collapsible discs of front and rear wheels.
Separate oil baths of transmissions and hydraulic systems. Additional hydraulic tank with brackets for mounting a license plate.
Power take-off shaft independent two-speed 540/1000 rpm. Electric outlet for the trailer. Two hydrocouples with quick-release couplings. Two pneumatic outlets with quick-release couplings. Two rear towing devices. The central screw with shock absorber and hook has three fastening positions. Box for tools.
Technical characteristics
Engine power HP (kW) 50 (36.8)
Wheel formula 4x4
A498-A6 4-stroke liquid-cooled diesel engine
Engine volume, cm3 3168
Nominal engine fuel consumption, g/kW*h ≤245
Nominal revolutions of the crankshaft of the engine, rpm 2400
Nominal traction force book 14
Synchronized mechanical reversible gearbox (4 + 4) x 3 or 12+12
(//tractor-service.com)
Blocking of the rear differential is Есть
Dry, two-disc clutch
Hydraulic power steering Есть
Brake mechanism Disc type
Revolutions of the power take-off shaft, rev./min. 540/1000
Wheelbase, mm 1990
The track of the front front wheels, mm 1250, 1324
Rear wheel track, mm 1200-1500
Tire size front/rear 8, 30-20/12, 4-28
Theoretical forward speed, km/h 2, 4 – 38, 5
Theoretical speed of backward movement, km/h 2, 1-33, 7
The volume of the fuel tank, l 65
Engine cooling system volume, l 12
Overall dimensions (LxWxH), mm 4136/1870/2622
Construction mass, kg 2610
