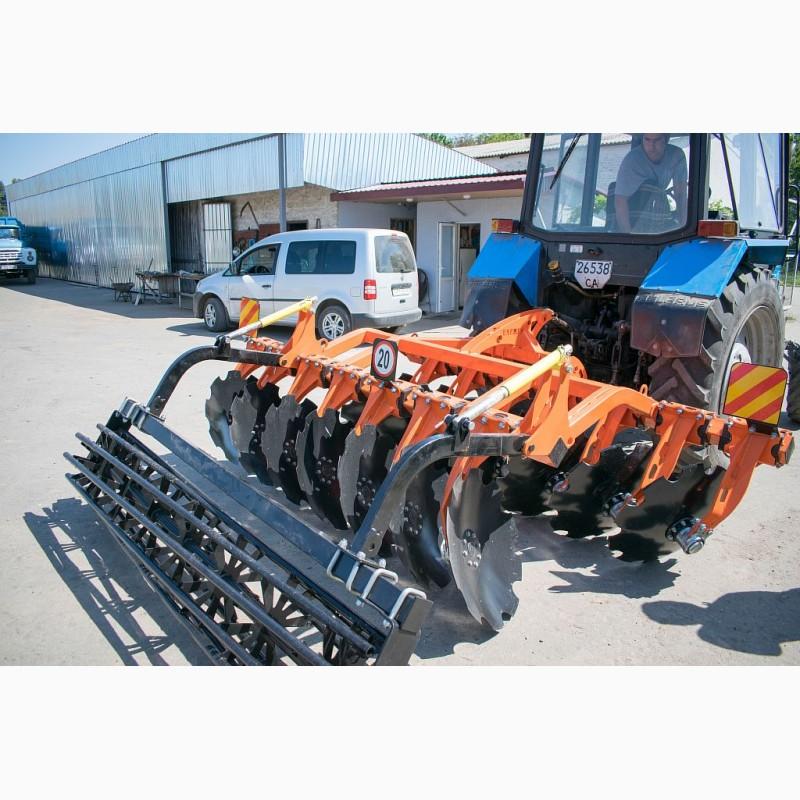

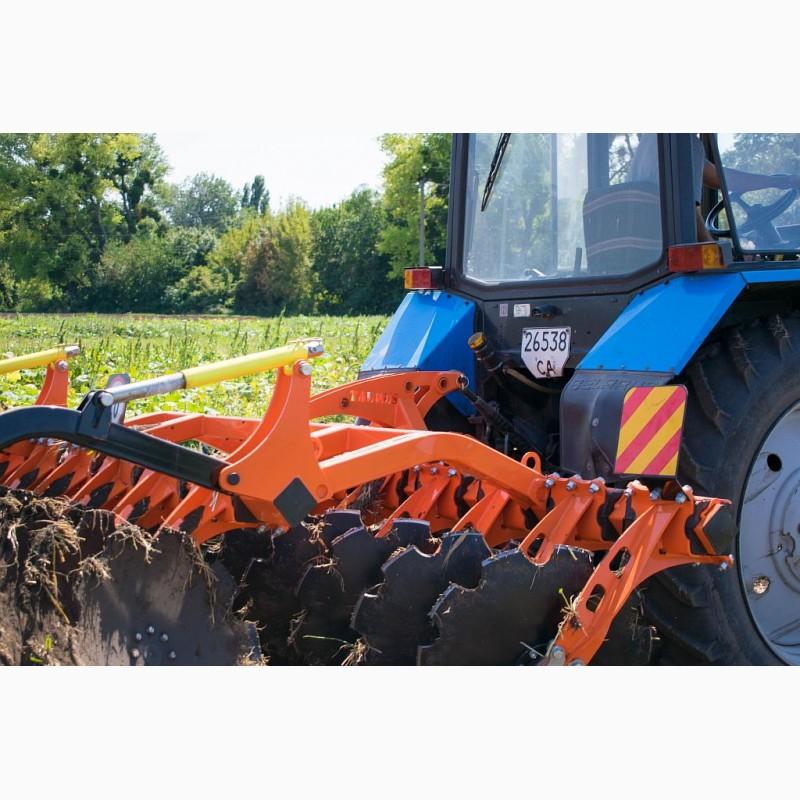

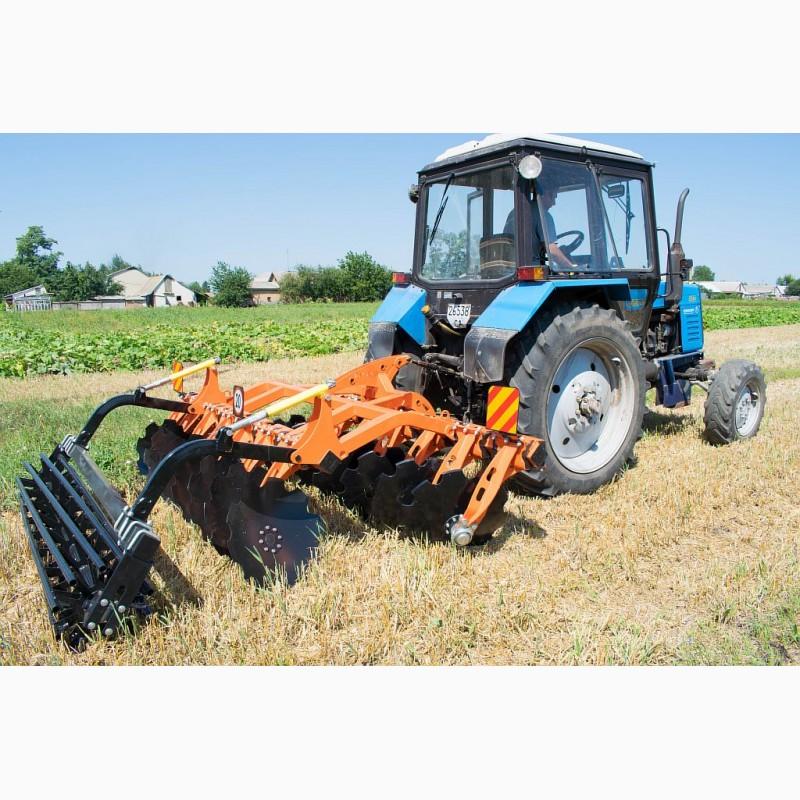

Disk harrow Taurus 2.4H is intended for processing compacted soils of different mechanical composition with crushed and embedded plant residues in the soil at humidity up to 20% and soil hardness up to 3.5 MPa.
The harrow is designed to work with tractors of the 14 kN (1.4 t s) class, equipped with a three-point hinged system (MTZ-82, MTZ-100/102, MTZ-6 kl and others with a power of 80-110 hp). The harrow can be used in all soil and climatic zones.
http://www.terfed.com/
Type
harrows-Hinged
Design width of capture (m)-2.4
Power
tractor (hp)-82-110
Working speed (km/h)-8-12
(//tractor-service.com)
Depth of soil treatment up to (cm)-5-18
Transport speed no more (km/h)-20
Product weight (kg)-1080
Long (mm)-2600 ± 150
Width (mm)-200 ± 150
Height (mm)-1150 ± 150
Road clearance not less (mm)-300
Service life before decommissioning (years)-7
Maintenance staff (man)-1
