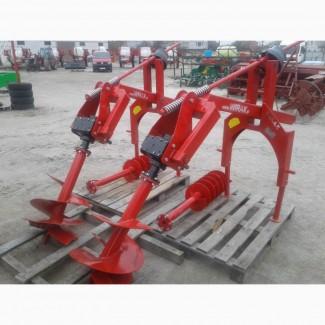

Garden drill D.250 mm and D.500 mm, Kyiv region.

Earth drill is mounted on a three-point linkagetractor with a power of 24 horsepower with a working speed of 540 rpm. and 40 l. with. with working revolutions of 1000 per min. The drilling process is fully automated, the drive is carried out from the power take-off shaft of the tractor, and lifting and lowering is carried out using the tractor's hydraulic system and is controlled from the operator's seat.
Drill weight: Ø500 mm 27 kg, Ø250 mm 24 kg, gear ratio 1.61. The augers of the drill have such a shape with a screw working surface that ensures minimal scattering of the soil from the dug hole. This makes it possible to reduce the time for subsequent work on backfilling pits. The working part of the drill is made of very strong metal, and therefore it can handle even hard soils.
Working width, cm 25/50(//tractor-service.com)
Working depth, cm 60/90
Working revolutions, rev/min. 540/1000
Weight, kg 115
