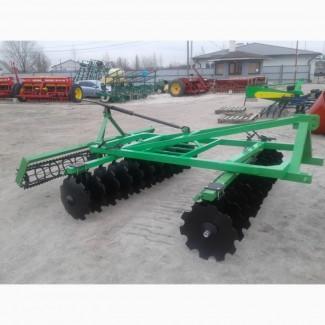

Disk harrow with roller, Kyiv region.

Type:Disk harrow
Gripping width: 2.4(m)
Working depth of processing: 80-150 mm

The hinged disc harrow is intended for pre-sowing processing of dense soils plowed in autumn, with humidity guaranteeing normal operation. Also, the disc mounted harrow can be used for breaking up and breaking up the sod layers after plowing on meadows and other pastures, as well as for dehusking the crops immediately after cutting the plants. Disc harrows can be used for cutting and coveringgreen manure and manure after spreading. The harrow can also be used to mix sown mineral fertilizers and lime with the soil.

In the series of 2-section harrows in the V system there are harrows with a working width of 1.3 to 3.15 m. Setting the angle of attack (rotation) of the discs in the range from 7° to 22° allows you to get the required quality of work depending on the variable conditions and type of soil.

Disc manufacturer: Bellota (Spain)(//tractor-service.com)
Disc diameter: 540 mm
Number of disks: 22 pcs.
Number of sections: 2 pcs.
Number of racks per section: 3 pcs.
Harrow weight: 580 kg
Disc type: toothed
Disc pitch: 230 mm
Classtractor: 1.4 (MTZ-80, Belarus-921, YuMZ-6)
Working speed: 5-10 km/h
Transport speed: 15 km/h
