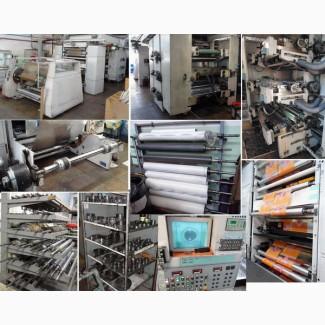

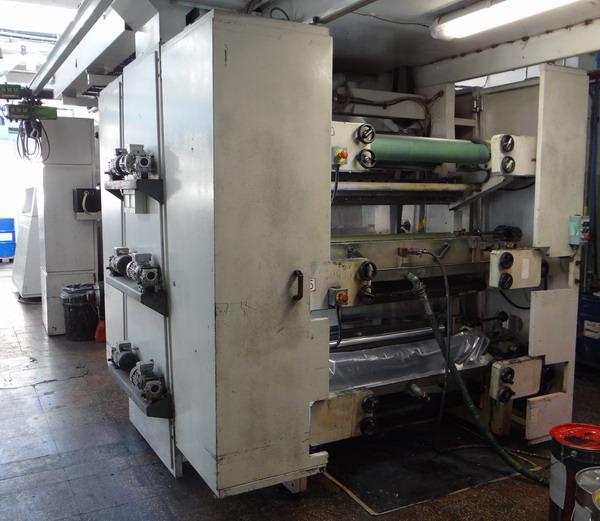

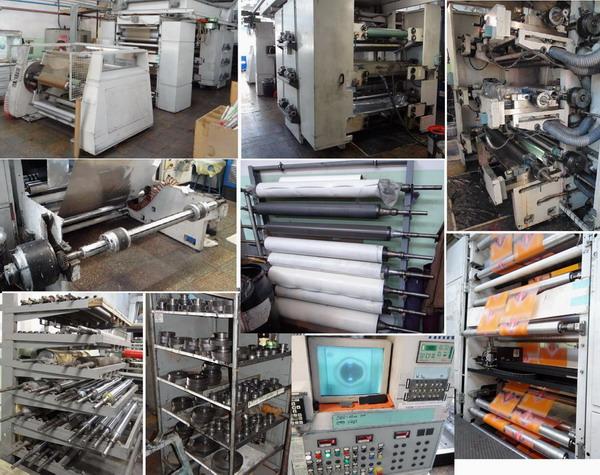

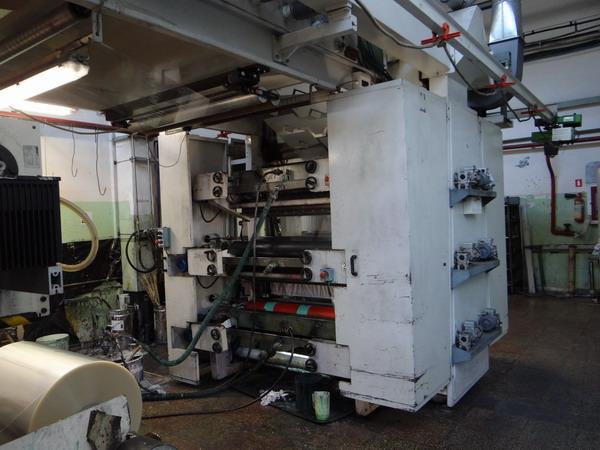

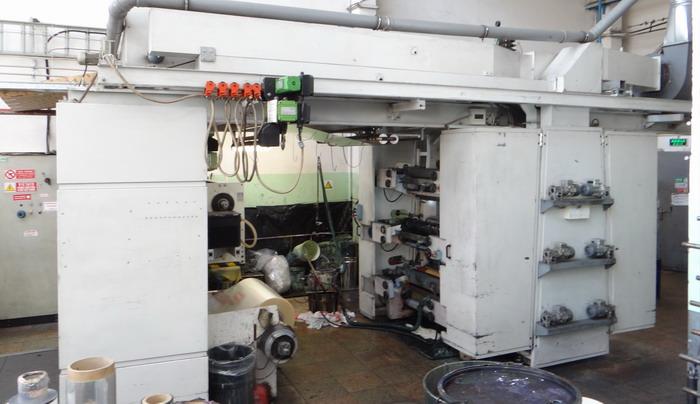

Flexographic printing machine of Yarusnoy postraniya, Cherkassy reg.

Model: OFELIA 1200/6 Manufacturer: BONARDI srl. Italy
Release year 2003.
Number of flowers 6.
Width of the seal: 1180mm.
The maximum width of the material: 1250mm.
Gear module DP 16 Gear type helical/helical/.
Mechanical speed: 200m/min.
The size of the repetitions is 340-1000mm.
5-section squeegee cameras; 1-section duct for applying filling
Sixcolor trays made of stainless steel.
Automatic hydraulic press of shafts on the cone.
Unwinding
Single unwinder
Pneumatic shaft under the sleeve 76.2 mm., adapters 152 mm.,
Unwinding brake magnetic powder, tension control.
The maximum unwinding diameter is 1000mm
The system for controlling the edge of the material before the printing section
Static charge neutralization system on unwinding (higher quality printing, no dust)
Drying
Electric dryer 45 kW(//tractor-service.com)
The cover of the drying tunnel opening on pneumatic cylinders
The cooling shaft is rotated by the engine with tension control.
Unwinding and winding tension control system
Video control system Inprint FIFE Germany with automatic movement
Winder Automatic Non-stop with serrated cutting knife
The maximum winding diameter is 800mm.
Edge winding correction system (winder on guides)
Winding on pneumatic shafts 76mm.
Static charge neutralization system on the coil

Telfery lifting mechanism for replacing rolls and shafts
6 sets of paint pumps
Anilox ceramic shafts: 100l/cm -2pcs, 120l/cm, 200l/cm -3pcs, 240l/cm-2pcs, 260l/cm-1pcs
Shaped 29 pieces
Cliché 2.54 Cliché on plum 1.14
Total power consumption 90 kw
Normal consumption El. energy 60 kw
Trolleys for transporting shafts
Overall dimensions in working condition: (LxWxH) m. 10.5 x 4.8 x 3.7
The width of the machine is 4.8 m, taking into account the removal of the control cabinet and pumps
The machine is in working condition in Ukraine, Cherkassy - you can see it at work
