Погрузчик кун быстросемный for MTZ, YuMZ, quick-release front loader, Zaporizhzhia region.
Region:all of Ukraine,
Zaporizh region.
(G. Berdyansk)

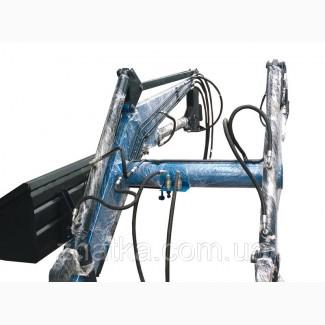

Front-loader (quick-release) PFN-1600B for MTZ, YuMZ, T-40 tractors
The PFN-1600B front-mounted mounted (quick-detachable) loader is a mounted equipment on atractor traction type, class 0.9 - 1.4 and is intended for loading and unloading, partial mechanization of various cargoes and warehouse work in the agricultural and construction industry.
► The lifting height of theloader is 4.50m and the unloading is 4.10m, which makes it possible to load any product into vehicles with high sides.
Technical characteristics:
• type of equipment - mounted
• hint - frontal
• the drive is the hydraulic system of the tractor
• bucket volume - 1.2 m3
• bucket width - 2000 mm
• lifting height - 4.50 m
• unloading height - 4.10 m
• unloading angle - 60 degrees
• nominal load capacity - 16 kN (1600 kg)
• working speed - up to 6 km/h
• transport speed - up to 16 km/h (without cargo)
• aggregated with tractors - MTZ; YMZ; T-40
• structural weight - 870 kg.
• bucket mass - 220 kg
• mass of the arrow - 650 kg
• service life of the loader - not less than 10 years
(//tractor-service.com)
Advantages of the loader PFN-1600B:
► quick-release bucket (removed from the hooks with one push of the lever)
► quick-release arrow (installation or removal of the arrow takes no more than 5 minutes)
► the presence of a bucket copying system (stabilizers)
► the modified design of the boom gives the loader a significant load capacity and loading height.
► universal bucket (can be used not only for loading agricultural products but also other materials)
► boom lifting hydraulic cylinders are reinforced with a 50 rod.
► all the fingers of the loader with grease nipples (lubricators) and on bolts, which makes the structure more durable.
Additionally, the loader can be equipped with:
• crane hitch (hook) with a load capacity of 1500 kg
• forks for pallets
• pitchforks for hay and straw
• jaw bucket
• roll gripper (gripper for rolls of straw)
• gripper for logs
• with a snow shovel (shovel )
Form of payment: cash and cashless payment.
24-month factory warranty! Quality! Delivery to the household!
The delivery of goods is carried out by our vehicles or any delivery service, In-Time, Novaya Pochta, Delivery, etc.
The PFN-1600B front-mounted mounted (quick-detachable) loader is a mounted equipment on atractor traction type, class 0.9 - 1.4 and is intended for loading and unloading, partial mechanization of various cargoes and warehouse work in the agricultural and construction industry.
► The lifting height of theloader is 4.50m and the unloading is 4.10m, which makes it possible to load any product into vehicles with high sides.
Technical characteristics:
• type of equipment - mounted
• hint - frontal
• the drive is the hydraulic system of the tractor
• bucket volume - 1.2 m3
• bucket width - 2000 mm
• lifting height - 4.50 m
• unloading height - 4.10 m
• unloading angle - 60 degrees
• nominal load capacity - 16 kN (1600 kg)
• working speed - up to 6 km/h
• transport speed - up to 16 km/h (without cargo)
• aggregated with tractors - MTZ; YMZ; T-40
• structural weight - 870 kg.
• bucket mass - 220 kg
• mass of the arrow - 650 kg
• service life of the loader - not less than 10 years
(//tractor-service.com)
Advantages of the loader PFN-1600B:
► quick-release bucket (removed from the hooks with one push of the lever)
► quick-release arrow (installation or removal of the arrow takes no more than 5 minutes)
► the presence of a bucket copying system (stabilizers)
► the modified design of the boom gives the loader a significant load capacity and loading height.
► universal bucket (can be used not only for loading agricultural products but also other materials)
► boom lifting hydraulic cylinders are reinforced with a 50 rod.
► all the fingers of the loader with grease nipples (lubricators) and on bolts, which makes the structure more durable.
Additionally, the loader can be equipped with:
• crane hitch (hook) with a load capacity of 1500 kg
• forks for pallets
• pitchforks for hay and straw
• jaw bucket
• roll gripper (gripper for rolls of straw)
• gripper for logs
• with a snow shovel (shovel )
Form of payment: cash and cashless payment.
24-month factory warranty! Quality! Delivery to the household!
The delivery of goods is carried out by our vehicles or any delivery service, In-Time, Novaya Pochta, Delivery, etc.
