NWST-5.4 seed drill, Kirovohrad region.

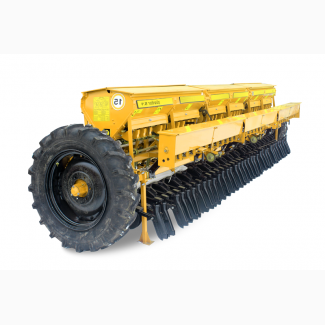

Seeder grain SZT-5.4Planter intended for regular sowing of seeds of grain and leguminous crops both separately and with simultaneous sowing of grass seeds and introduction of granulated mineral fertilizers.
Using the main hoppers, it is possible to sow the seeds of leguminous and grain crops through two disc coulters.
Similarly, it is possible to sow non-loose and medium-loose grass seeds.

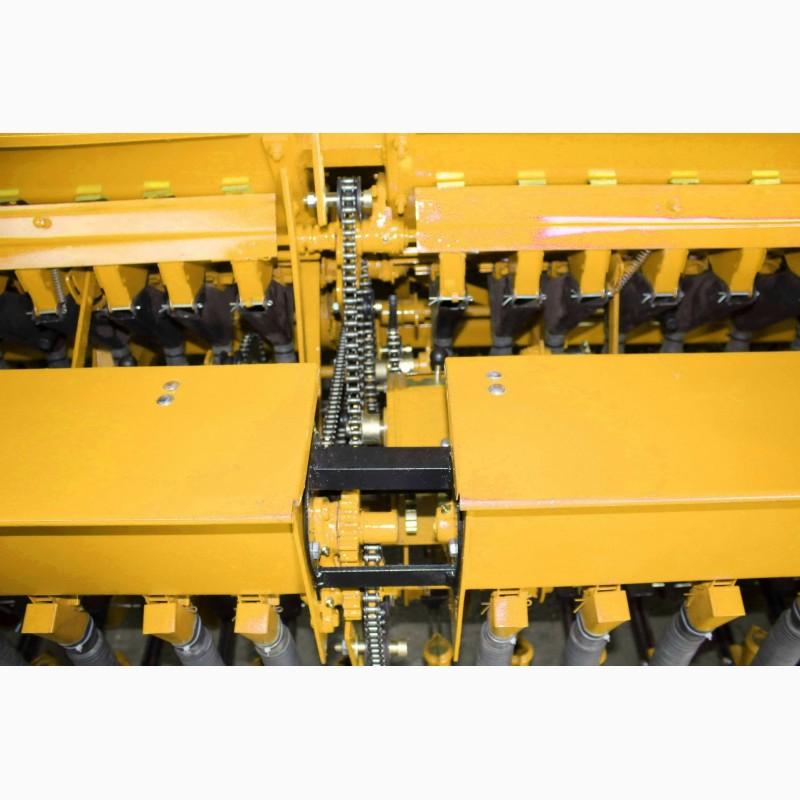

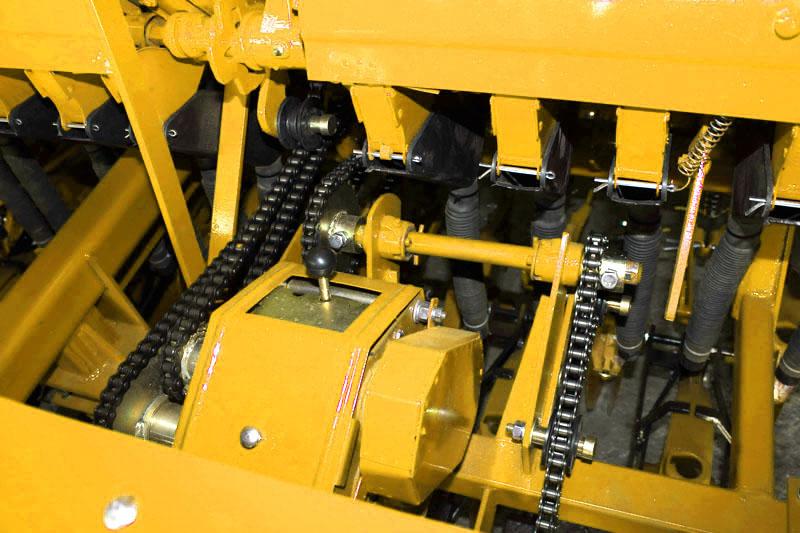

The seed sowing rate is set by changing the gear ratio in the gear mechanism, which has three main positions.
And also the settings of the working length of the coil, the regulation of the working width of the coil, the group regulation of the valve of the seeding device and the change of the rotation frequency of the shaft of the seeding device are additionally set.

In addition, the SZT-5.4 Planter grain seeder is equipped with a seed sowing control system that automates the process of operating the unit as much as possible.

Main technical characteristics

Coverage width m 5.4
Width between rows cm 15 (7.5)
The number of lines pcs. 36 (72)
The depth of sowing material and fertilized mm 20-80(//tractor-service.com)
Sowing rates: kg/ha
- for seed material 0.7-400
- for fertilized 25-200
- for grass 5-90
Productivity ha/h 4.9-6.5
Hopper capacity: dm3
- for seed material 1000
- for fertilized 500
-for grass 130
Overall dimensions mm 6750x2950x3200

It is aggregated with hp class tractors. That's 80
Mass kg 1420
